Rear Side Door Window Replacement

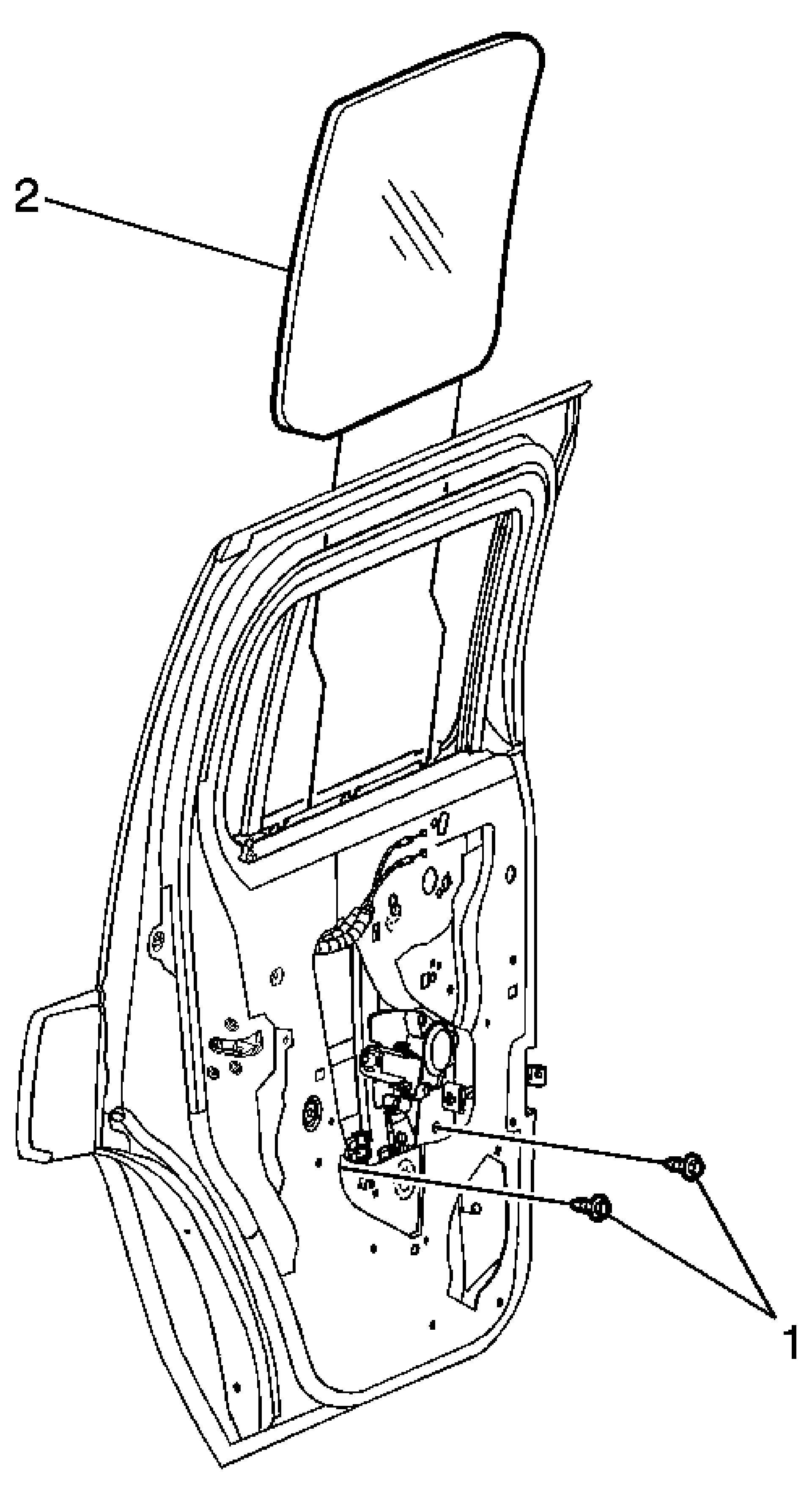

Fig 1: Window Replacement - Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Position the window about half way down in the door. Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the side door window outer sealing strip. Refer to Rear Door Window Belt Outer Sealing Strip Replacement .
1	Bolt, Rear Side Door Window to Regulator (Qty: 2) Tip: Tilt the window inward and remove through the outside of the side door window opening. Tighten: 10 N.m (89 lb in)
2	Window, Rear Door Body Side

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Position the window about half way down in the door.
Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
Remove the side door window outer sealing strip. Refer to Rear Door Window Belt Outer Sealing Strip Replacement .

Bolt, Rear Side Door Window to Regulator (Qty: 2)
Tip: Tilt the window inward and remove through the outside of the side door window opening.

Tighten: 10 N.m (89 lb in)

Window, Rear Door Body Side
