Installation Procedure

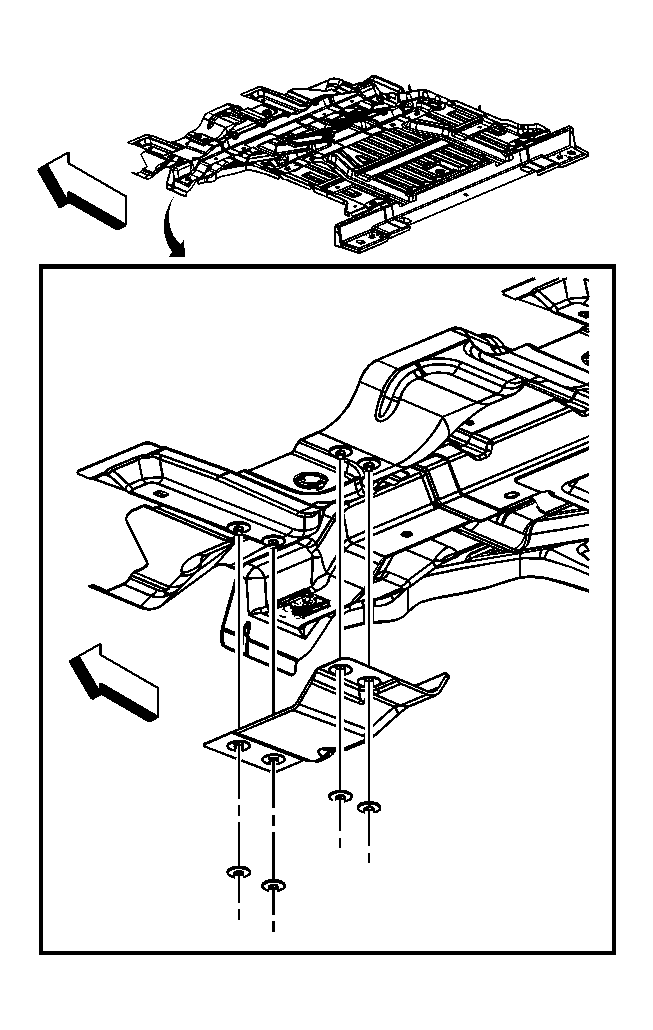

    Fig 1: View Of Exhaust Pipe Heat Shield At Floor Panel
    GM1560123Courtesy of GENERAL MOTORS CORP.
  1. Position the exhaust pipe heat shield to the floor panel studs.
    2. NOTE: Refer to Fastener Notice .
  2. Install the nuts securing the heat shield to the floor panel.

    Tighten:  Tighten the nuts to 9 N.m (80 lb in).

  3. Lower the vehicle.
