Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

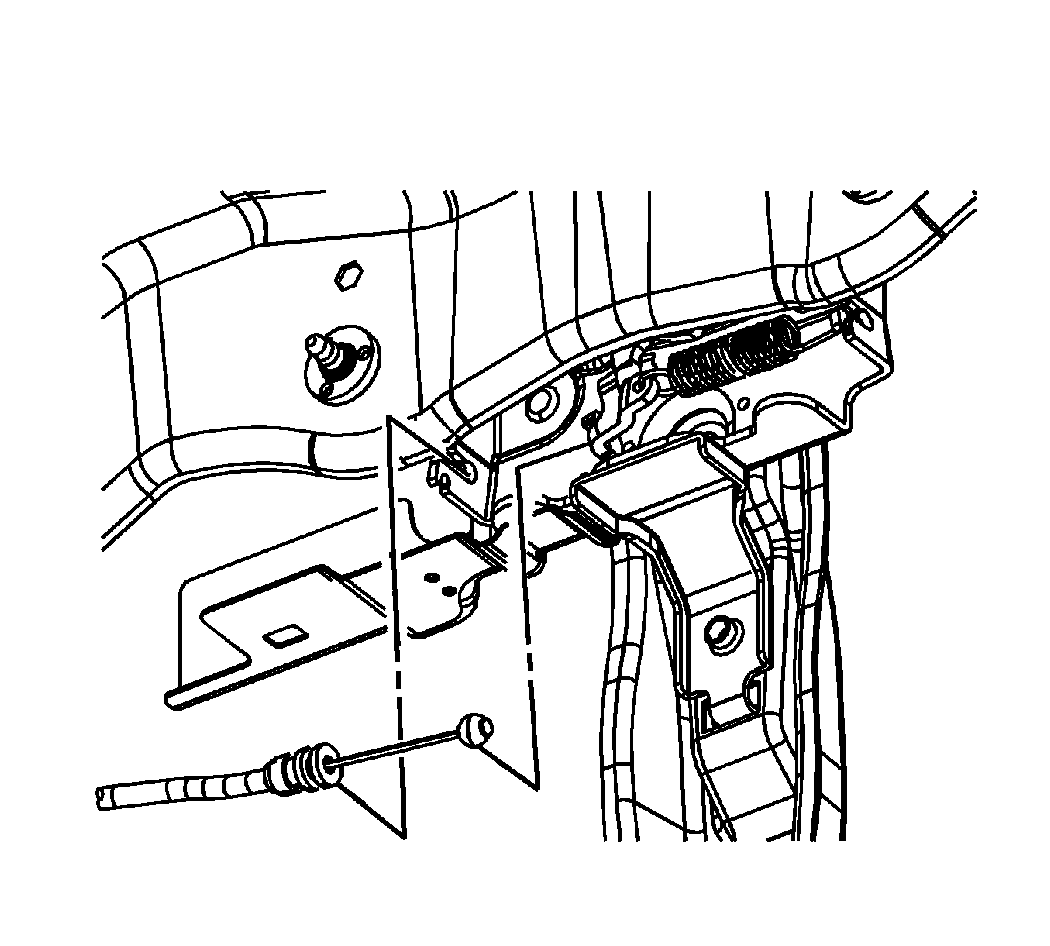

    Fig 1: View Of Hood Latch Cable
    GM1372561Courtesy of GENERAL MOTORS CORP.
  1. Connect the hood latch cable to the latch.

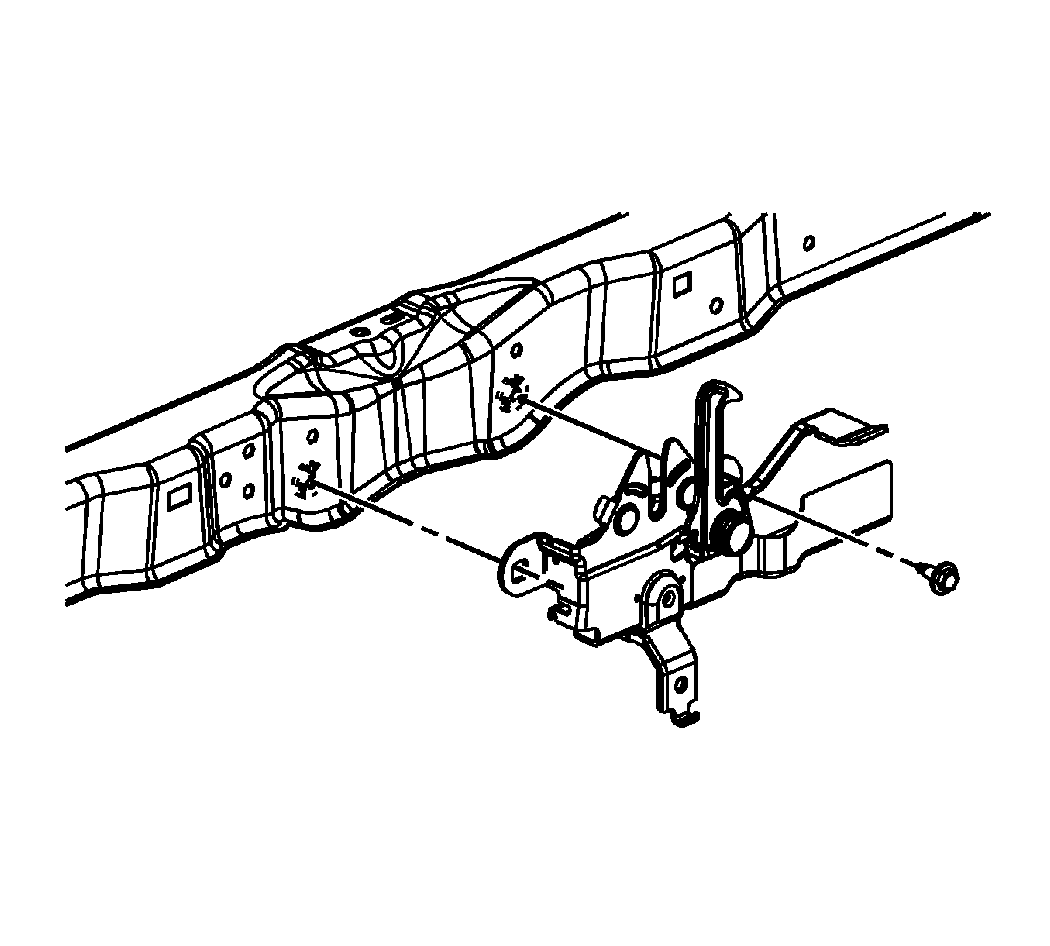

    2. Fig 2: View Of Hood Latch
    GM1313586Courtesy of GENERAL MOTORS CORP.
  2. Position the latch to the previously marked location on the radiator support.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts which retain the latch to the radiator support.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

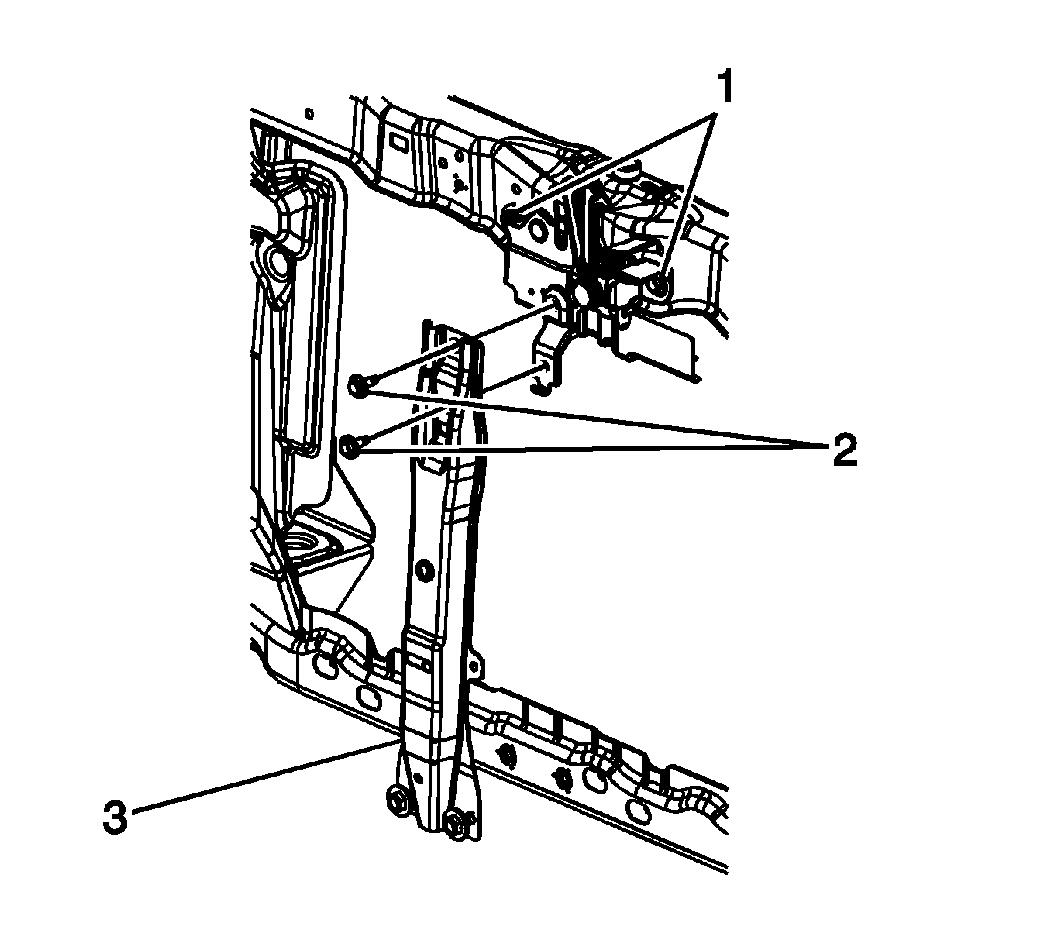

    4. Fig 3: View Of Hood Latch Support & Bolts
    GM1372815Courtesy of GENERAL MOTORS CORP.
  4. Install the hood latch support (3).
  5. Install the bolts which retain the latch support.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  6. Inspect the latch for proper operation before closing the hood.
  7. Inspect the alignment of the latch to the hood striker. Adjust the latch, if necessary. Refer to Hood Latch Adjustment  .
  8. Install the grille. Refer to Grille Replacement in Exterior Trim.
