Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the endgate hinge to the endgate. Refer to Hinge Replacement - Endgate Lower - Endgate Side  .
  2. Install the endgate latch assemblies. Refer to Latch/Support Cable Assembly Replacement - Endgate  .
  3. Install the endgate handle. Refer to Handle Replacement - Endgate  .
  4. Install the endgate cover. Refer to Endgate Cover Replacement  .
    5. Fig 1: View Of Endgate Side Hinge & Body Side Hinge (Left Side)
    GM1337144Courtesy of GENERAL MOTORS CORP.
  5. With the aid of an assistant, slide the endgate hinge onto the left side body side hinge.

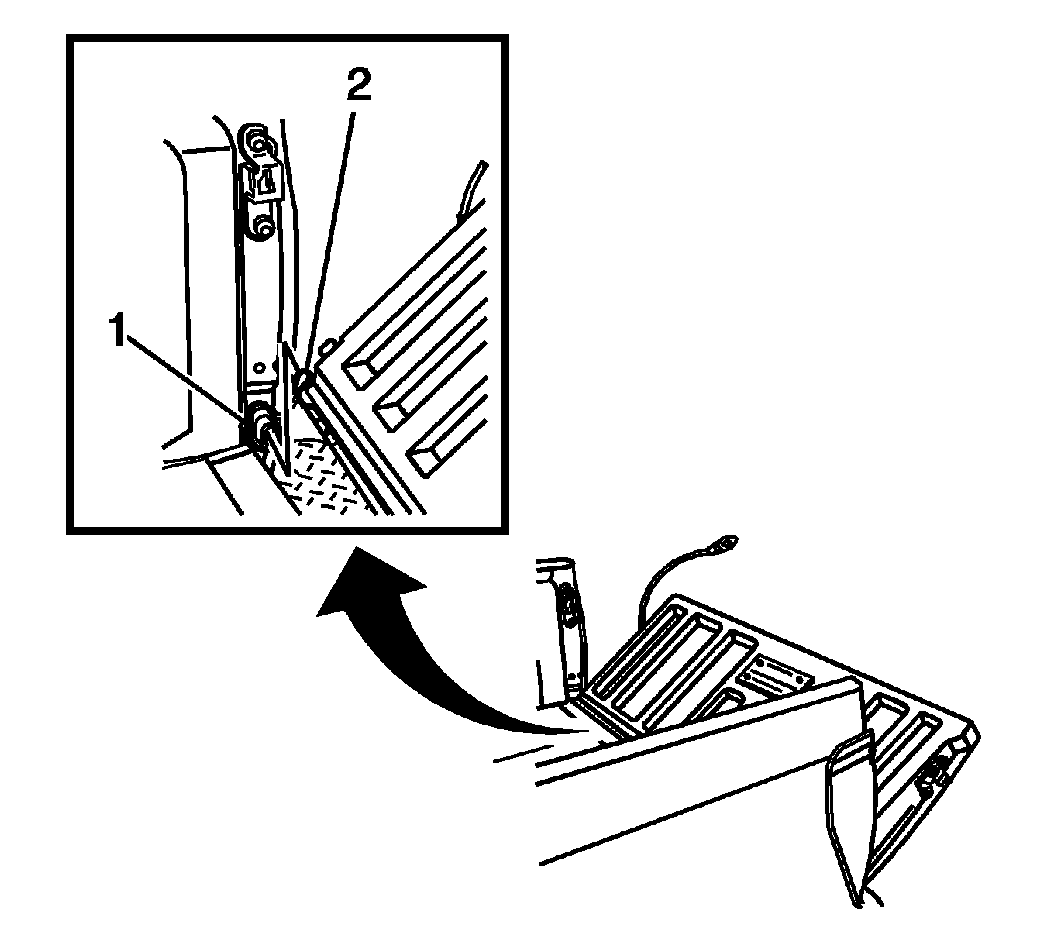

    6. Fig 2: View Of Endgate Side Hinge & Body Side Hinge (Right Side)
    GM1337146Courtesy of GENERAL MOTORS CORP.
  6. Install the endgate to the right body side hinge by holding the endgate at a 45 degree angle and lowering the endgate hinge (2) onto the body side hinge (1).
    7. Fig 3: View Of Endgate Support Cables
    GM1245392Courtesy of GENERAL MOTORS CORP.
  7. Install the support cables (1) onto the endgate striker bolt heads by inserting the keyhole slots over the bolt head and sliding the cable rearward.
  8. Close the endgate.
