Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Latch/Support Cable Assembly
    GM1245387Courtesy of GENERAL MOTORS CORP.
  1. Install the latch/support cable assembly to the endgate, ensuring the latch rod is oriented correct to the endgate handle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts retaining the latch assembly to the endgate.

    Tighten:  Tighten the latch/support cable assembly bolts to 25 N.m (18 lb ft).

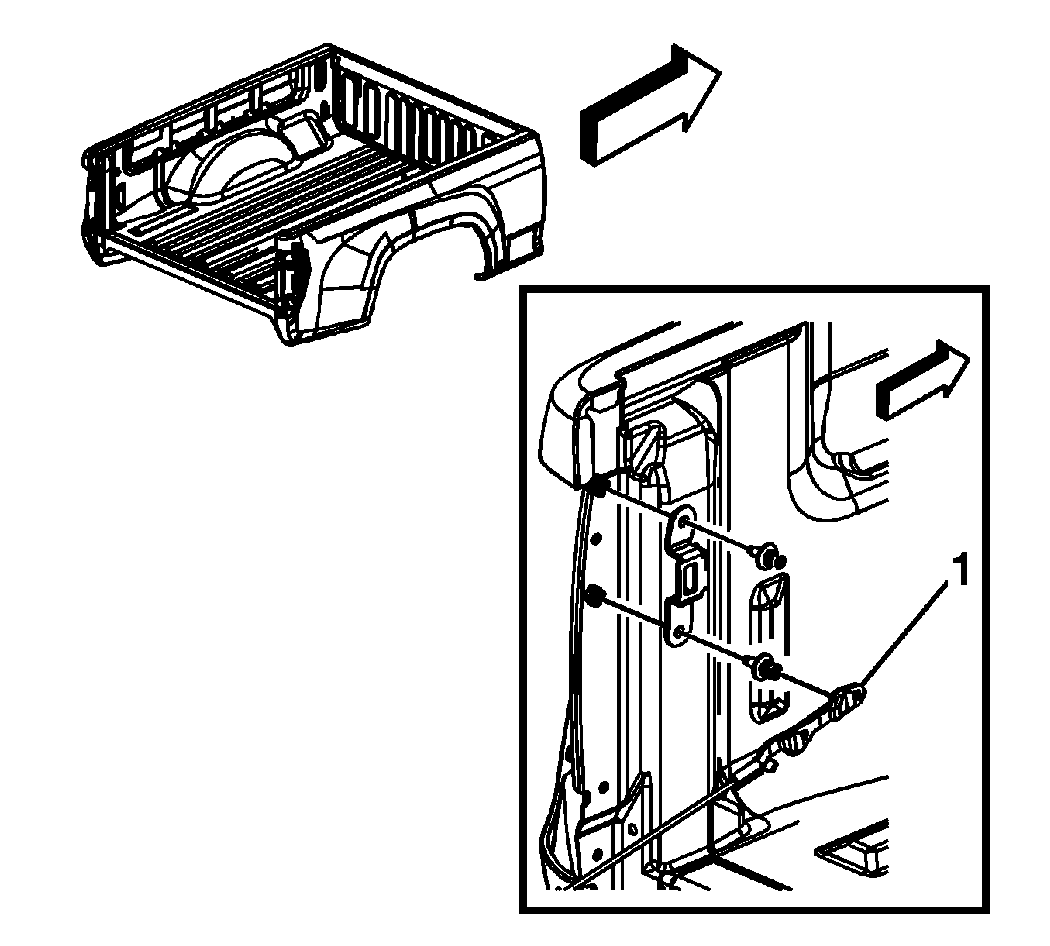

    3. Fig 2: View Of Endgate Support Cables
    GM1245392Courtesy of GENERAL MOTORS CORP.
  3. Install the support cable (1) onto the bolt head of the endgate striker bolt.

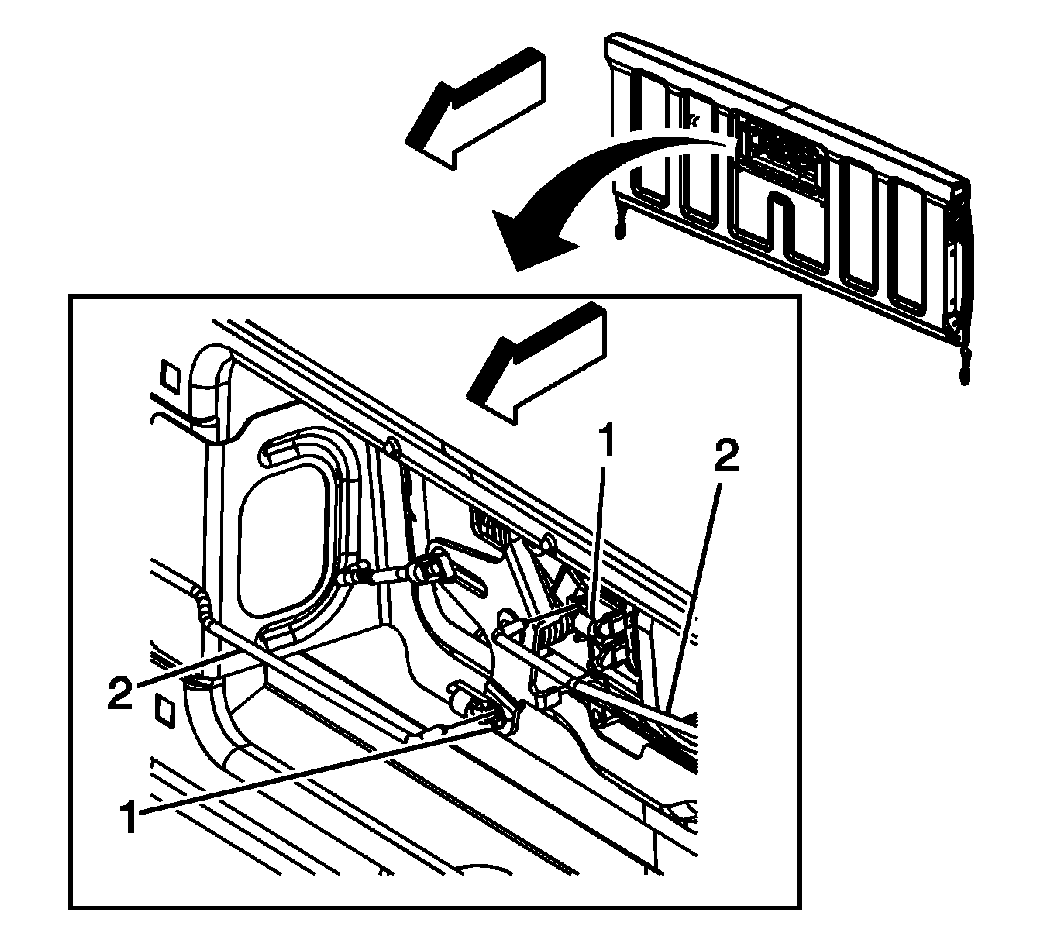

    4. Fig 3: View Of Endgate Latch Rods & Retaining Clips
    GM1245380Courtesy of GENERAL MOTORS CORP.
  4. Install the latch rods (2) into the retaining clips (1).
  5. Connect the clips (1) retaining the latch rods (2) to the endgate handle.
  6. Install the endgate cover. Refer to Endgate Cover Replacement  .
  7. Close the endgate.
