HVAC Component Views

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Instrument Panel Cluster (IPC)
3	Hazard Switch
4	Accessory Switch
5	Ambient Light Sensor
6	Radio
7	Auxiliary Power Outlet 2
8	Auxiliary Power Outlet 1
9	HVAC Control Module
10	Headlamp and Panel Dimmer Switch

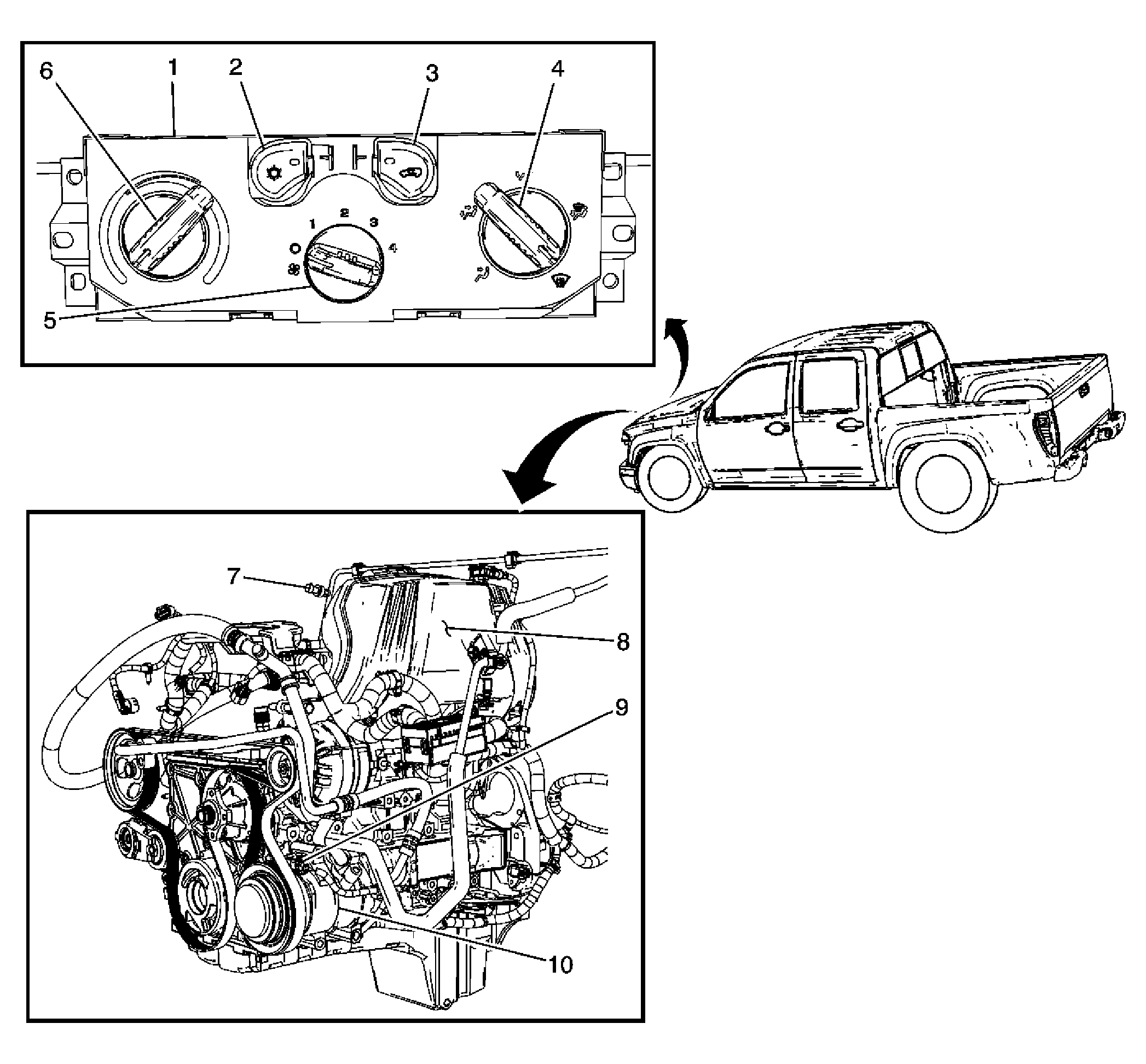

Fig 2: HVAC Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module
2	A/C Request
3	Recirculation Mode
4	Mode Control
5	Blower Speed Control
6	Temperature Control
7	A/C Refrigerant Pressure Sensor
8	Engine (3.5L Shown)
9	A/C Compressor Clutch (C60)
10	A/C Compressor

Fig 3: HVAC Module Assembly Subsystem Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Module Assembly
2	Evaporative Temperature Sensor (C60)
3	C203
4	Recirculation Actuator (C60)
5	Blower Motor
6	Blower Motor Resistor Assembly
