Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

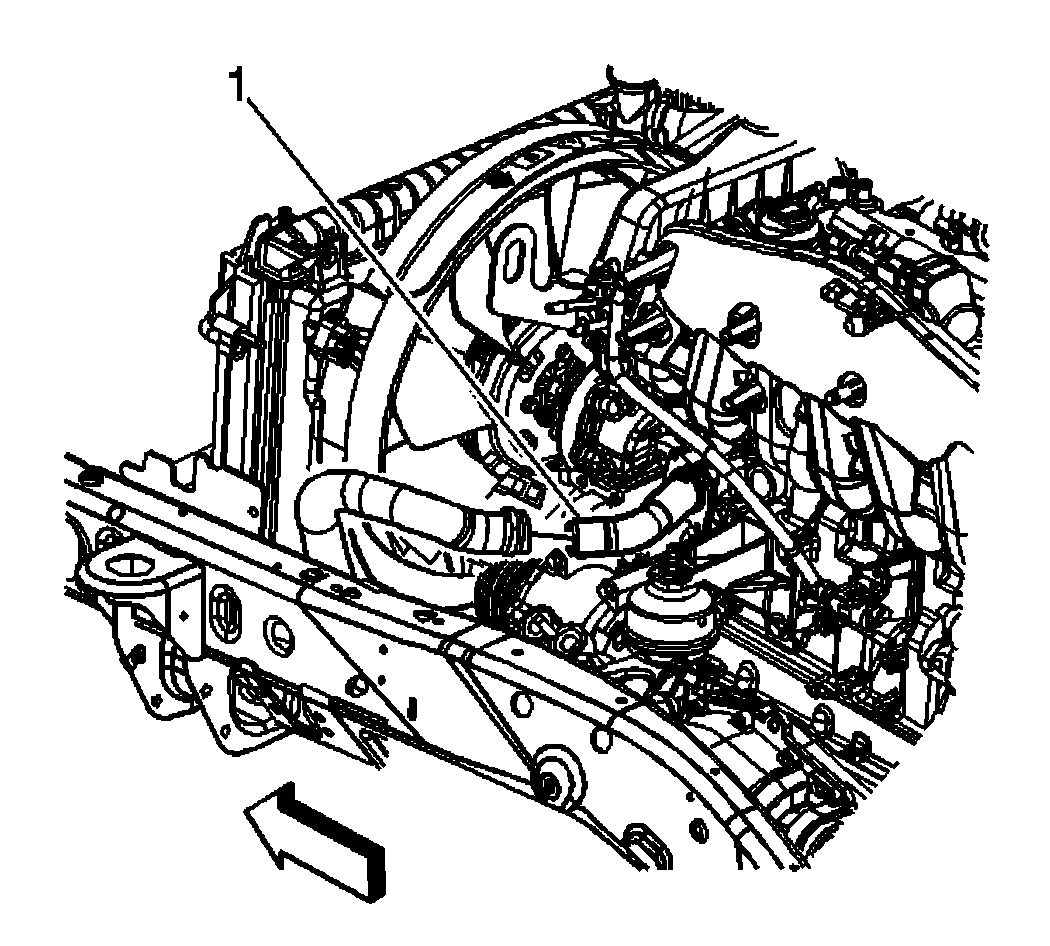

Fig 1: View Of Radiator Hose

Courtesy of GENERAL MOTORS CORP.

Install the inlet radiator hose (1) to the radiator.
Using J 38185 reposition the inlet radiator hose clamp to the radiator.
Lower the vehicle.

Fig 2: Locating Thermostat Housing

Courtesy of GENERAL MOTORS CORP.

Install the inlet radiator hose to the thermostat (1).
Using J 38185 reposition the inlet radiator hose clamp to the thermostat housing.
Fill the cooling system. Refer to Draining and Filling Cooling System .
