Installation Procedure

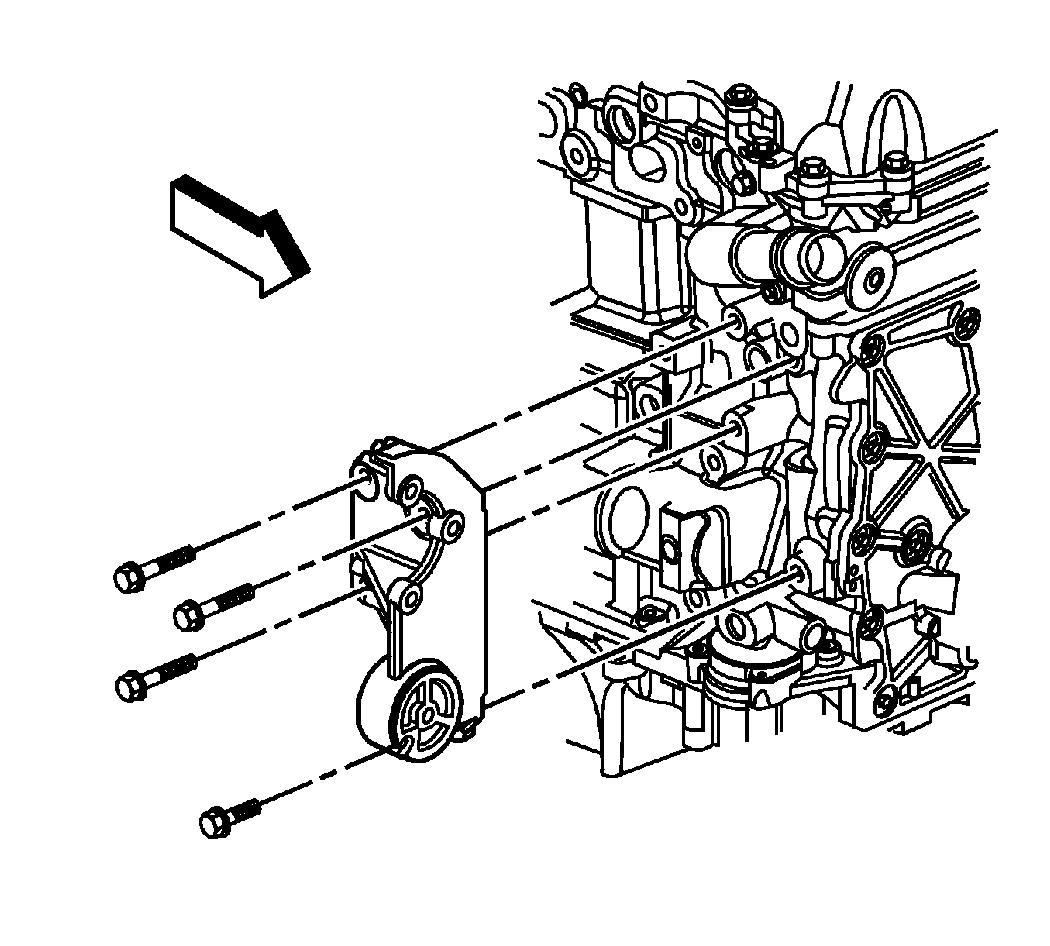

    Fig 1: Removing/Installing Power Steering Pump Bracket
    GM1201382Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering pump bracket.
    2. NOTE: Refer to Fastener Notice .
  2. Install the power steering pump bracket bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  3. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
  4. Install the power steering pump. Refer to Power Steering Pump Replacement (LLR) .
