Removal Procedure

    Fig 1: Midgate Inner Panel
    GM1412513Courtesy of GENERAL MOTORS CORP.
  1. Remove the midgate inner panel. Refer to Midgate Inner Panel Replacement .
  2. Disconnect the electrical connector from the midgate latch release switch.

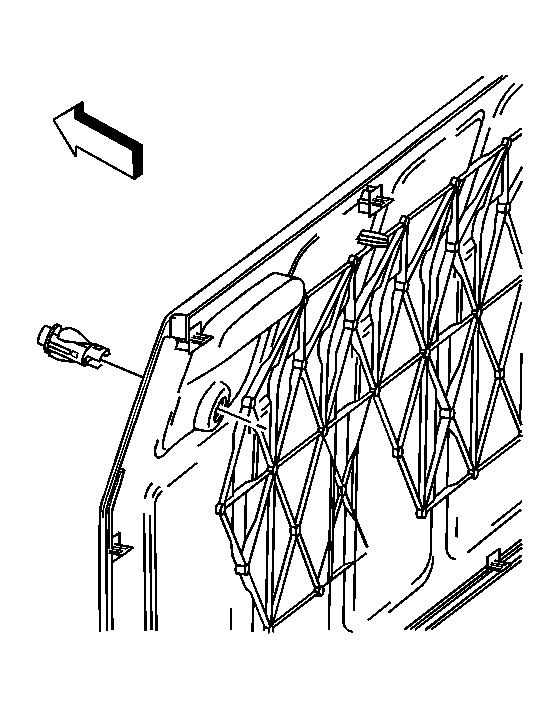

    3. Fig 2: Midgate Latch Switches
    GM1412510Courtesy of GENERAL MOTORS CORP.
  3. Depress the retaining tabs on the latch release switch to release the switch from the inner trim panel.
  4. Remove the latch release switch from the midgate inner panel.
