Analog Clock

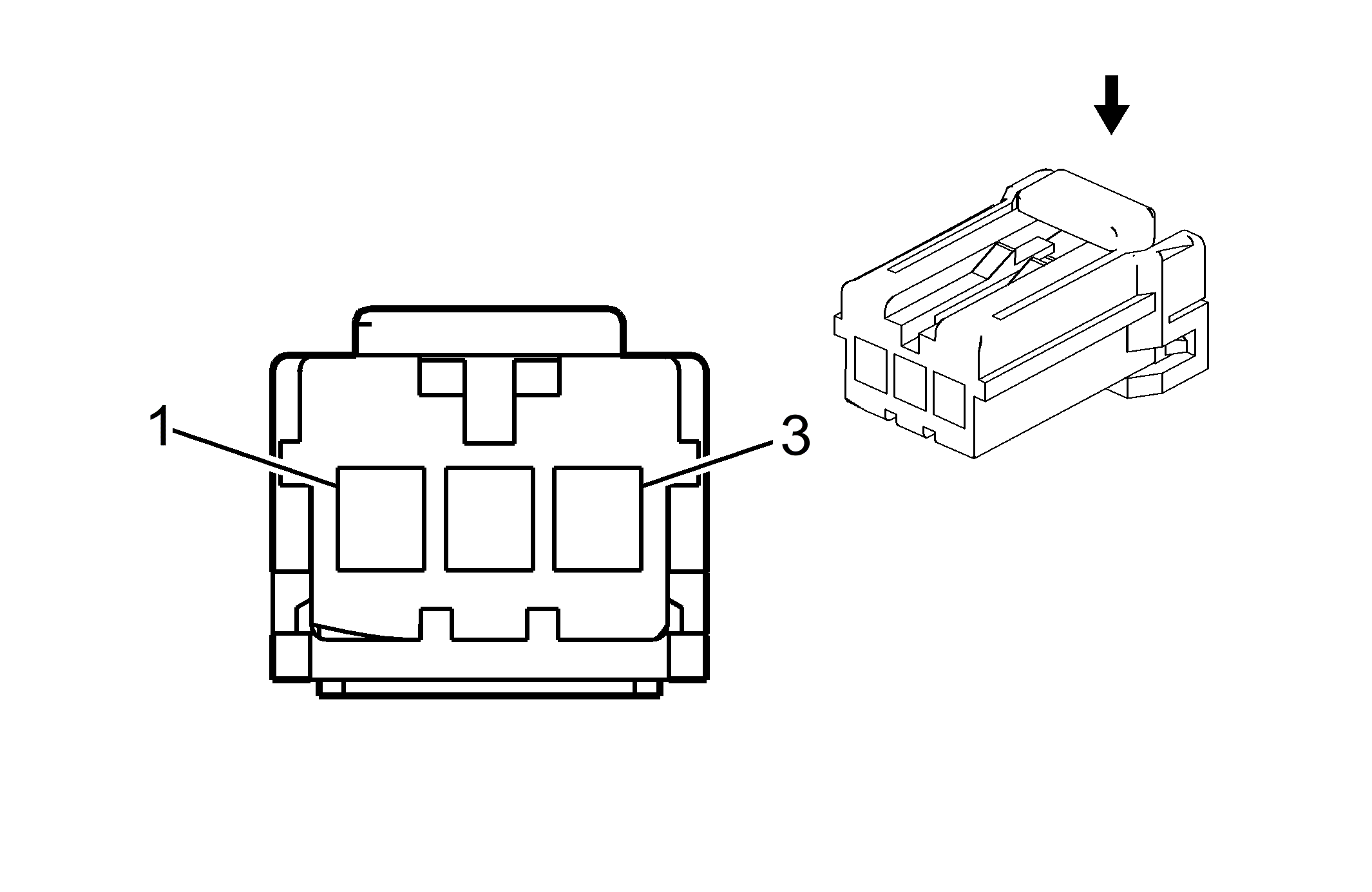

Fig 1: Analog Clock Connector End View
GM1664516Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 174921-1
  • Service: 88953272
  • Description: 3-Way F .070 Multilock Series (BK)
Terminal Part Information
  • Terminal/Tray: 173630-7/7
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-33 (YE)
Pin Wire Circuit Function
1 0.5 RD/WH 340 Battery Positive Voltage
2 0.5 BK 1050 Ground
3 0.35 YE 6817 LED Dimming Supply
