Video Display

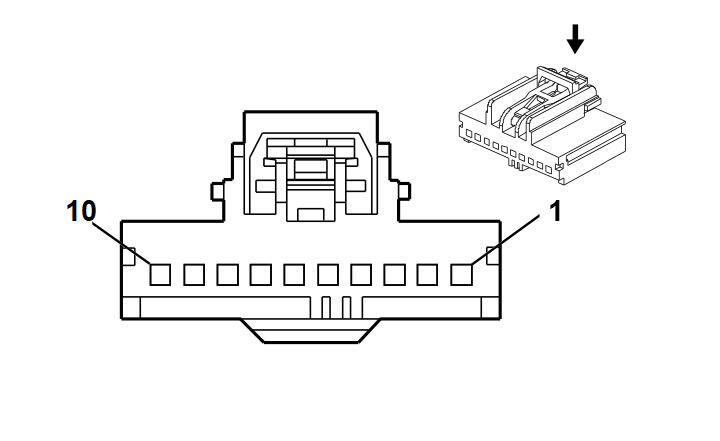

Fig 1: Video Display Connector End View
GM1711011Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-9088-30
  • Service: 89047355
  • Description: 10-Way F Kaizen 0.64 Series (BK)
Terminal Part Information
  • Pins: 1, 2, 6, 7, 9-10
  • Terminal/Tray: 7116-4618-02
  • Core/Insulation Crimp: Pins 1, 2, 8-10 - P/P
  • Core/Insulation Crimp: Pins 6, 7 - 9/9
  • Release Tool/Test Probe: See Terminal Repair Kit
Pin Wire Circuit Function
1 0.35 D-GN 6975 DVD Video Signal (+)
2 0.35 WH/BK 5335 DVD Video Signal (-)
6 0.5 BK 2550 Ground
7 0.5 RD/WH 3240 Battery Positive Voltage
8 0.35 WH 7066 Remote Enable
9 0.35 PK/BK 5844 Video Bright Signal
10 0.35 L-GN/BK 5845 Video Mode Signal
