Steering Linkage Shock Absorber Replacement

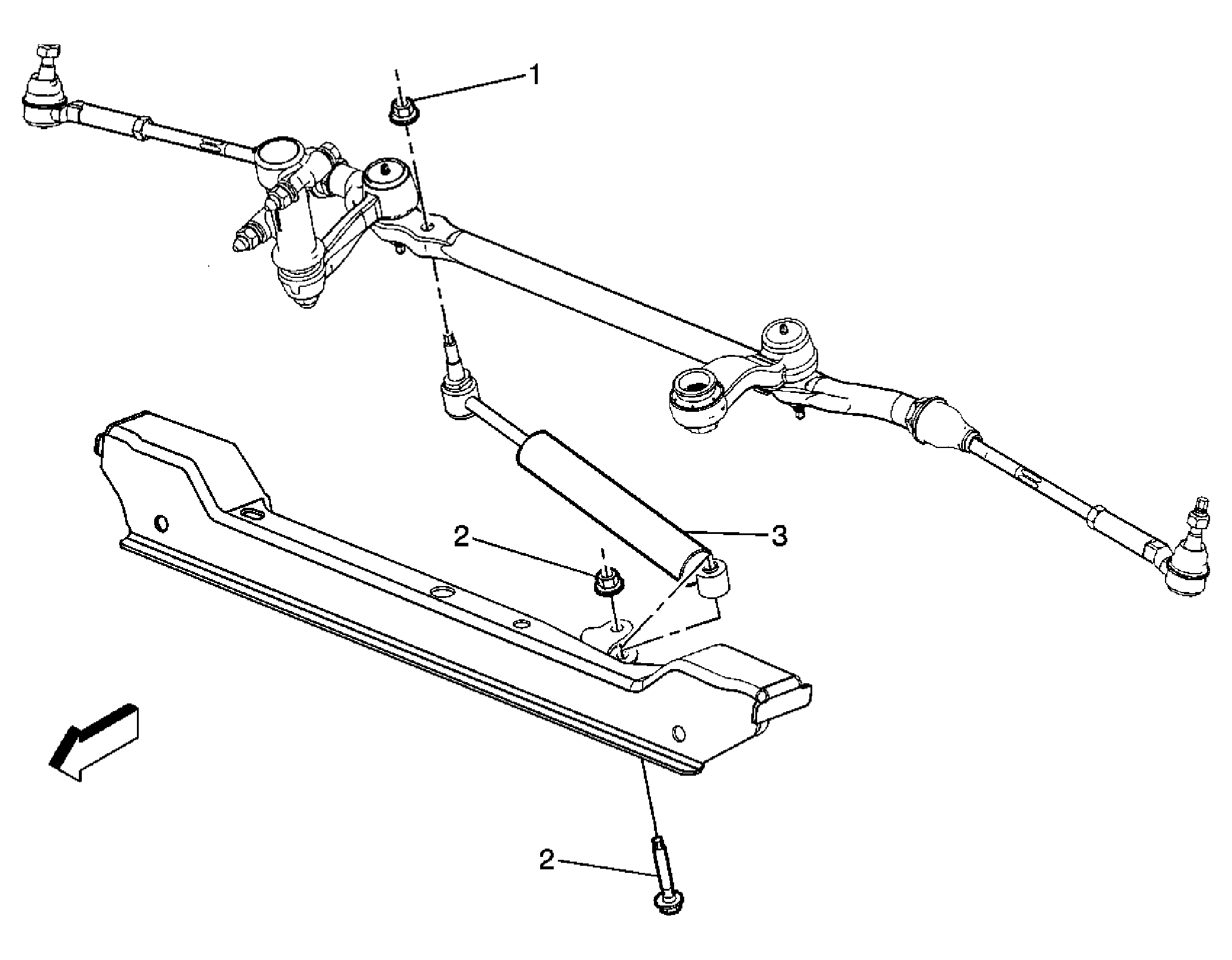

Fig 1: View Of Steering Linkage Shock Absorber Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the engine protection shield. Refer to Engine Protection Shield Replacement .
1	Steering Linkage Shock Absorber Nut NOTE: Refer to Fastener Notice . Procedure: Separate the steering linkage shock absorber from the relay rod using puller J 24319-B . Tip: Do not reuse the steering linkage shock absorber nut. Tighten: 40 N.m (30 lb ft) Special Tools: J 24319-B Steering Linkage and Tie Rod Puller
2	Steering Linkage Shock Absorber Nut Tip: Do not reuse the steering linkage shock absorber nut. Tighten: 40 N.m (30 lb ft)
3	Steering Linkage Shock Absorber Tip: Use installer J 29193 to seat the steering linkage shock absorber to the relay rod. See Special Tools . Tighten: 32 N.m (24 lb ft) Special Tools: J 29193 Steering Linkage Installer (12 mm). See Special Tools .
