Object Detection Schematics

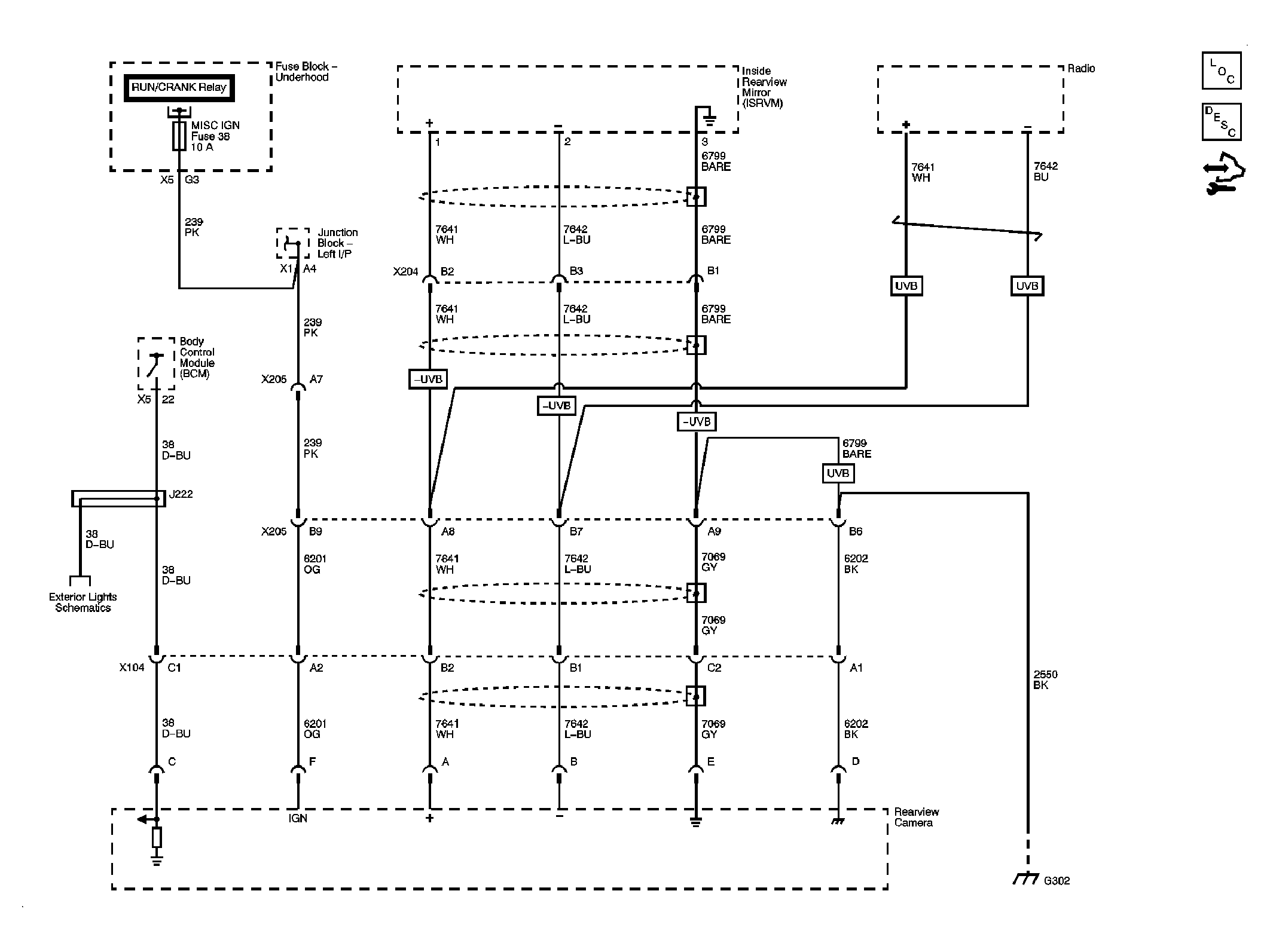

Fig 1: Object Detection Schematic
GM1970724Courtesy of GENERAL MOTORS CORP.
