Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

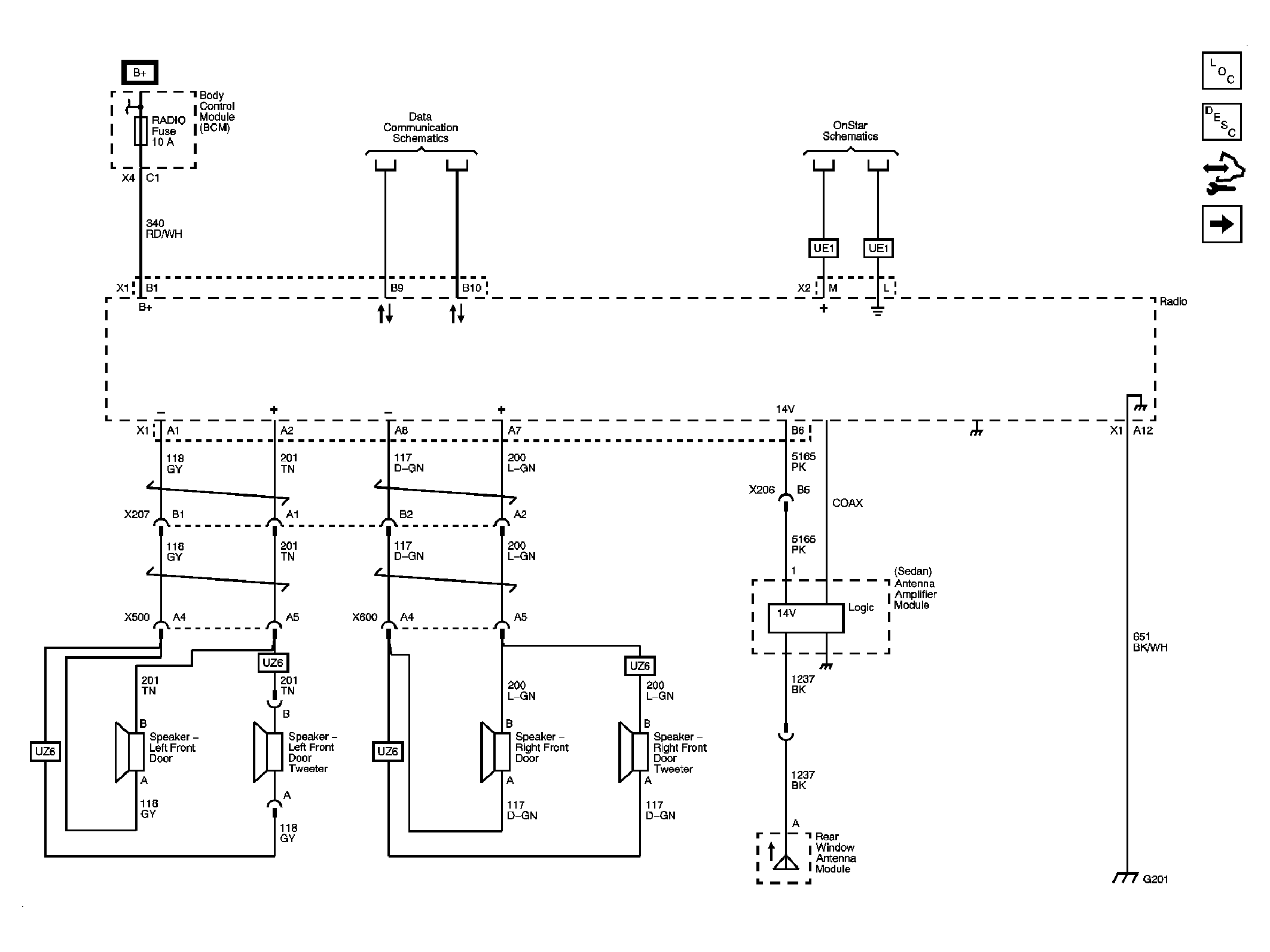

Fig 1: Power, Ground, Front Speakers, Antenna And References - Schematic

GM1891677

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Speakers w/o UK6, U32 Or U2K - Schematic

GM1891679

Courtesy of GENERAL MOTORS CORP.

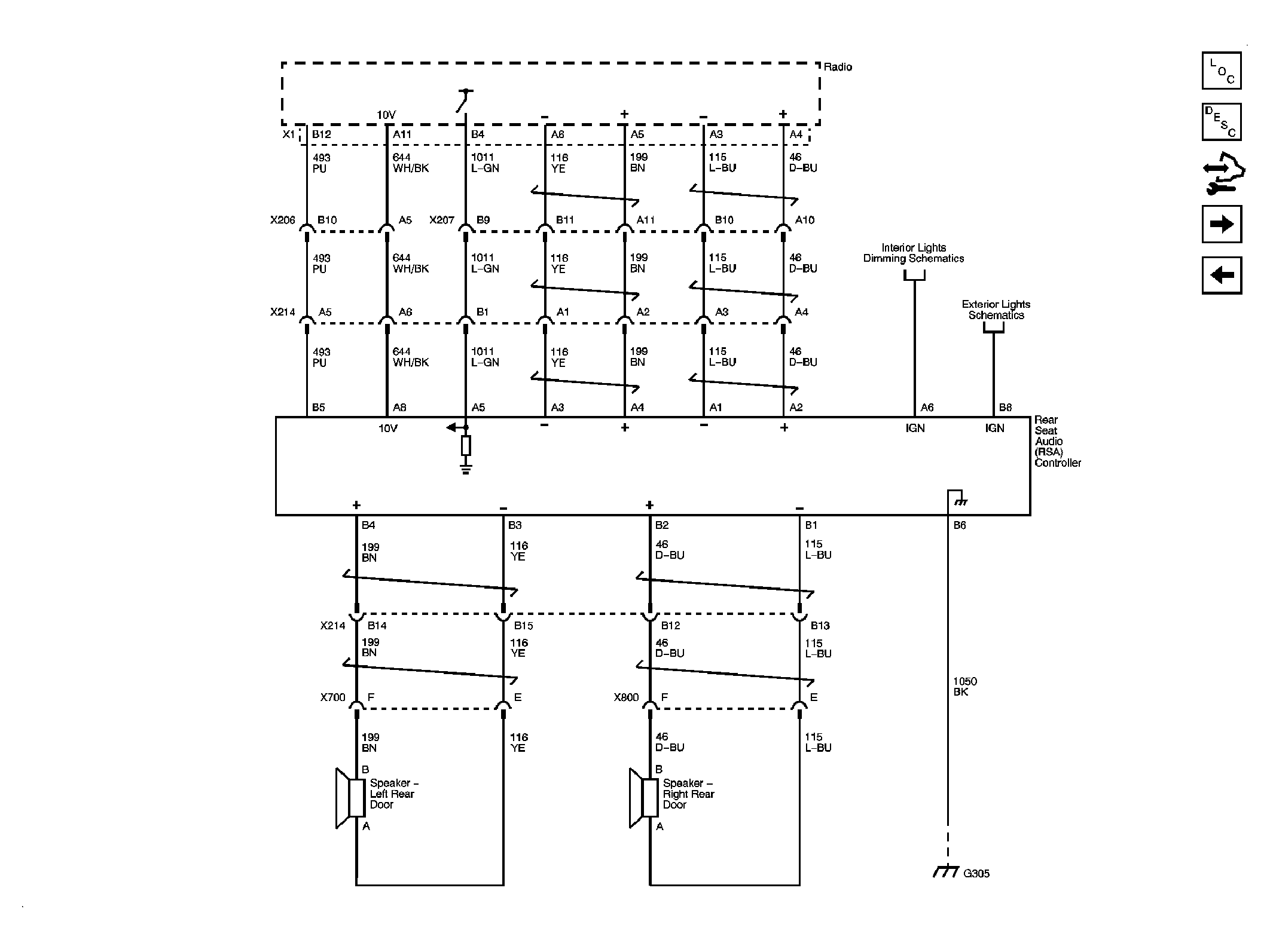

Fig 3: Rear Seat Audio (RSA) Controller - Schematic

GM1891680

Courtesy of GENERAL MOTORS CORP.

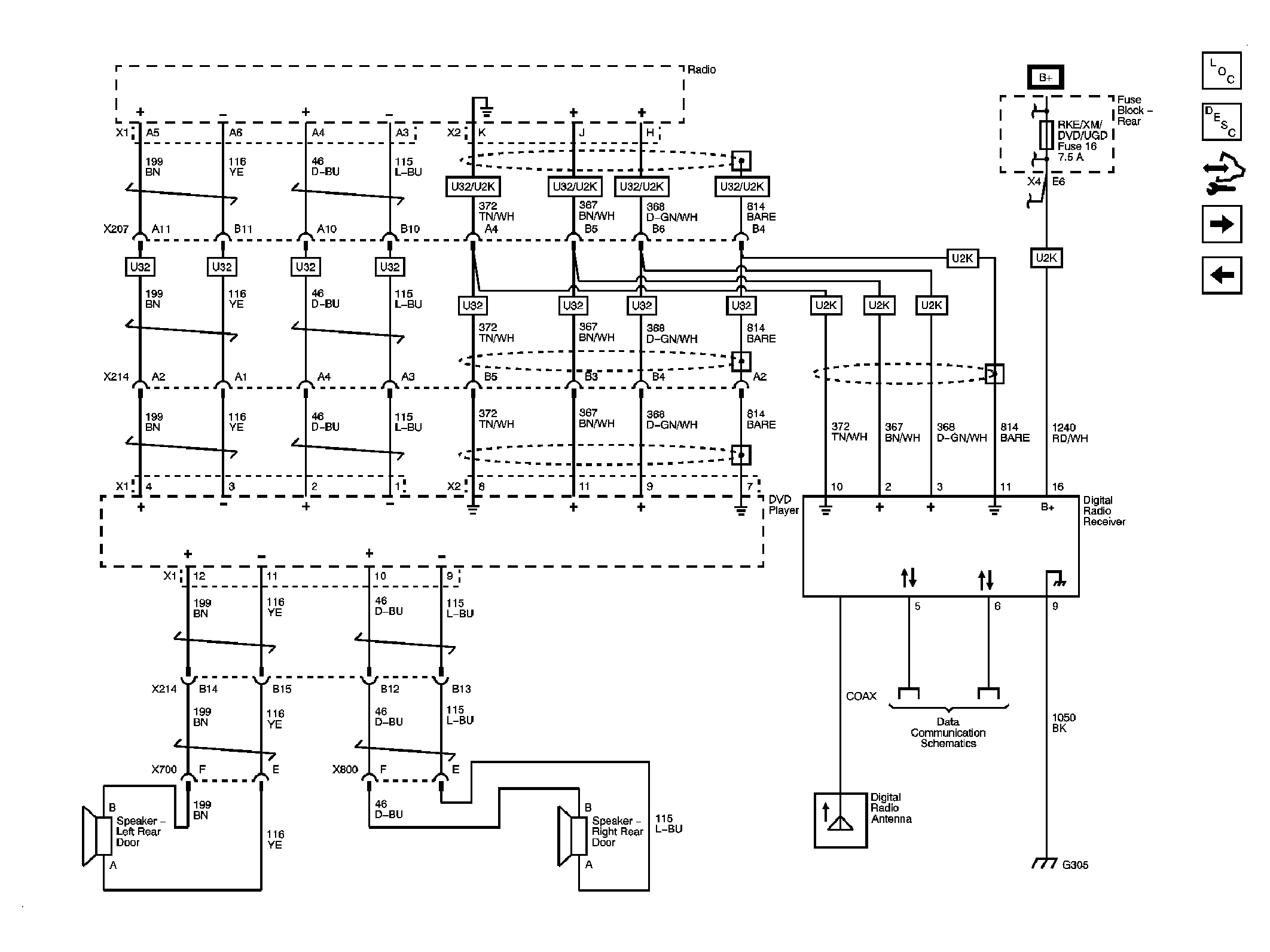

Fig 4: DVD Player And Digital Radio Receiver - Schematic

GM1891681

Courtesy of GENERAL MOTORS CORP.

Fig 5: Redundant Radio Controls (3-Spoke) - Schematic

GM1891683

Courtesy of GENERAL MOTORS CORP.

Fig 6: Redundant Radio Controls (4-Spoke) - Schematic

GM1891685

Courtesy of GENERAL MOTORS CORP.
