Antilock Brake System Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

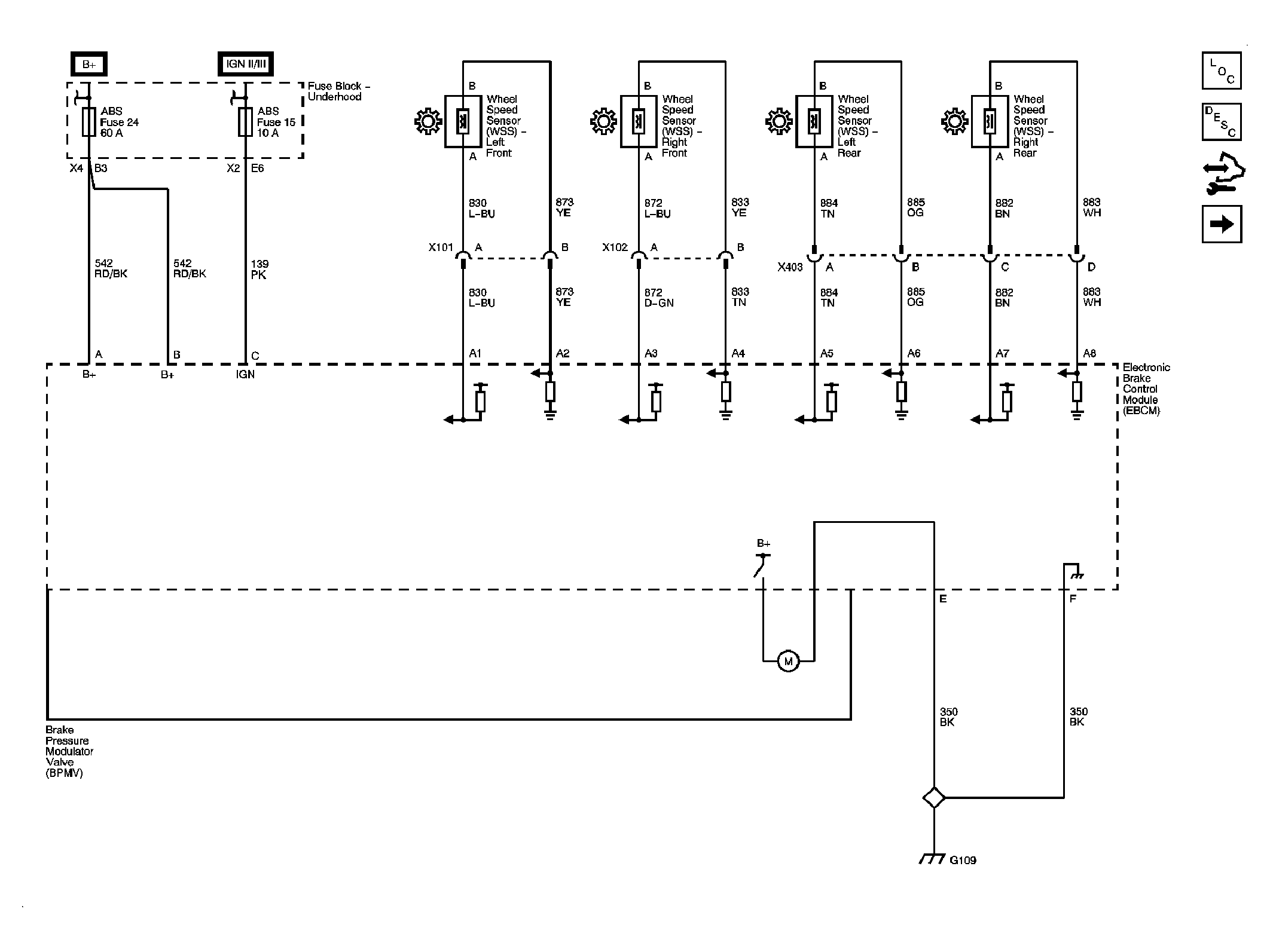

Fig 1: Power, Ground, Brake Pressure Modulator Valve And Wheel Speed Sensors - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Brake Pedal Position Sensor, Data Link Communications And Traction Control Switch - Schematic

Courtesy of GENERAL MOTORS CORP.
