Front of Vehicle/Engine Compartment Component Views

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front Of Vehicle Component Views
GM1719241Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Low Beam - Right
2 Headlamp - High Beam - Right
3 Cellular/Navigation and Digital Radio Antenna (UE1/U2K)
4 Headlamp - High Beam - Left
5 Headlamp - Low Beam - Left
6 Park/Turn Signal Lamp - Left Front
7 Fog Lamp - Left Front (T96)
8 Fog Lamp - Right Front (T96)
9 Park/Turn Signal Lamp - Right Front
Fig 2: Identifying Cooling Fans
GM1265615Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan - Left
2 Cooling Fan - Right
Fig 3: Power And Grounding Component Views - Left Rear of Engine Compartment
GM1264030Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Coolant Level Switch
2 Battery
3 Electronic Brake Control Module (EBCM) (JL9/J67)
4 X101 (JL9/J67)
5 G103 (NV7)
6 Fuse Block - Underhood
7 Powertrain Control Module (PCM) (LX9/L61)/Engine Control Module (ECM)(LZ9)
8 Powertrain Control Module (PCM) X3 (LX9/L61)/Engine Control Module (ECM) C3 (LZ9)
9 Powertrain Control Module (PCM) X2 (LX9/L61)/Engine Control Module (ECM) C2 (LZ9)
10 Powertrain Control Module (PCM) X1 (LX9/L61)/Engine Control Module (ECM) C1 (LZ9)
Fig 4: View Of HVAC Components On Front Impact Bar
GM1265795Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Air Temperature Sensor

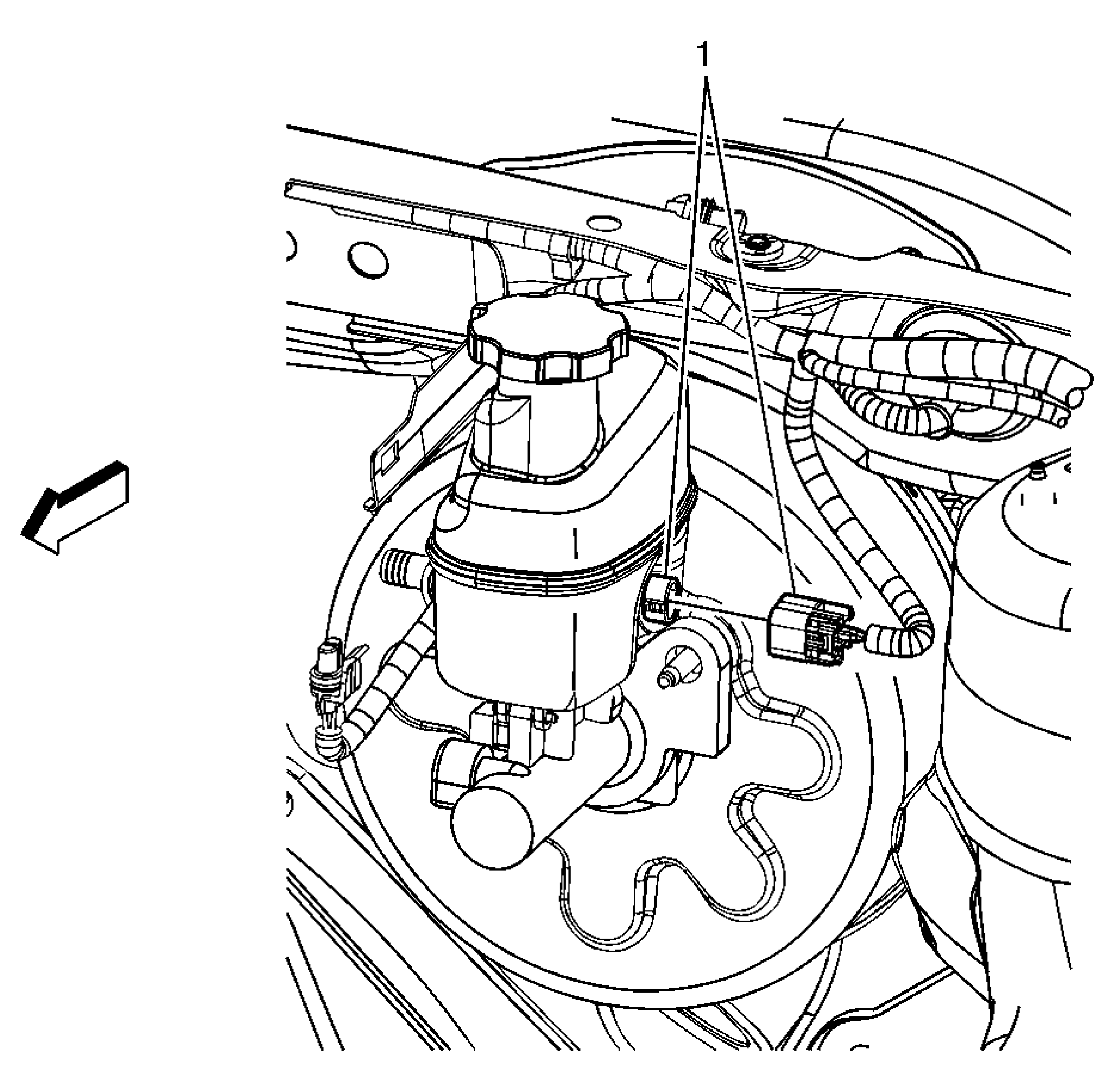

Fig 5: Locating Brake Fluid Level Switch
GM1266789Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Fluid Level Switch
Fig 6: Identifying A/C Refrigerant Pressure Sensor
GM1266783Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X102 (X101 Similar)
2 A/C Refrigerant Pressure Sensor
Fig 7: Locating Windshield Wiper Motor Assembly
GM1266754Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor Assembly
Fig 8: Locating Washer Fluid Level Switch & Washer Fluid Pump
GM1266735Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Washer Fluid Level Switch
2 Windshield Washer Fluid Pump
3 Horn Assembly
Fig 9: View Of Battery, Engine Control Module And Transmission Control Module
GM1832315Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Engine Control Module (ECM)
3 Transmission Control Module (TCM)

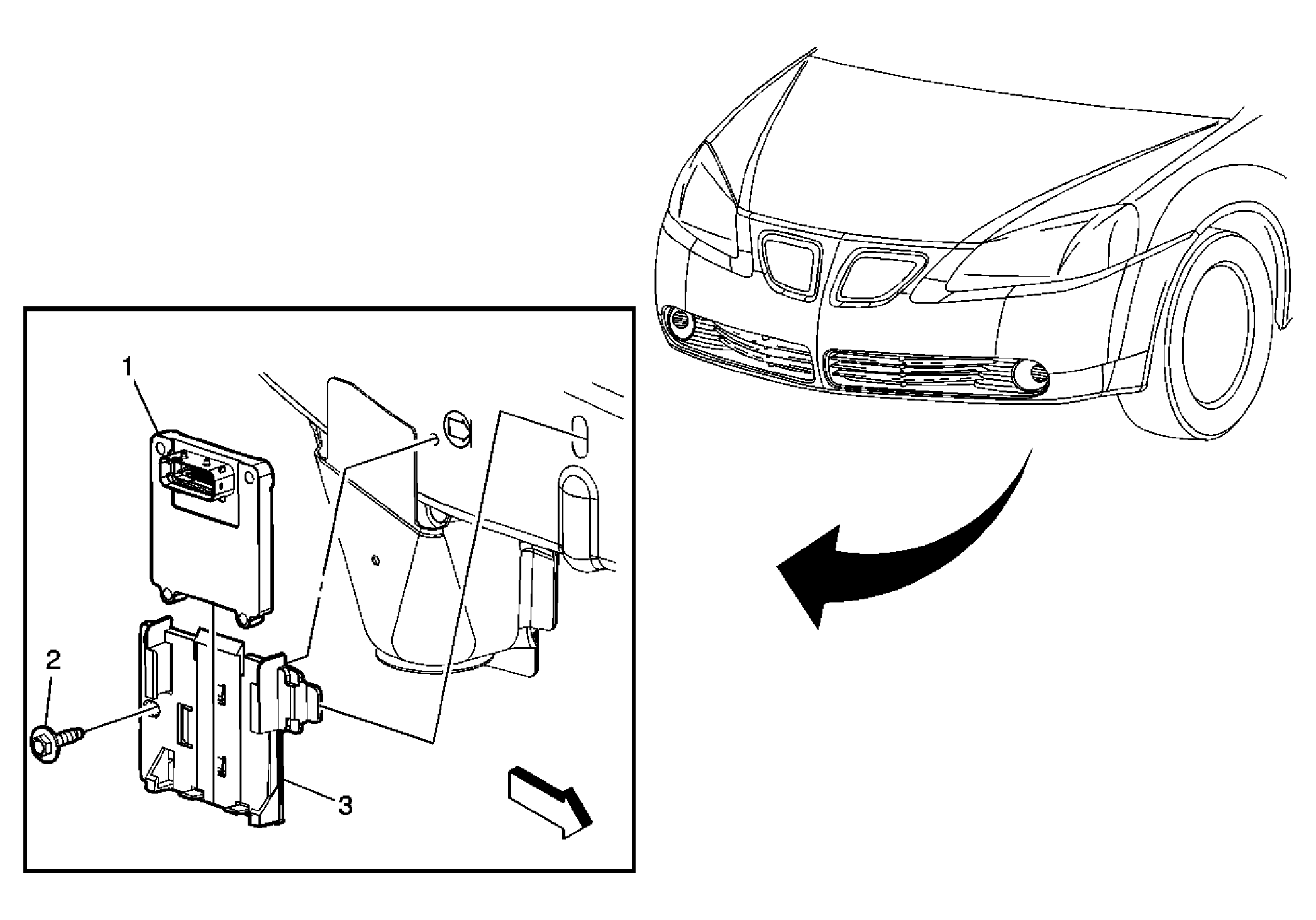

Fig 10: Identifying Transmission Control Module
GM1659135Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Control Module (TCM)
2 Fastener
3 Transmission Control Module (TCM) Bracket
Fig 11: Locating Hood Ajar Switch
GM1265767Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hood Ajar Switch
Fig 12: Locating Inflatable Restraint Front End Sensor -- Right & Left
GM1265832Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Front End Sensor - Right
2 Inflatable Restraint Front End Sensor - Left
Fig 13: View Of Power Steering System Control Module
GM1394460Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Steering Control Module
