Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Rear)

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

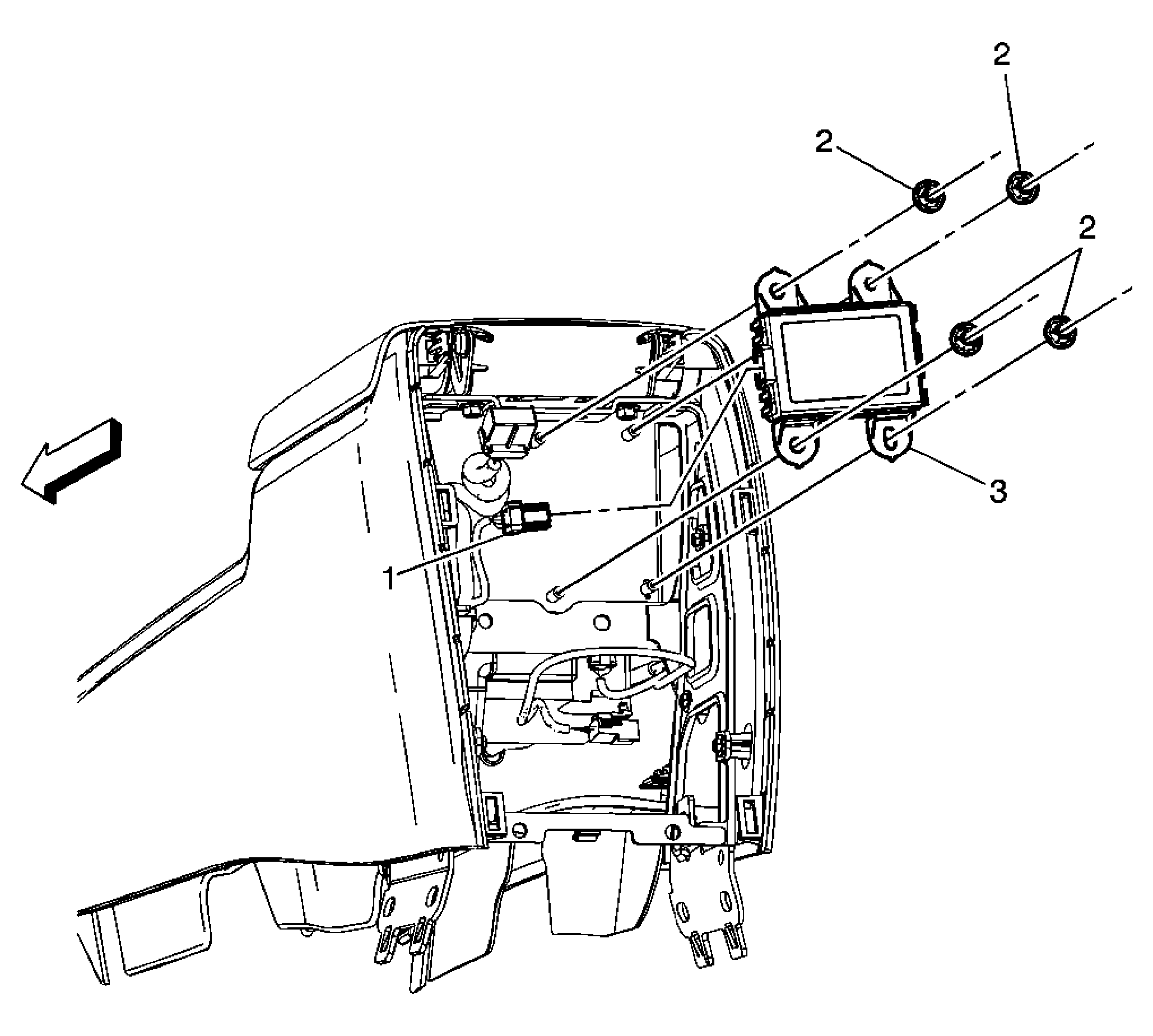

Fig 1: View Of Floor Console Wiring Harness Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove HVAC ducts from the front floor console. Refer to Front Floor Console Cup Holder Replacement Remove the center console end panel. Refer to Center Console End Panel Replacement
1	Front Floor Console Wiring Harness Assembly
2	Ignition Lock Key Transmitter Antenna Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m(18 lb in)
3	Ignition Lock Key Transmitter Antenna Assembly
