Lumbar Switch Replacement

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

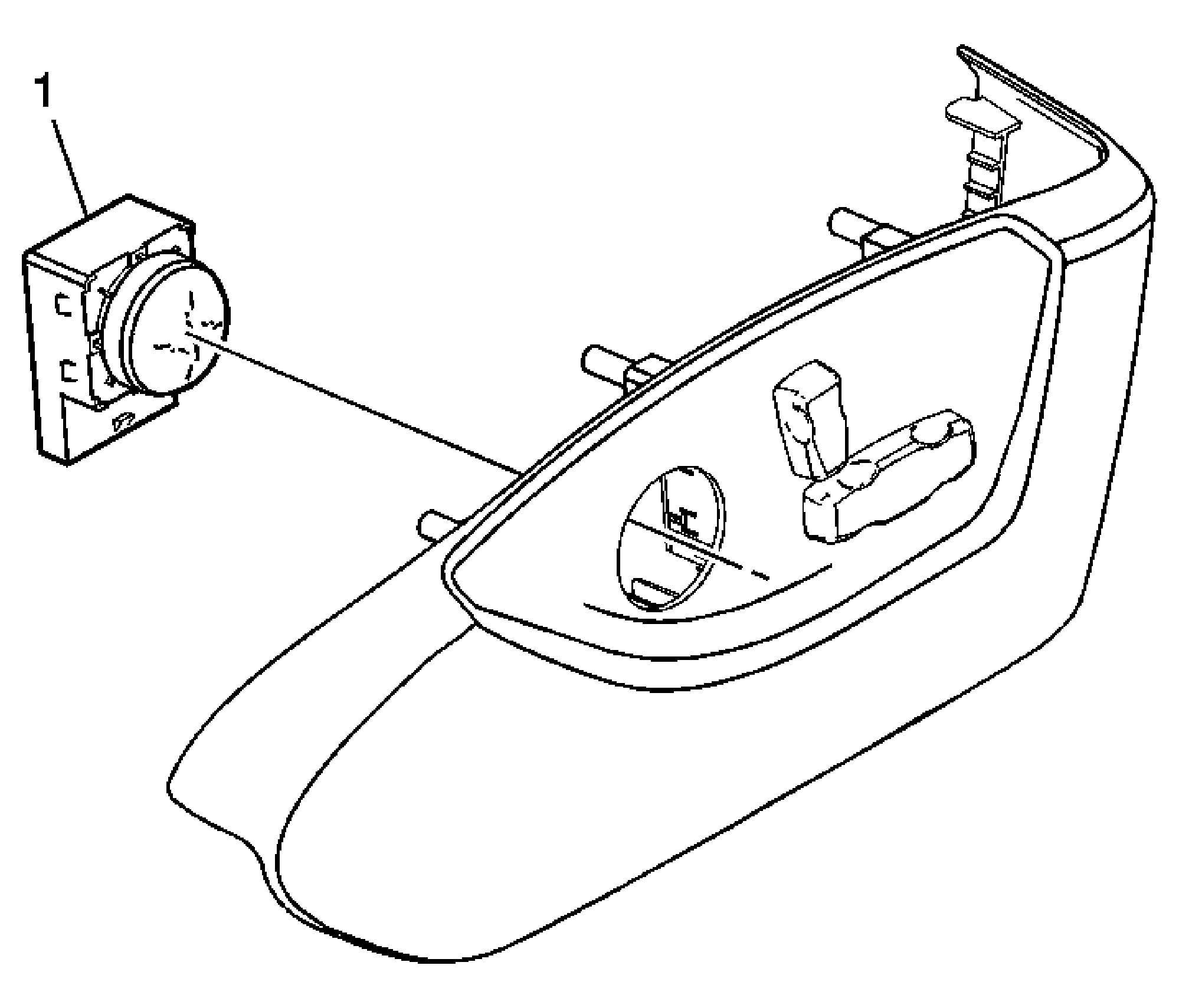

Fig 1: View of Front Seat Lumbar Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the seat adjuster switch bezel. Refer to Driver or Passenger Seat Adjuster Switch Bezel Replacement .
1	Front Seat Lumbar Control Switch Tip: Use a small flat bladed tool to release the lumbar switch from the seat switch bezel.
