Headlamp Switch Replacement

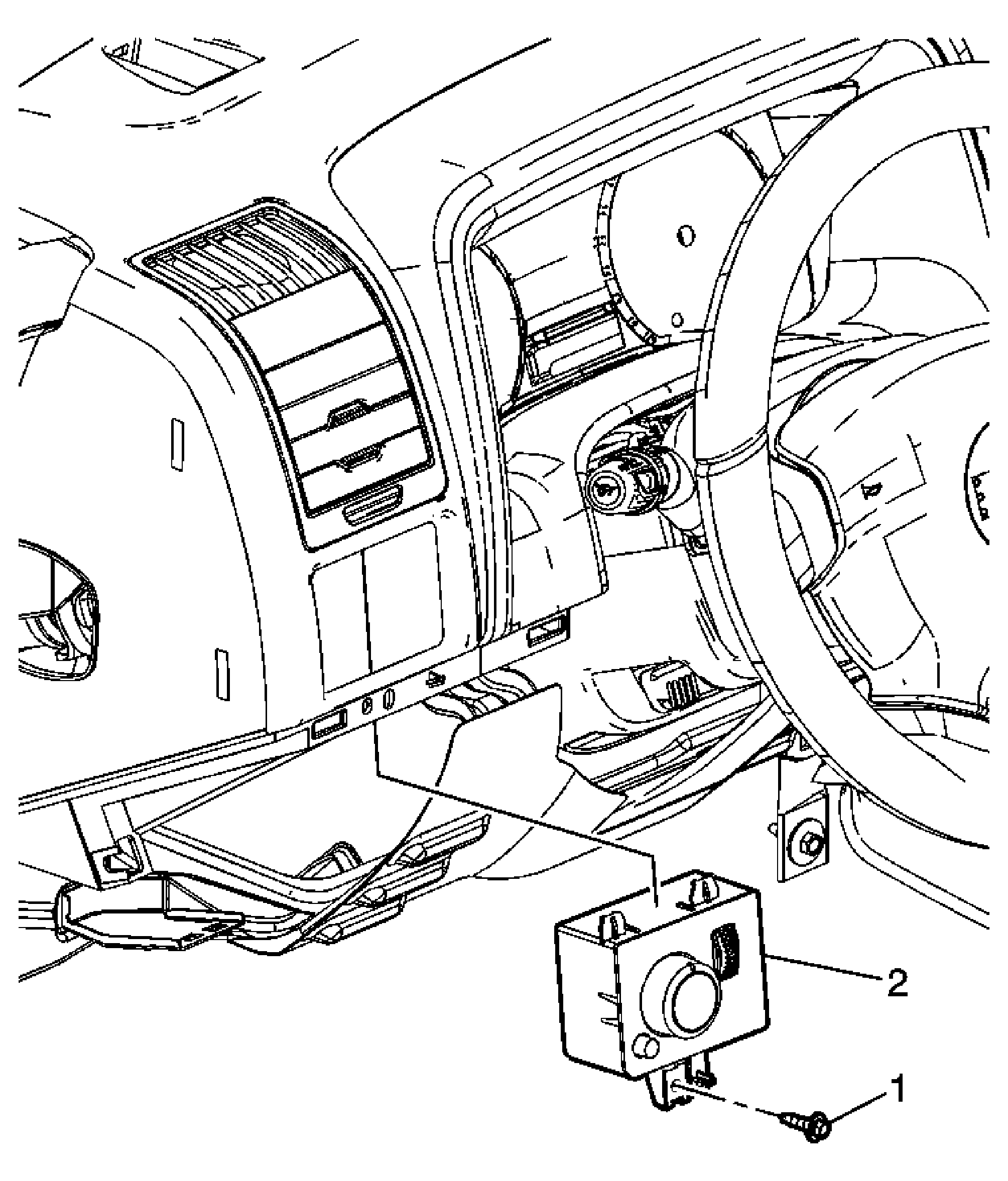

Fig 1: Headlamp Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the left knee bolster panel. Refer to Driver Knee Bolster Replacement (Left Hand Drive) or Driver Knee Bolster Replacement (Right Hand Drive) .
1	Screw, Headlamp Switch Tighten: 2 N.m (18 lb in)
2	Switch Assembly, Headlamp Tip: Disconnect the electrical connector.
