Front Seat Heater Control Module Replacement

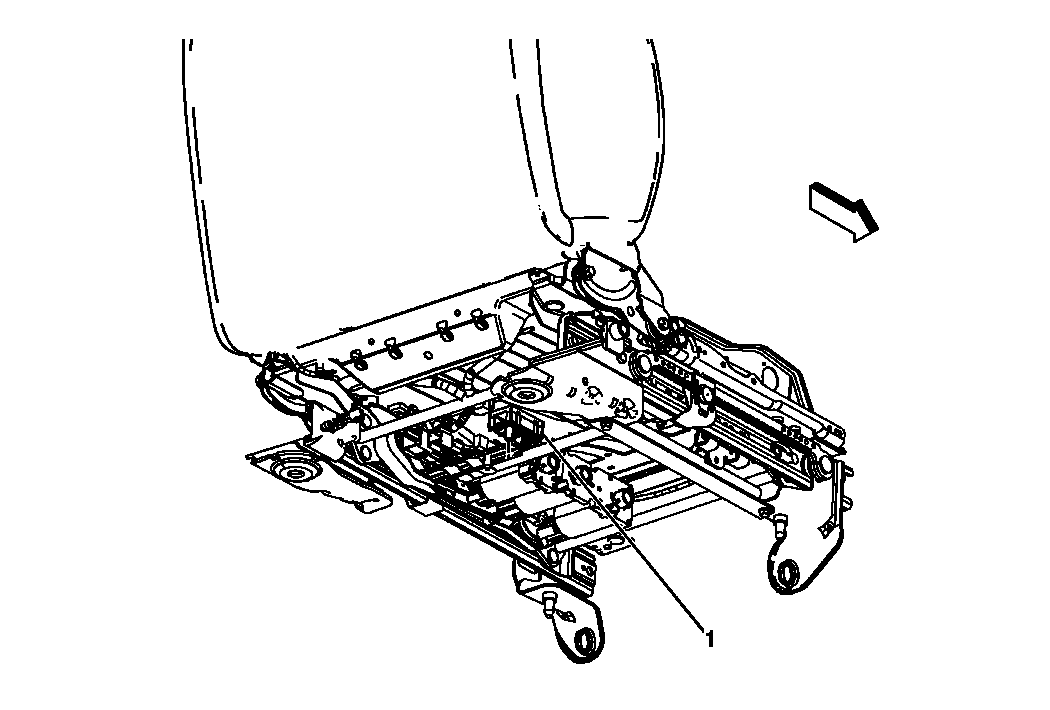

Fig 1: View of Front Seat Heater Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Seat Control Module Assembly Tip:  Disconnect the electrical connector and remove the module from the seat cushion frame.
