Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

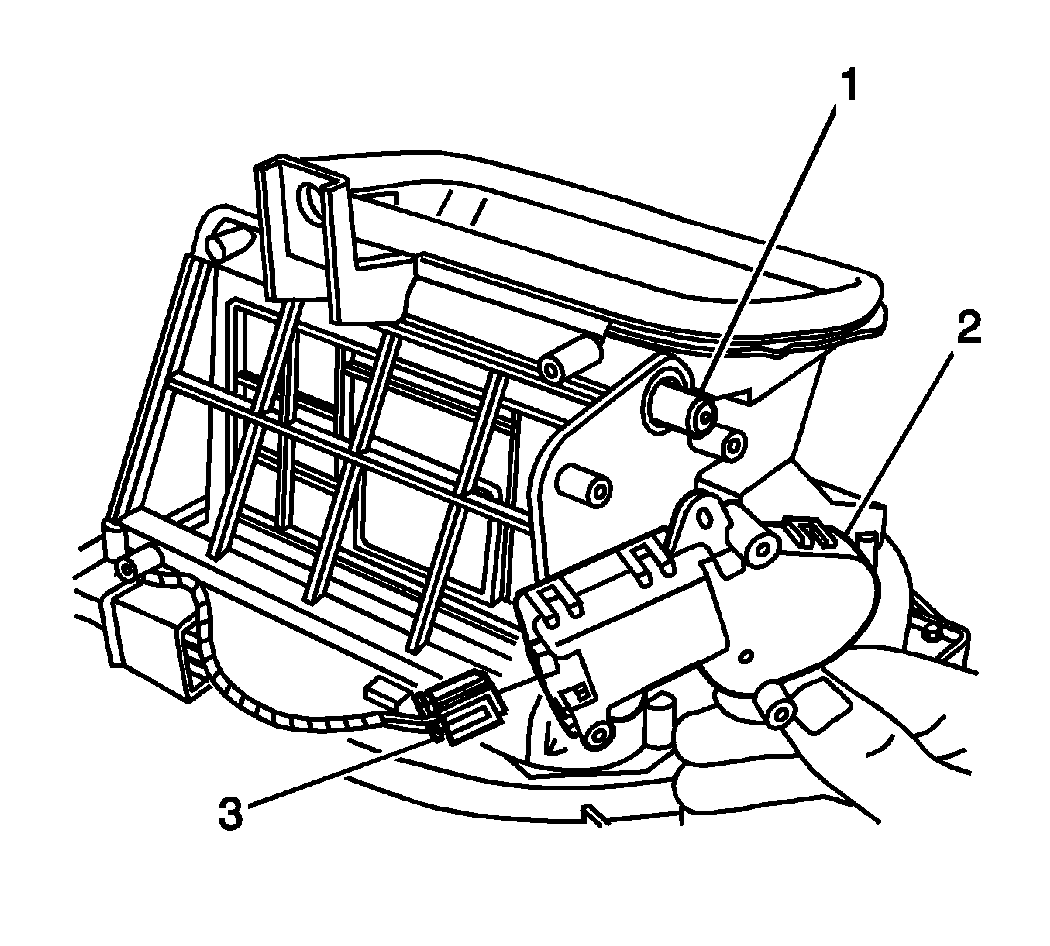

Fig 1: View Of Recirculation Actuator

Courtesy of GENERAL MOTORS CORP.

Install the recirculation actuator (2).

NOTE: Refer to Fastener Notice .

Install the screws to the recirculation actuator.
Tighten: Tighten the screws to 1.9 N.m (17 lb ft).
Connect the electrical connector (3) to the recirculation actuator (2).
Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .
