Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

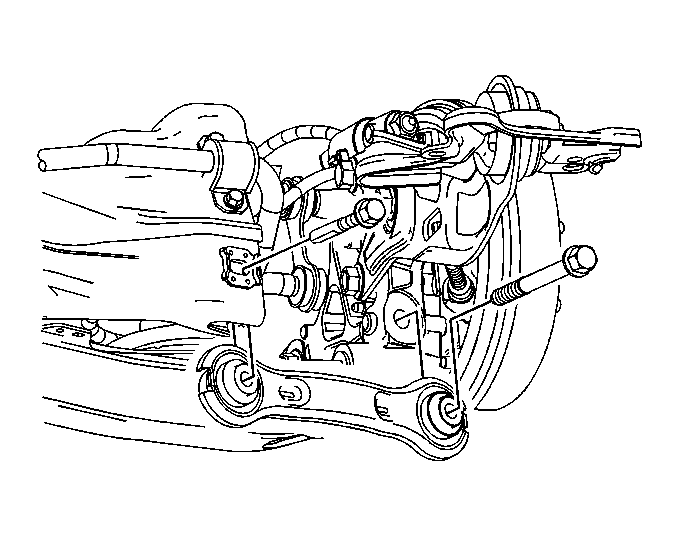

Fig 1: Identifying Upper Control Arm, Knuckle Bolt And Nut

Courtesy of GENERAL MOTORS CORP.

Install the toe link into the support assembly
Loosely install the toe assembly bolt and nut.

NOTE: Refer to Fastener Notice .

Install the toe link to steering knuckle.
Tighten:
- Tighten the bolt and nut to 110 N.m (81 lb ft) plus 70 degrees.
- Tighten the toe assembly bolt and nut to 110 N.m (81 lb ft) plus 70 degrees.
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
Adjust the rear toe. Refer to Rear Toe Adjustment .
