Inflatable Restraint Instrument Panel Module Indicator Replacement
WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the overhead console. Refer to Roof Console Replacement . |
|

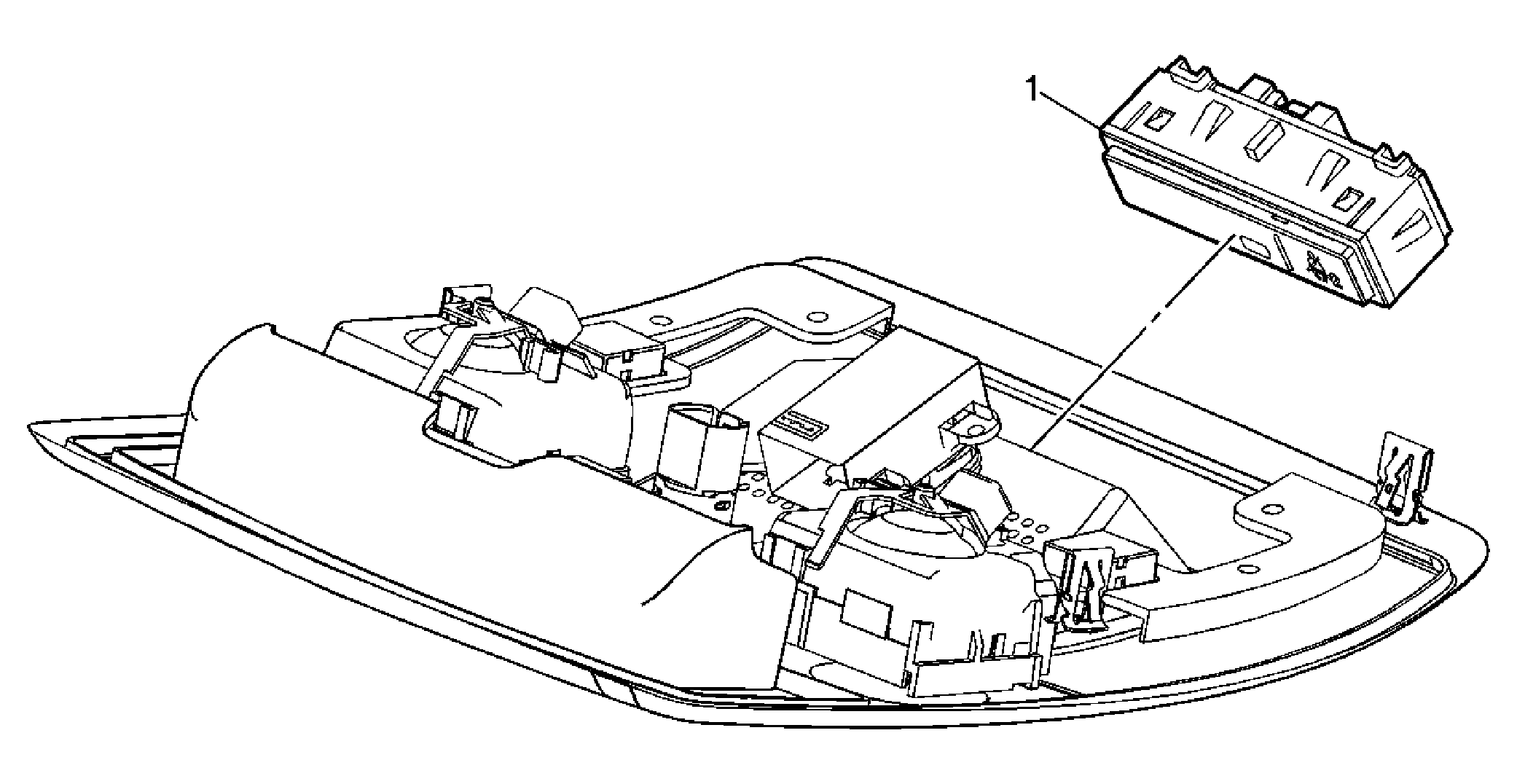

| 1 | Inflatable Restraint Instrument Panel Module Indicator Assembly Tip: Release the tabs to remove the module from the overhead console. |
