Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not strike or jolt the inflatable restraint side impact sensor (SIS). Before applying power to the SIS make sure that it is securely fastened. Failure to observe the correct installation procedures could cause SIR deployment, personal injury, or unnecessary SIR system repairs.
  1. Remove any dirt, grease, or other impurities from the mounting surface.

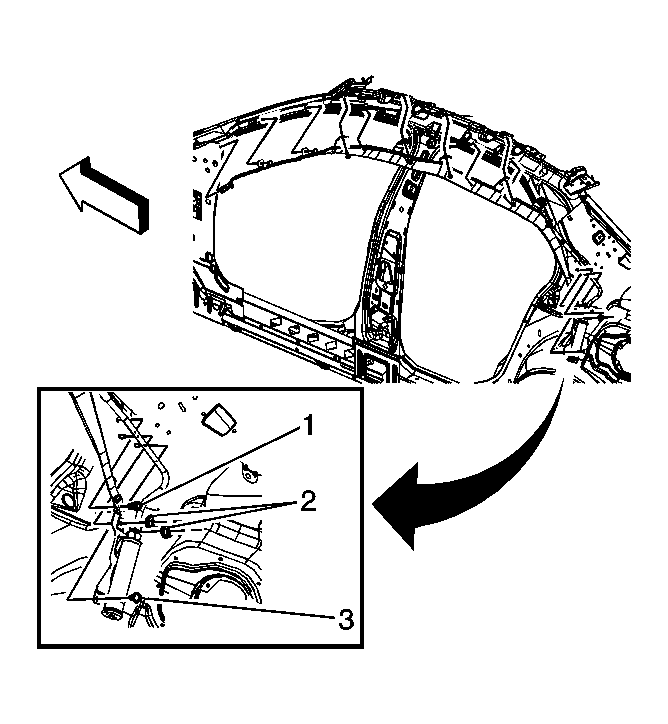

    2. Fig 1: View Of Roof Rail Module
    GM1457194Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the mounting fasteners (2, 3) to the inflatable restraint roof rail module.

    Tighten:  Tighten the fasteners to 9 N.m (80 lb in).

    3. Fig 2: View Of Connector Position Assurance (CPA), Harness Connector & Fasteners At Roof Rail
    GM756768Courtesy of GENERAL MOTORS CORP.
  3. Install the roof rail module harness connector to the wiring harness.
  4. Install the CPA to the roof rail module harness connector.
  5. Install the windshield garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
  6. Install the center pillar garnish moldings. Refer to Center Pillar Garnish Molding Replacement .
  7. Install the rear sail panel. Refer to Sail Panel Replacement .
  8. Install the rear seat back. Refer to Rear Seat Back Replacement .
  9. Enable the SIR system. Refer to SIR Disabling and Enabling .
  10. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
