Headlamp Replacement
WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

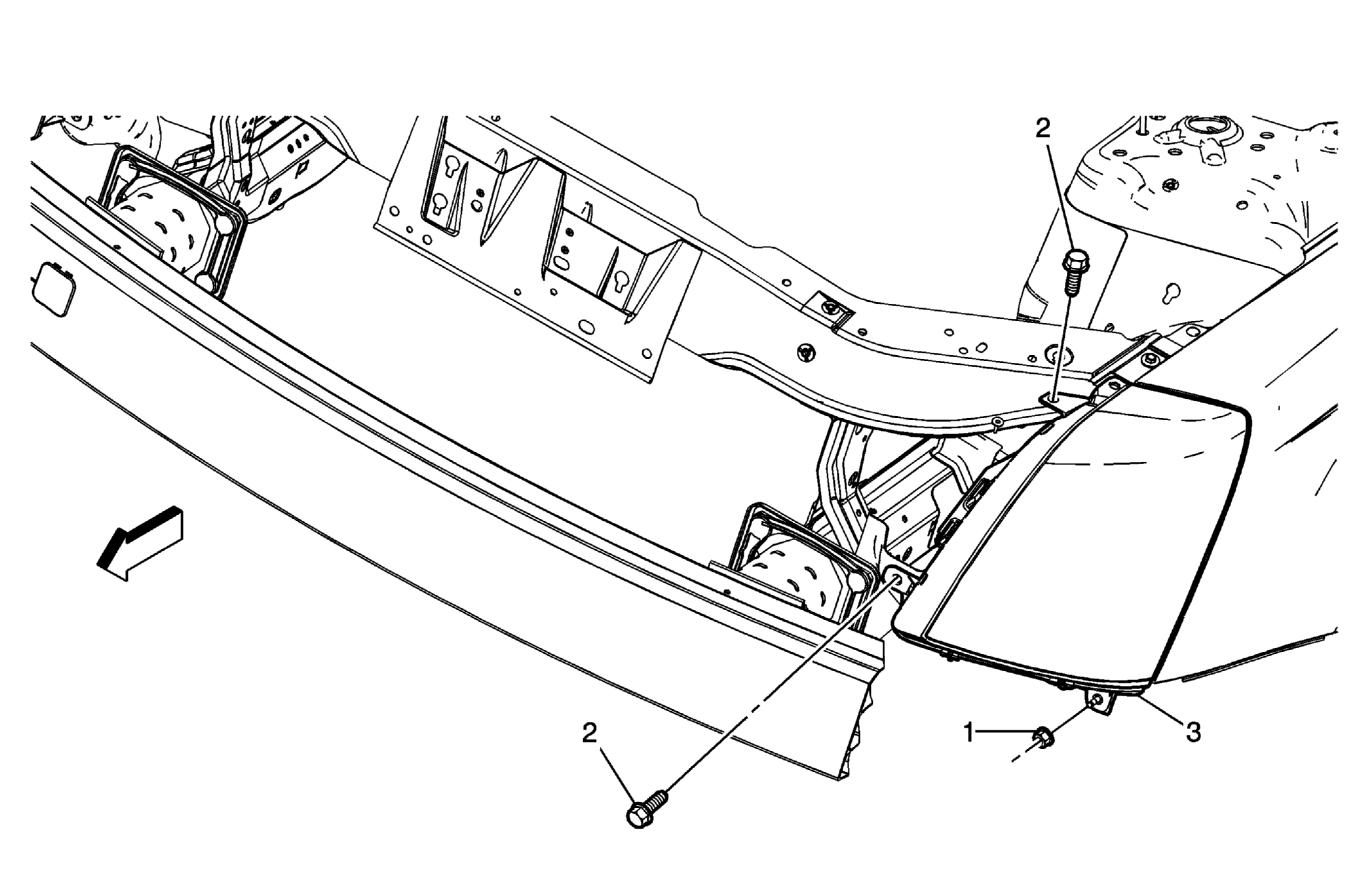

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Headlamp Nut (Qty: 1)
NOTE:
Refer to Fastener Notice
.
Tighten: 6 N.m (53 lb in) |
| 2 | Headlamp Bolt (Qty: 3) Tighten: 6 N.m (53 lb in) |
| 3 | Headlamp Assembly |
