Engine Splash Shield Replacement
WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

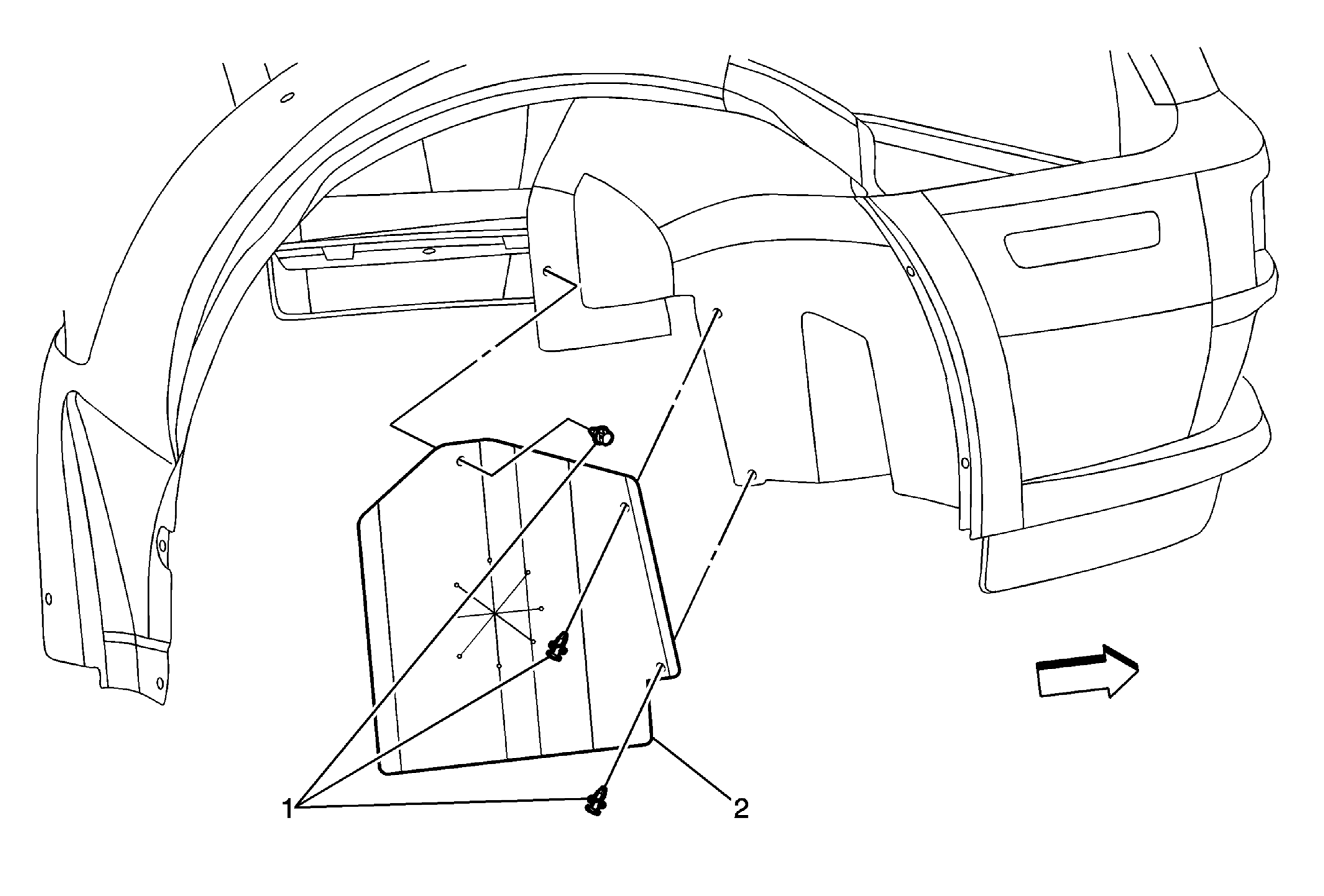

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the tire/wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Engine Splash Shield Plastic Retainers (Qty: 3) |
| 2 | Engine Splash Shield |
