Removal Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

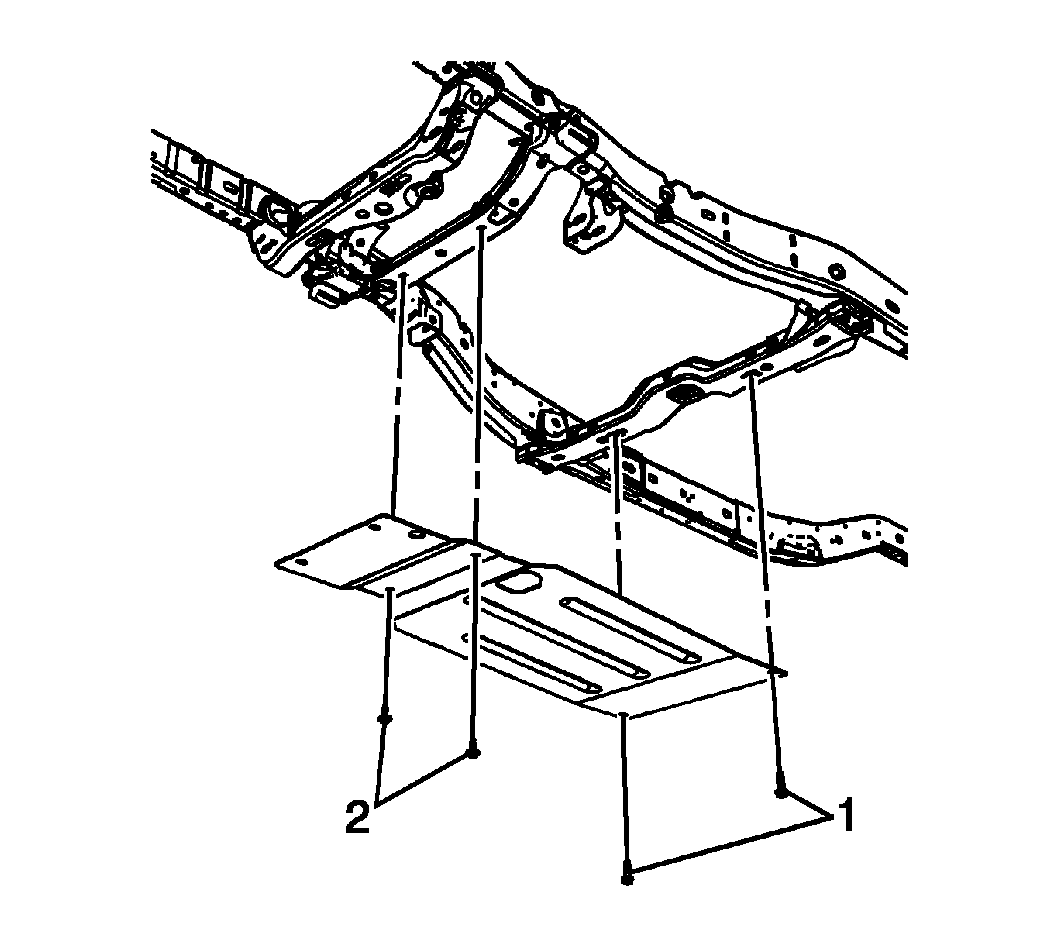

Fig 1: View Of Engine Front Protection Shield

Courtesy of GENERAL MOTORS CORP.

Remove the front shield bolts (1, 2).
Remove the front shield from the vehicle.

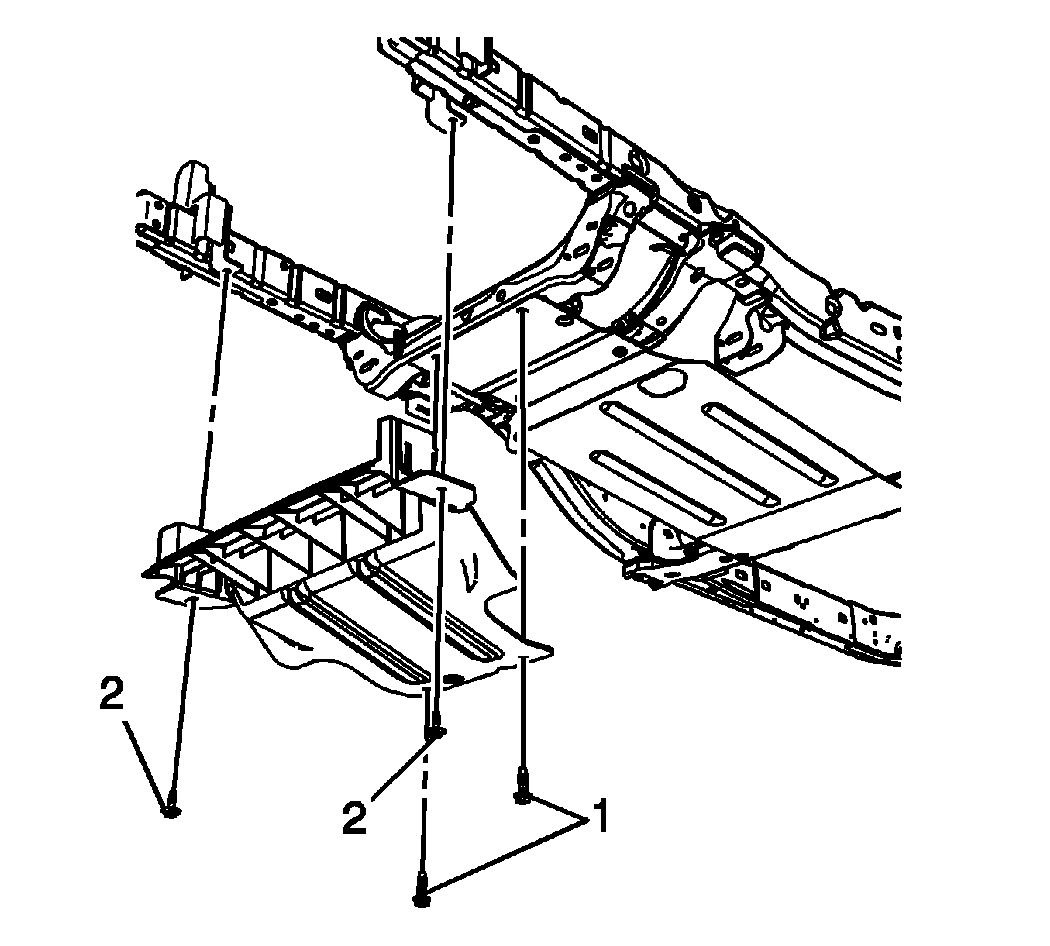

Fig 2: View Of Engine Rear Protection Shield

Courtesy of GENERAL MOTORS CORP.

Remove the rear shield bolts (1, 2).
Remove the rear shield from the vehicle.
