Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

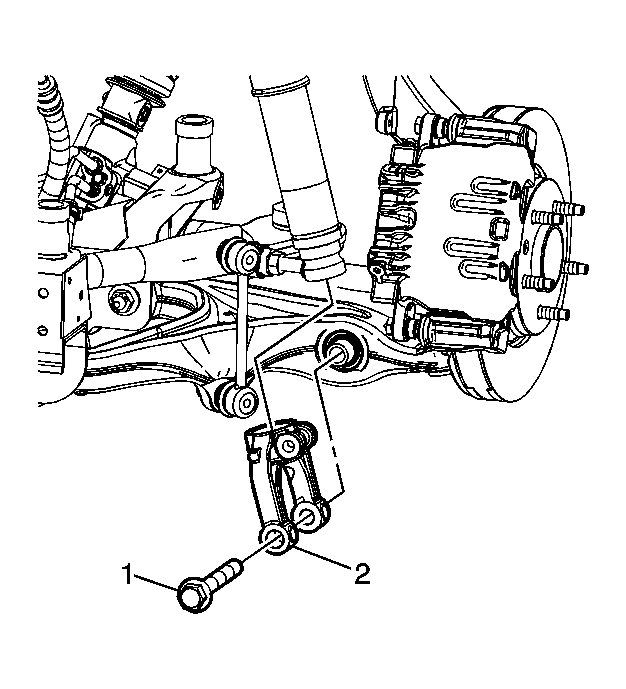

    Fig 1: Yoke To Lower Control Arm Bolt
    GM1689969Courtesy of GENERAL MOTORS CORP.
  1. Position the yoke (2) to the shock and control arm.
    2. NOTE: Refer to Fastener Notice .
  2. Install the yoke to control arm bolt (1).

    Tighten:  Tighten the bolt to 180 N.m (133 lb ft).

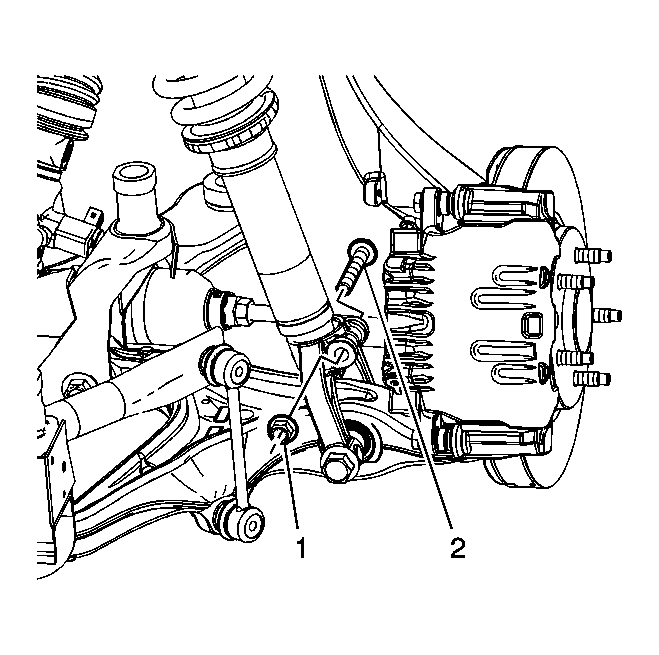

    3. Fig 2: Shock To Yoke Retaining Nut & Bolt
    GM1689967Courtesy of GENERAL MOTORS CORP.
  3. Install the shock to yoke retaining bolt (2).
  4. Install the shock yoke nut (1).

    Tighten:  Tighten the nut to 90 N.m (66 lb ft).

  5. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
