Remote Function Schematics

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Garage Door Opener Schematic

Courtesy of GENERAL MOTORS CORP.

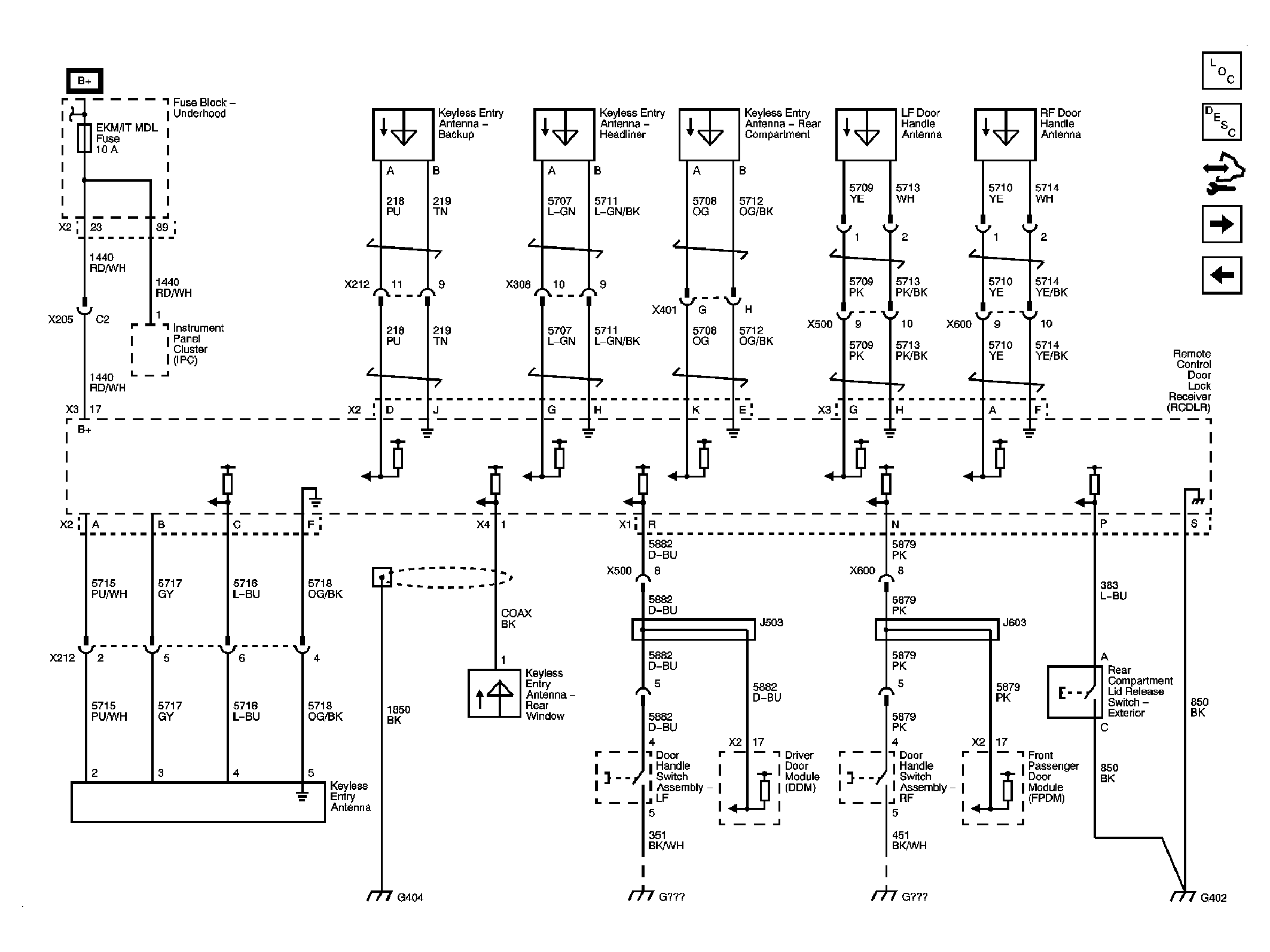

Fig 2: Keyless Entry Module Power, Grounds, Antennas and Switches Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Keyless Entry DLC, Instrument Panel Cluster (IPC) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Keyless Entry Hood Ajar Switch Schematic

Courtesy of GENERAL MOTORS CORP.
