Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

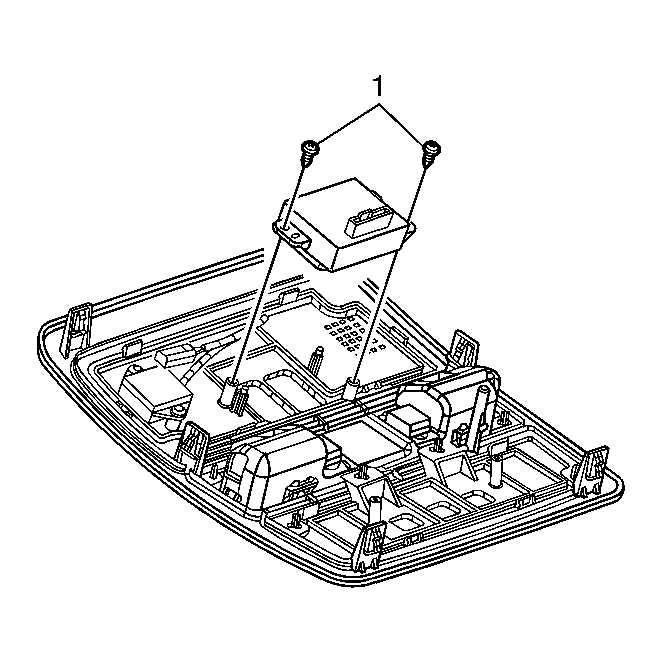

Fig 1: View Of Sunroof Switch

Courtesy of GENERAL MOTORS CORP.

Locate the sunroof switch to the overhead console.

NOTE: Refer to Fastener Notice .

Install the screws (1) securing the sunroof switch to the overhead console.
Tighten: Tighten the screws (1) to 2 N.m (18 lb in).
Connect the electrical connector.
Install the overhead console. Refer to Roof Console Replacement .
