Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

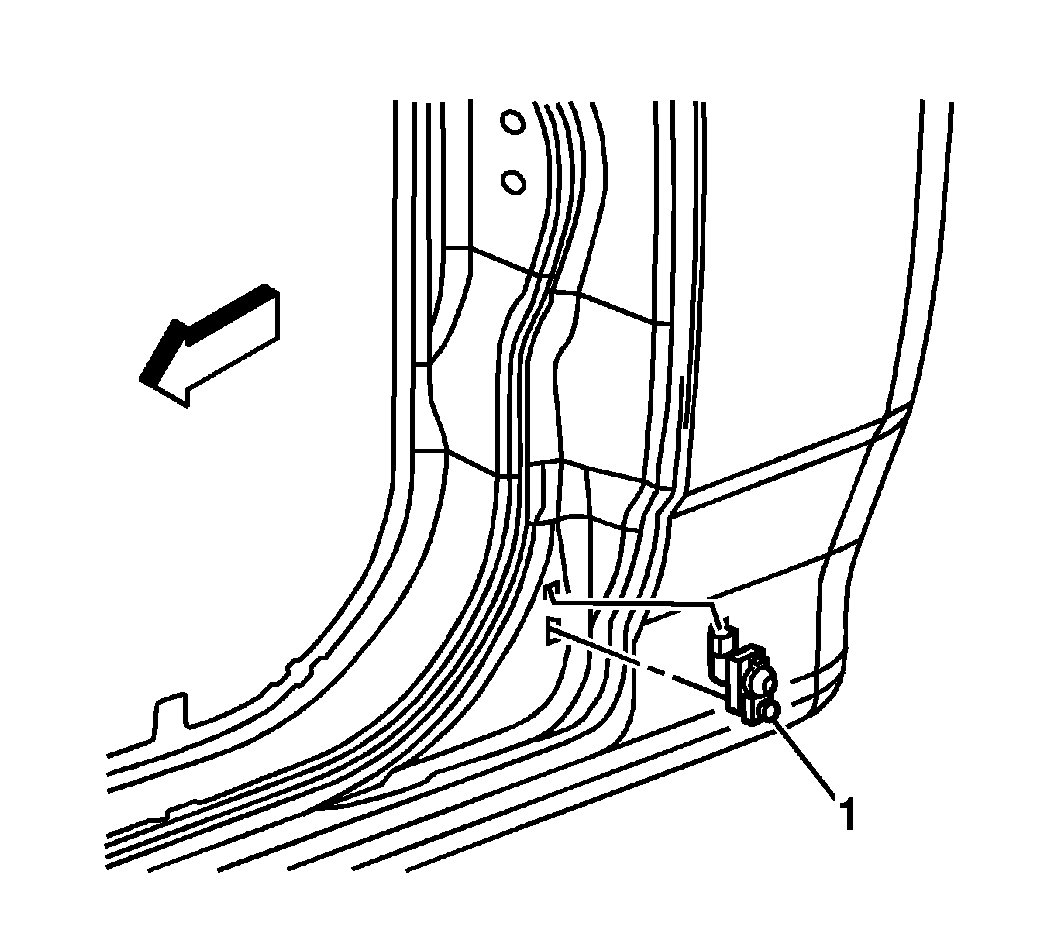

Fig 1: View Of Door Jamb Switch

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the door jamb switch (1).
Install the door jamb switch (1) to the body.

NOTE: Refer to Fastener Notice .

Install the screw retaining the door jam switch to the body.
Tighten: Tighten the door jamb switch screw to 1.5 N.m (13 lb in).
Close the door.
