Installation Procedure
WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

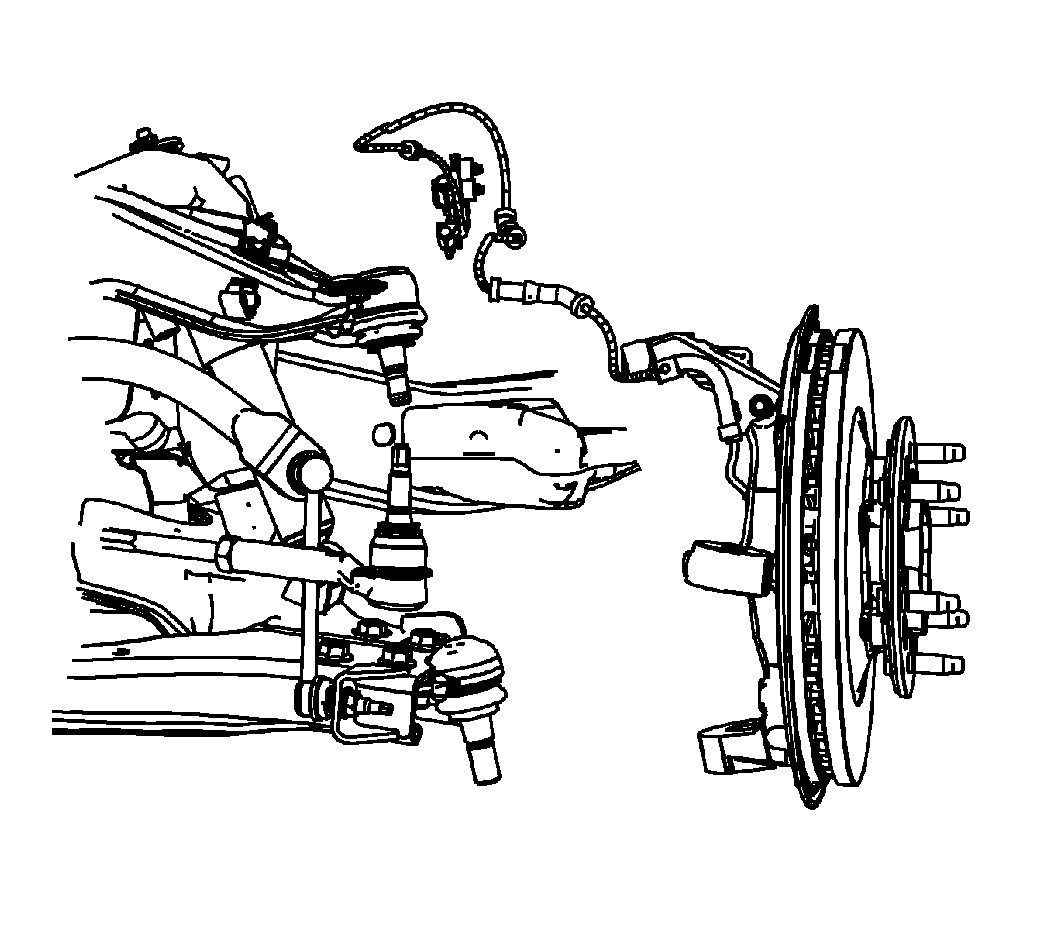

- Install the wheel hub and bearing assembly onto the knuckle. Refer to Wheel Hub/Speed Sensor Replacement .
- Install the lower control arm/ball joint into the knuckle. Refer to Lower Control Arm Ball Joint Replacement (2WD, Z85, ZQ8) or Lower Control Arm Ball Joint Replacement (4WD, 2WD Z71) .
- Install the wheel drive shaft into the knuckle.
- Install the upper control arm/ball joint into the knuckle. Refer to Upper Control Arm Ball Joint Replacement (2WD, Z85, ZQ8) or Upper Control Arm Ball Joint Replacement (4WD, 2WD Z71) .
- Install the outer tie rod end into the knuckle. Refer to Rack and Pinion Outer Tie Rod End Replacement .

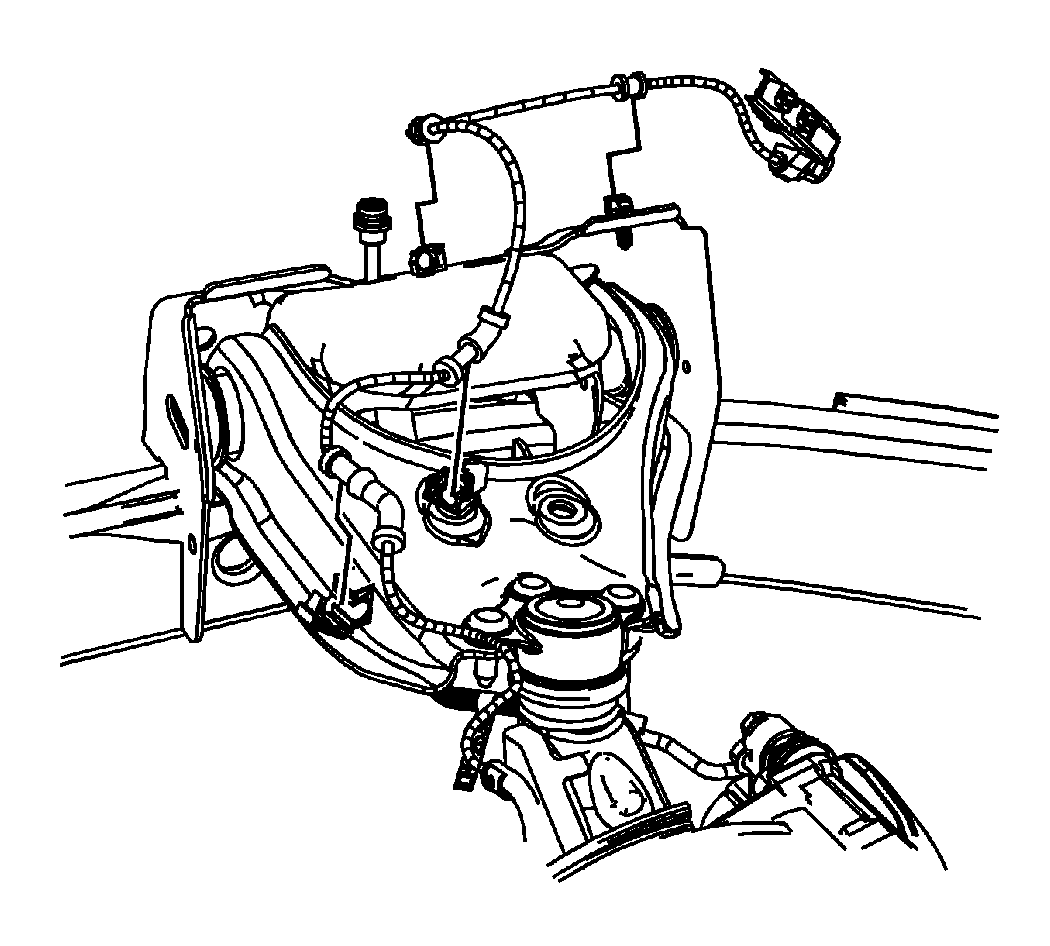

- Install the speed senor wiring harness in the retaining clips on the upper control arm and frame.
- Install the brake caliper mounting bracket. Refer to Brake Caliper Bracket Replacement .
- Install the wheel drive shaft retaining nut to specifications. Refer to Wheel Drive Shaft Replacement .
- Remove the support from the lower control arm.
- Install the tire and wheel. Refer to Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
IMPORTANT:
The following service procedure is for vehicles equipped with 4WD only. If the vehicle is not equipped with 4WD, proceed to Step 4.
