Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

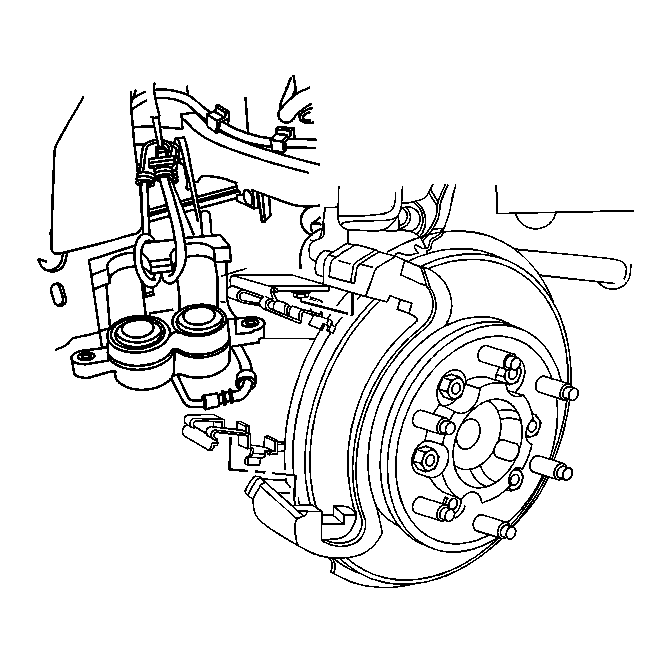

Fig 1: View Of Brake Pad Retaining Clips

GM1241374

Courtesy of GENERAL MOTORS CORP.

Install the NEW brake pads shims on the mounting bracket.

Fig 2: Lubricating Guide Pins

GM1360986

Courtesy of GENERAL MOTORS CORP.

Apply a small amount of high temperature lubricant on the guide pins.

Fig 3: View Of Mounting Bracket Guide Pin

GM1340301

Courtesy of GENERAL MOTORS CORP.

Install the guide pins in the mounting bracket.

Fig 4: View Of Mounting Bracket Guide Pin Seal

GM1340303

Courtesy of GENERAL MOTORS CORP.

Install the guide pin seal.

Fig 5: View Of Inboard Brake Pad

GM1241371

Courtesy of GENERAL MOTORS CORP.

Install the inner brake pads to the mounting bracket.

Fig 6: View Of Outboard Brake Pad

GM1241369

Courtesy of GENERAL MOTORS CORP.

Install the outer brake pad to the mounting bracket.

Fig 7: Supporting Brake Caliper

GM1241366

Courtesy of GENERAL MOTORS CORP.

Remove the brake caliper from the support.

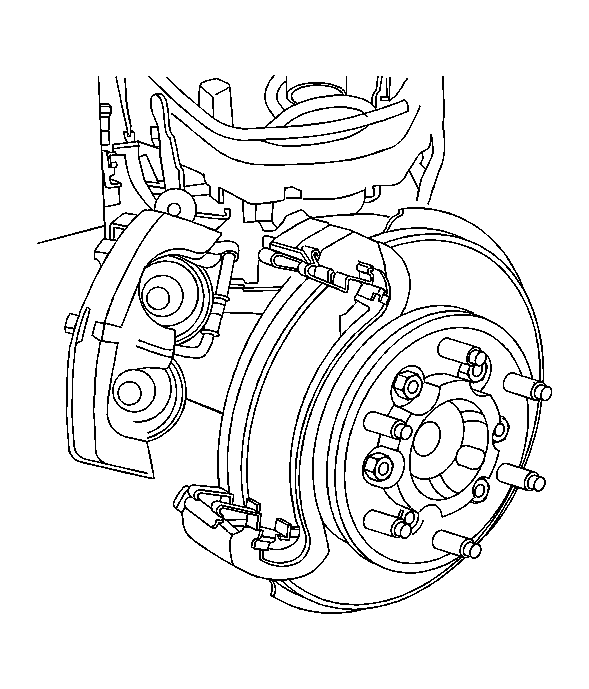

Fig 8: Identifying Brake Caliper

GM1241368

Courtesy of GENERAL MOTORS CORP.

Install the brake caliper assembly. Refer to Brake Caliper Replacement .
