Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Steering Knuckle Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

With the aid of an assistant, hold 2 of the 4 mounting bolts in the steering knuckle across from each other.

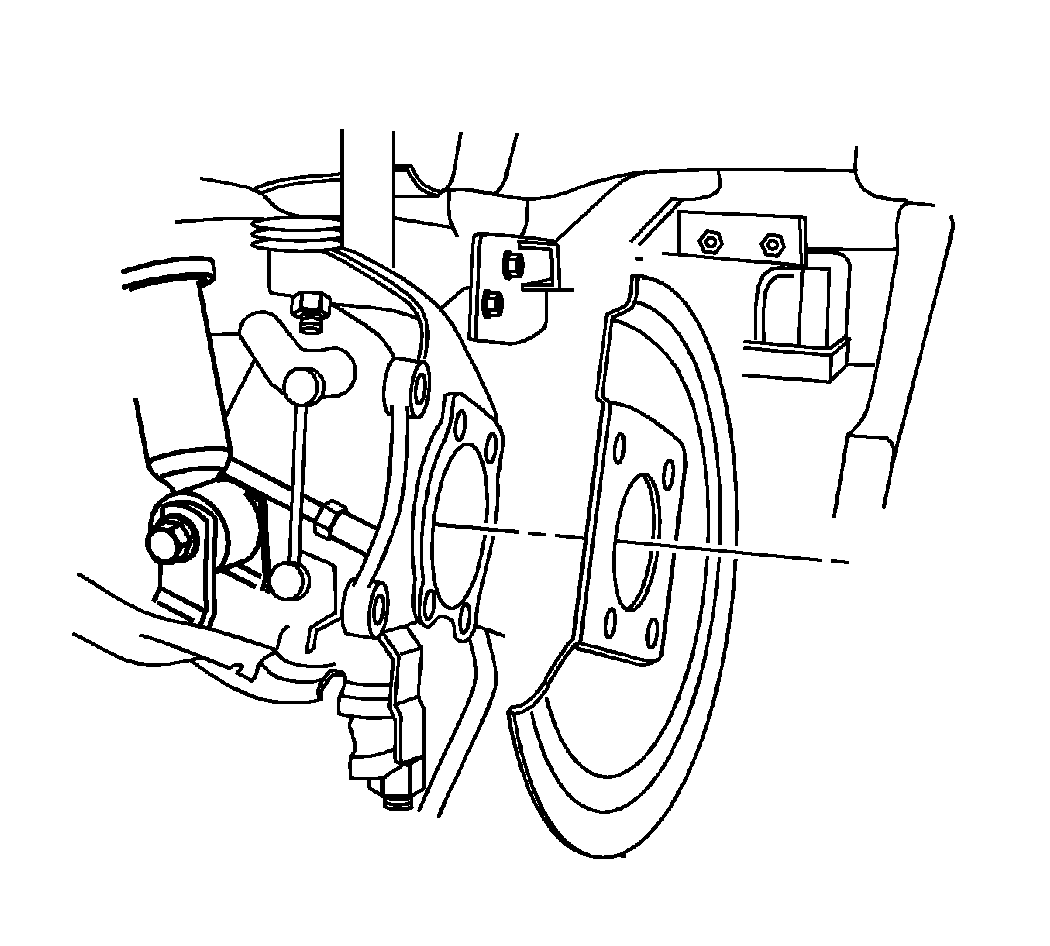

Fig 2: View Of Disc Brake Splash Shield

Courtesy of GENERAL MOTORS CORP.

Position the splash shield on the steering knuckle.

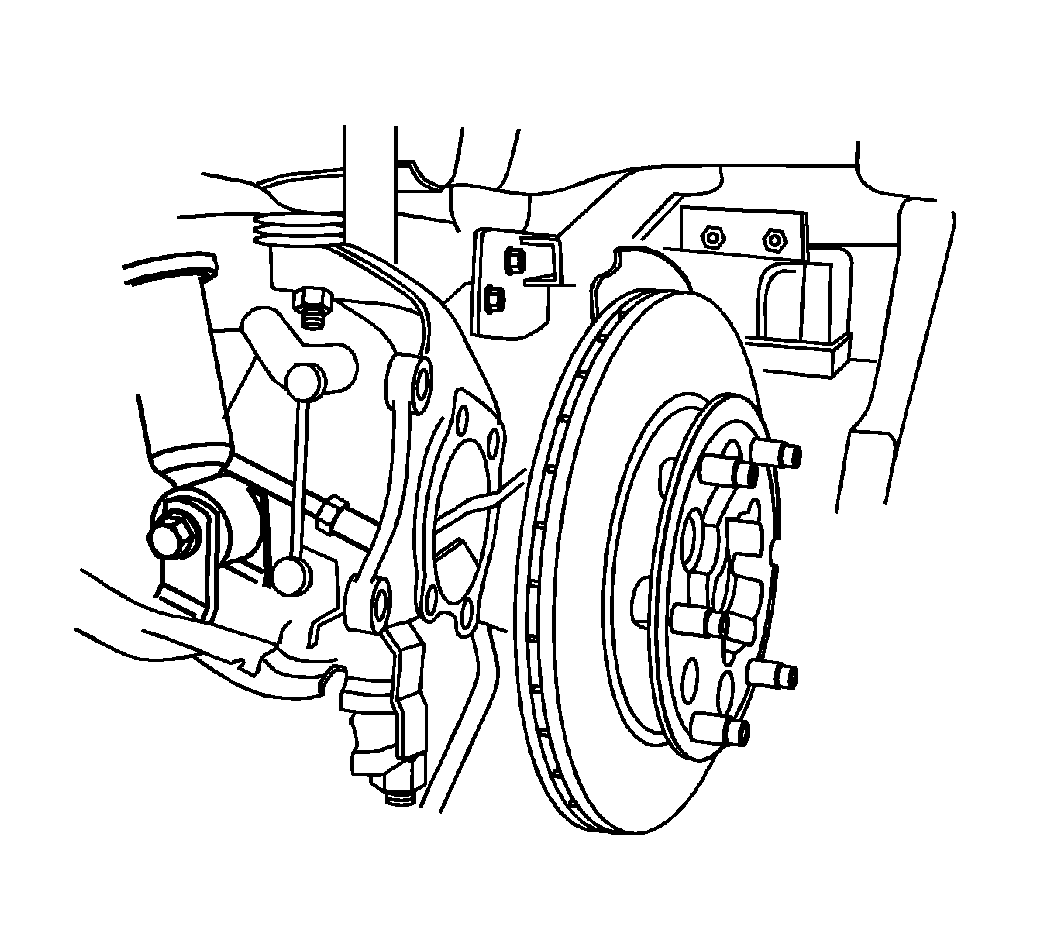

Fig 3: View Of Wheel Bearing/Hub, Brake Rotor Assembly

Courtesy of GENERAL MOTORS CORP.

Install the wheel hub and speed sensor assembly. Refer to Wheel Hub/Speed Sensor Replacement .
Lower the vehicle.
