Remote Function Schematics

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Garage Door Opener

Courtesy of GENERAL MOTORS CORP.

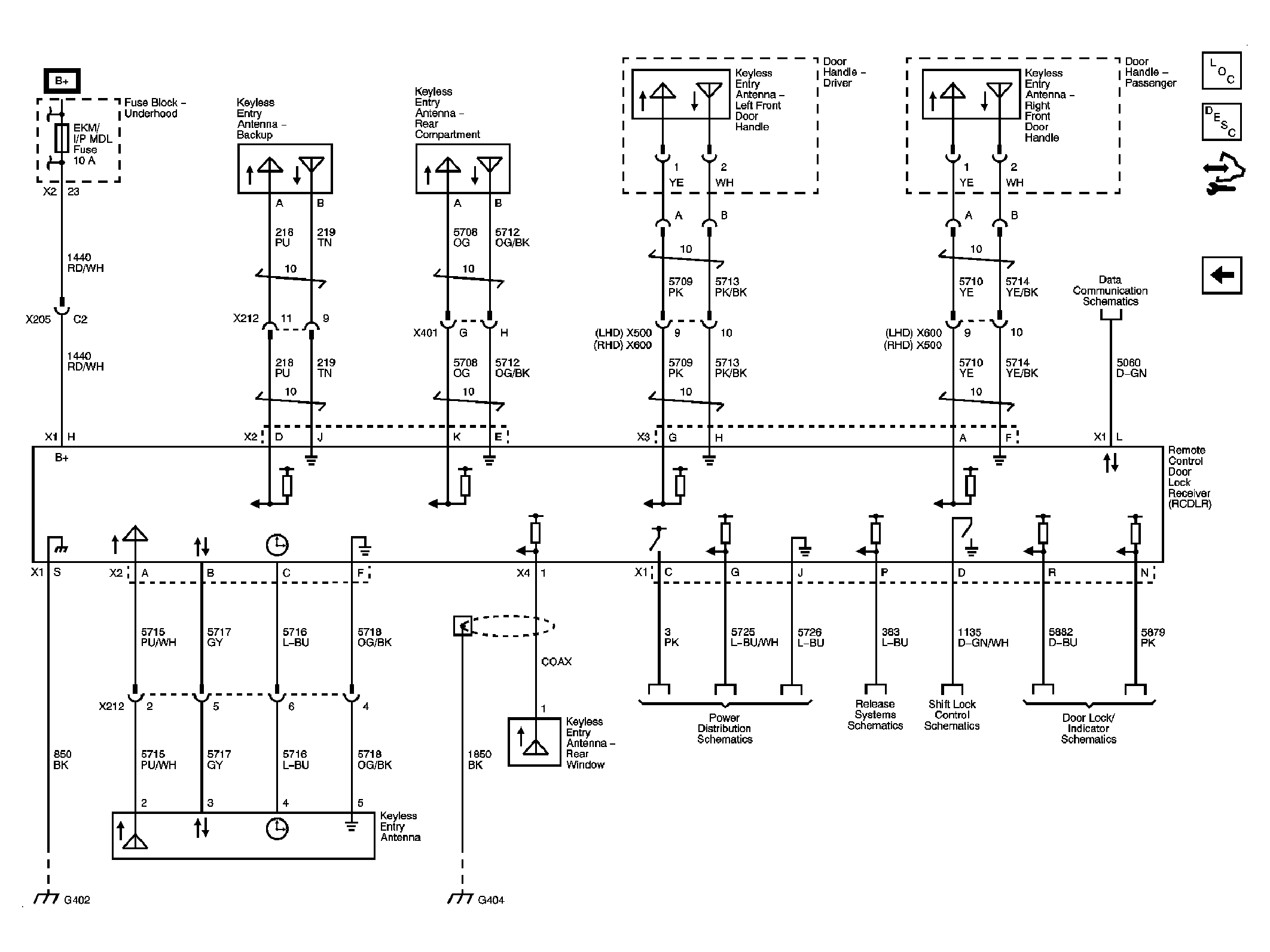

Fig 2: Keyless Entry

Courtesy of GENERAL MOTORS CORP.
