Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

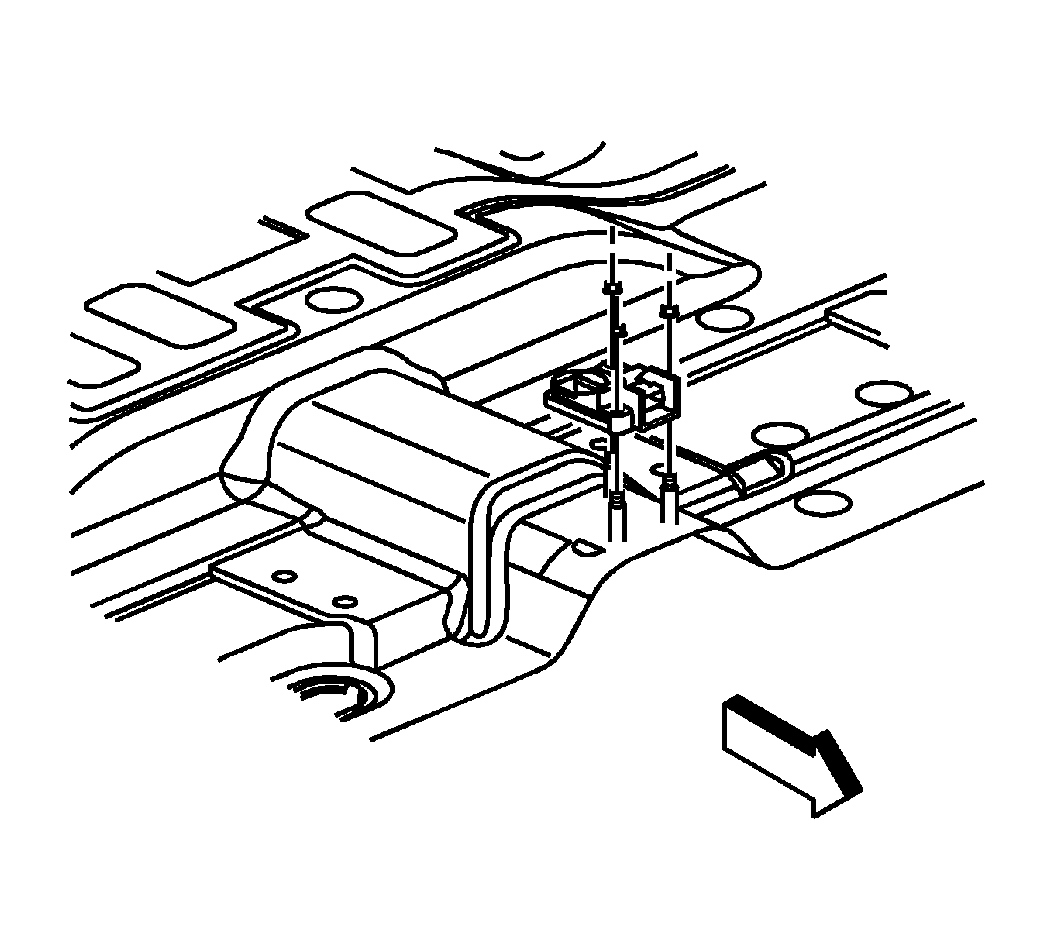

Fig 1: View of Vehicle Rollover Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the nuts securing the rollover sensor to the floor panel.
Tighten: Tighten the screws to 10 N.m (88 lb in).
Connect the electrical connectors.
Install the carpet. Refer to Floor Panel Carpet Replacement .
Enable the SIR system. Refer to SIR Disabling and Enabling .
