Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

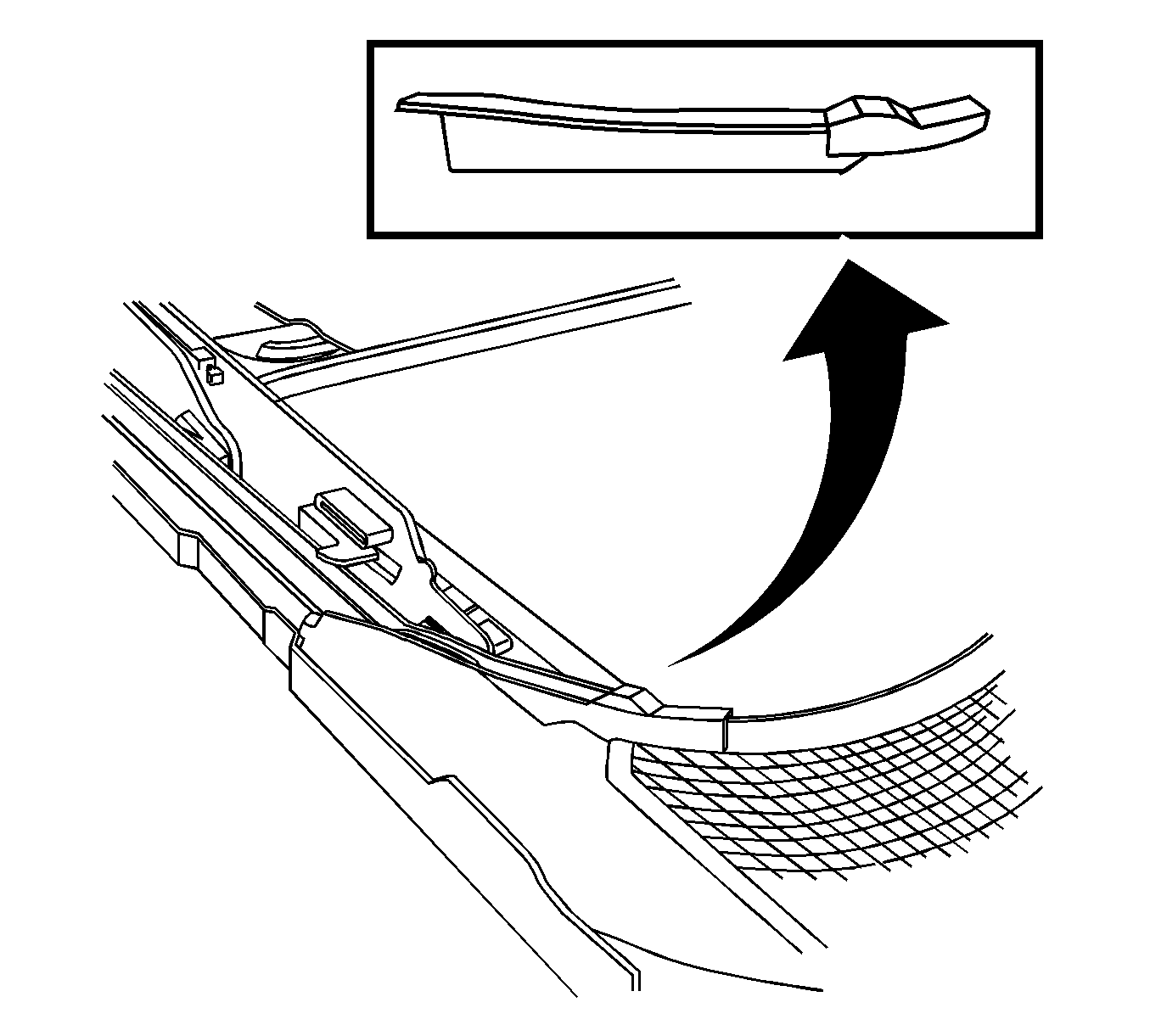

    Fig 1: Identifying Air Deflector Guides
    GM1692904Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Transfer the air deflector guides to the new air deflector. The air deflector guides can be replaced separately if damaged.
  1. Install the guides to the air deflector.

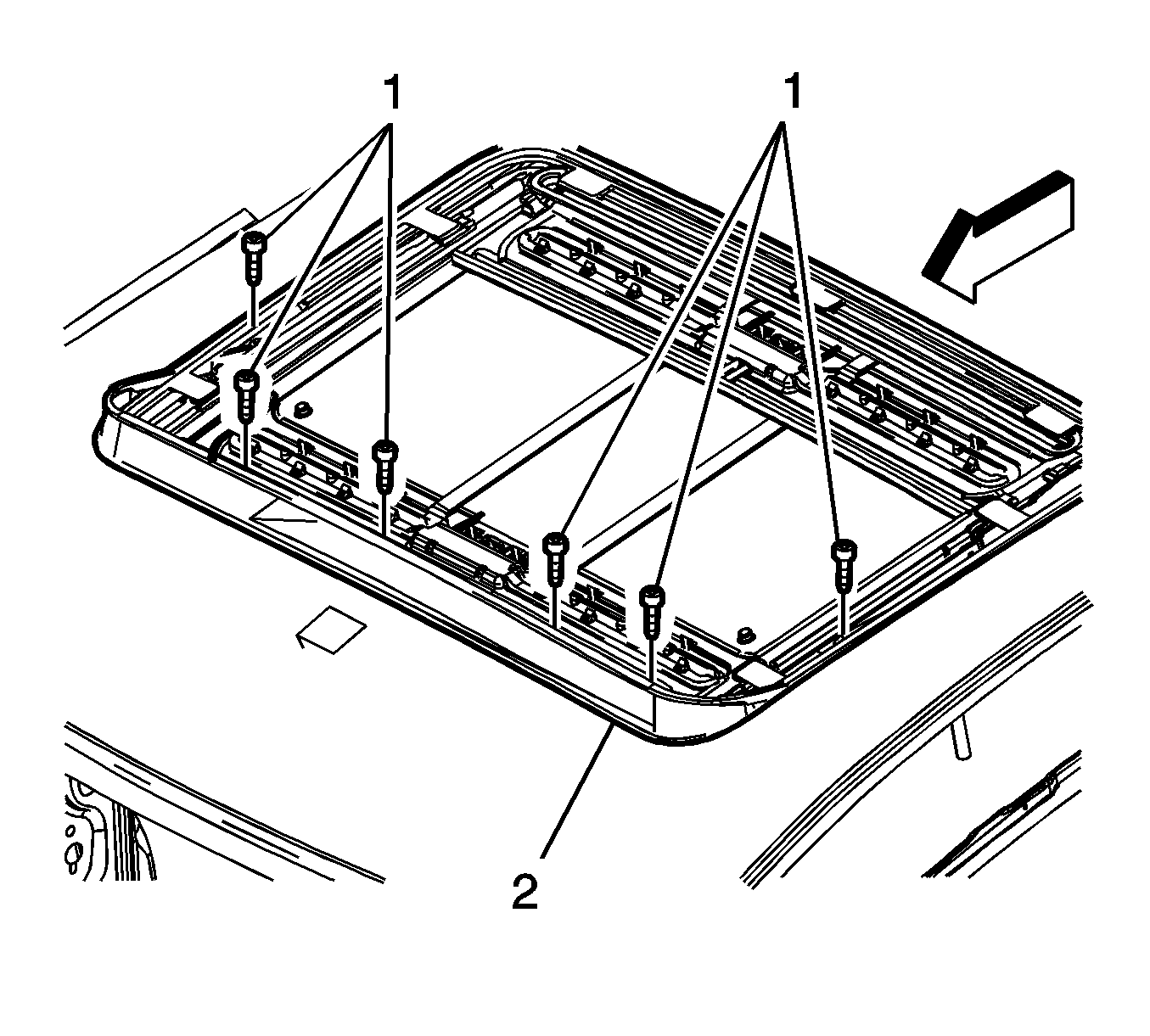

    2. Fig 2: View Of Screws In Sunroof Air Deflector
    GM1611507Courtesy of GENERAL MOTORS CORP.
  2. Position the sunroof air deflector to the sunroof module.
    3. NOTE: Refer to Fastener Notice .
  3. Install the screws (1) attaching the sunroof air deflector to the sunroof module (2).

    Tighten:  Tighten the screws to 3 N.m (26 lb in).

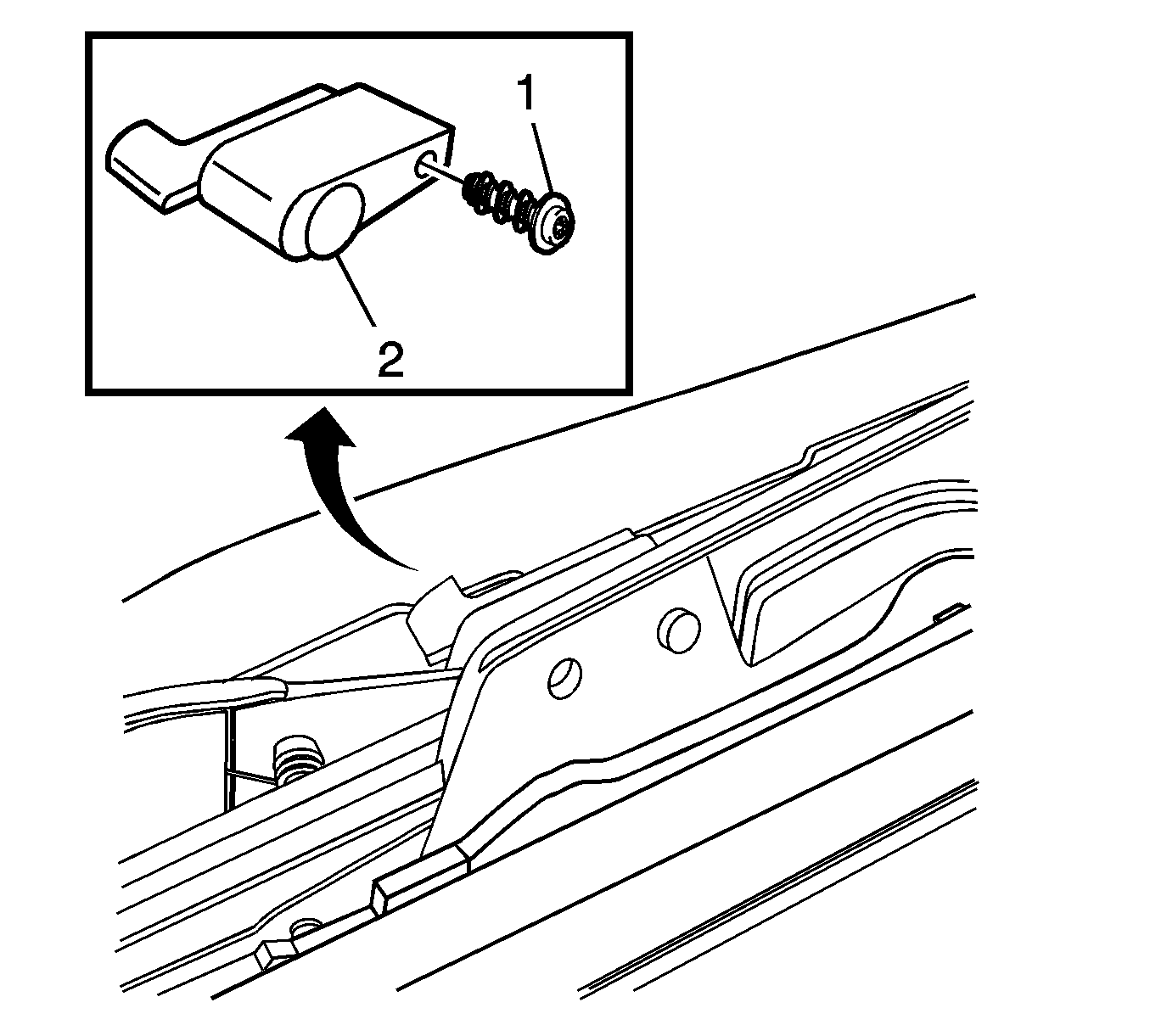

    4. Fig 3: View Of Actuator Blocks
    GM1692896Courtesy of GENERAL MOTORS CORP.
  4. Install the actuator to the window track.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  5. Power the sunroof window tracks to the close position.
  6. Install sunroof window. Refer to Sunroof Window Replacement .
  7. Verify that the spring action of the sunroof air deflector is operating.
  8. Close the sunroof window.
