Installation Procedure
WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

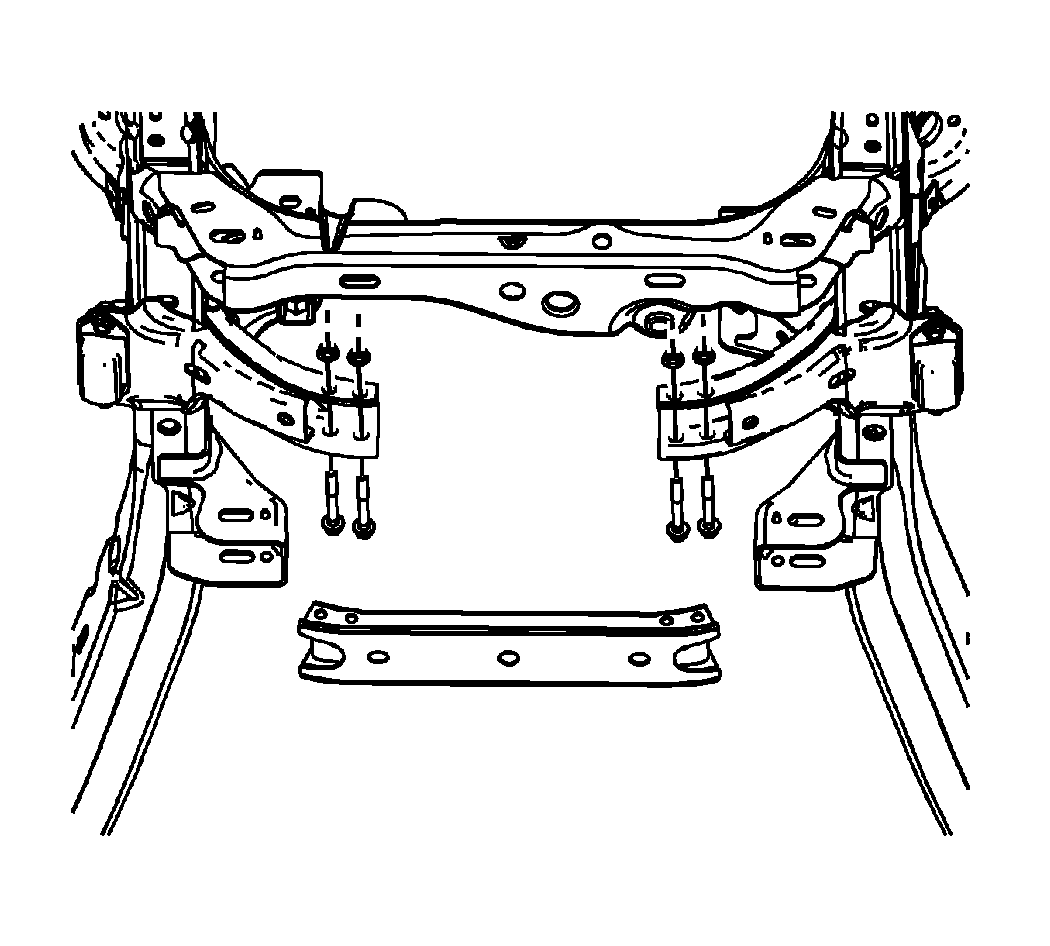

- Install the crossmember to the vehicle.
- Perform the following procedure before installing the bolts.
- Remove all traces of the original adhesive patch.
- Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
- Apply Threadlocker GM P/N 12345493 (Canadian P/N 10953488).
- Install the bolts and the nuts.
Tighten: Tighten the bolts to 60 N.m (44 lb ft).
- Lower the vehicle.
NOTE:
Refer to Fastener Notice
.
