Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coil spring to the vehicle.

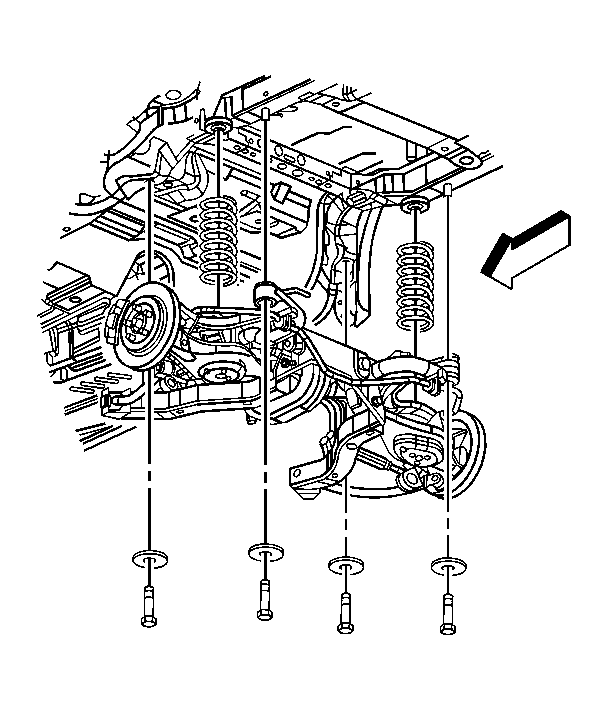

    2. Fig 1: View Of Frame-To-Body Mounting Bolts & Washers
    GM977459Courtesy of GENERAL MOTORS CORP.
  2. Raise the frame.
    3. NOTE: Refer to Fastener Notice .
  3. Install the frame to body mounting bolts and washers.

    Tighten:

    • Tighten the front bolts to 265 N.m (195 lb ft).
    • Tighten the rear bolts to 191 N.m (140 lb ft).

  4. Remove the jack from the vehicle.
  5. Install a suitable jack under the lower control arm.
    6. Fig 2: View Of Lower Shock Mounting Bolt
    GM926577Courtesy of GENERAL MOTORS CORP.
  6. Using the jack raise the lower control arm until the shock absorber aligns with the knuckle.
  7. Install the shock absorber lower retaining bolt.

    Tighten:  Tighten the bolt to 150 N.m (111 lb ft).

  8. Remove the jack from the vehicle.
  9. Connect the head lamp adjustment link to the upper control arm.
  10. Connect the automatic level control sensor link to the upper control arm.
  11. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  12. Lower the vehicle.
