Mobile Telephone Digital Antenna Replacement
WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |

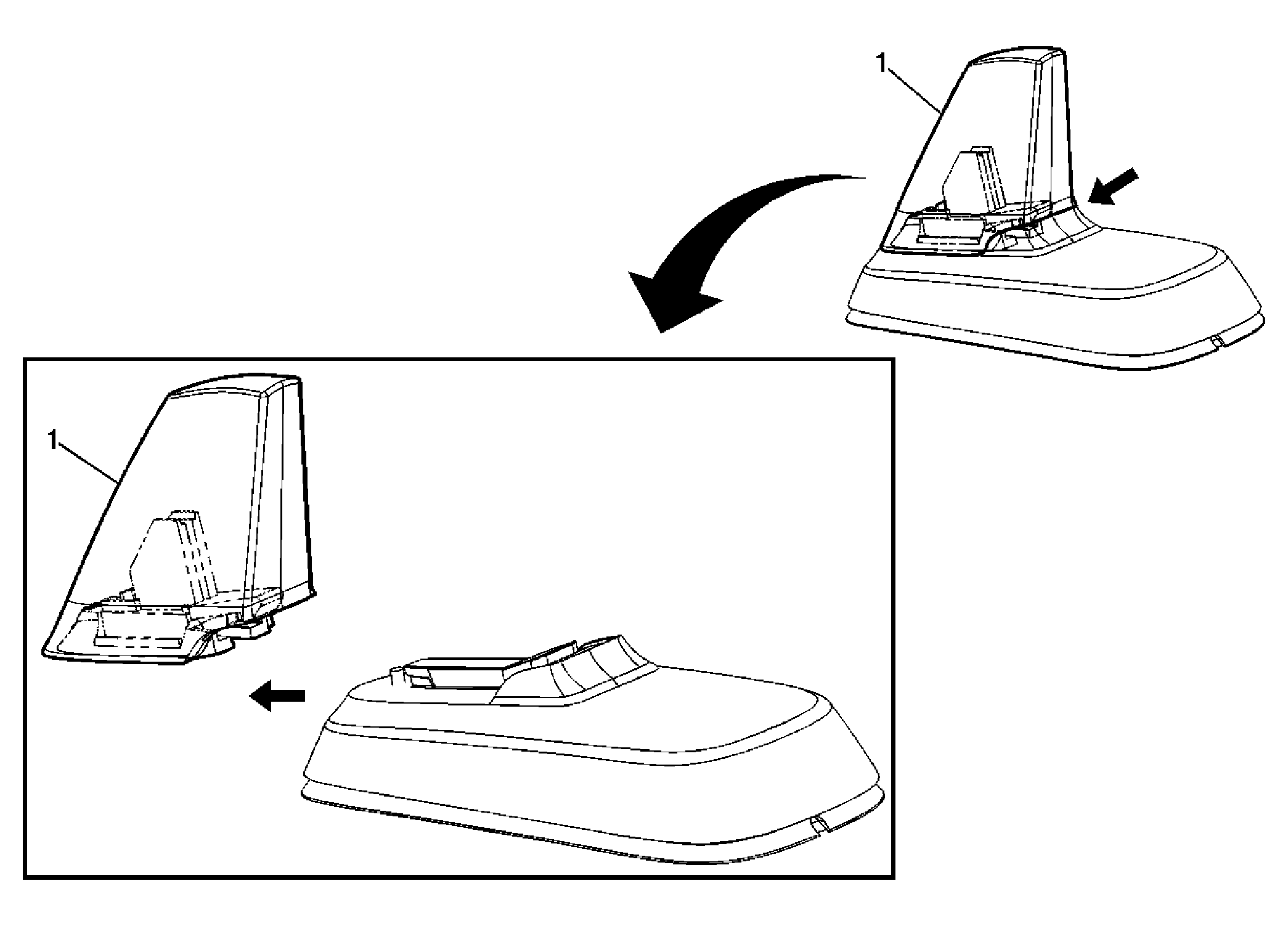

Mobile Telephone Digital Antenna Assembly
Tip:
- The release tab is not visible with the mast assembled to the antenna base.
- Use a thin flat tool to release the antenna from the base, then slide the antenna off the antenna base.
|
