Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

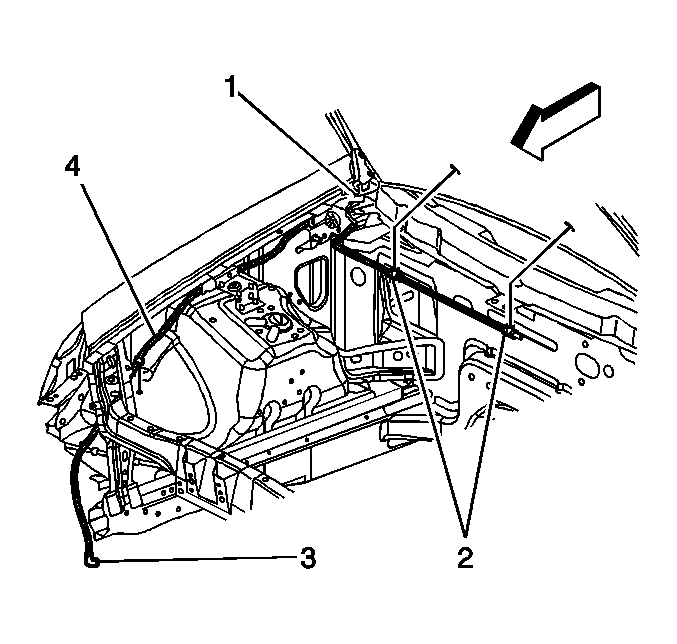

    Fig 1: View Of Washer Hose
    GM776820Courtesy of GENERAL MOTORS CORP.
  1. Position the washer hose around the passenger side hood hinge (1).
  2. Route the hose (washer pump end first) forward behind the bracket securing the inner fender to the wheelhouse.
  3. Route the hose (4) downward to the washer solvent container.
  4. Secure the washer hose retainer (1) to the inside edge of the hood hinge.
  5. Connect the washer hose connections (2) to the washer nozzles.
  6. Install the passenger side air inlet grille (1). Refer to Air Inlet Grille Panel Replacement .
  7. Install the hood insulator.
    8. Fig 2: Identifying Washer Pump Filter Grommet
    GM784588Courtesy of GENERAL MOTORS CORP.
  8. Connect the washer hose (2) to the washer pump (5).
  9. Install the air deflector. Refer to Front Air Deflector Replacement .
  10. Fill the washer solvent container.
  11. Verify washer operation.
