Front Side Turn Signal Lamp Replacement

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

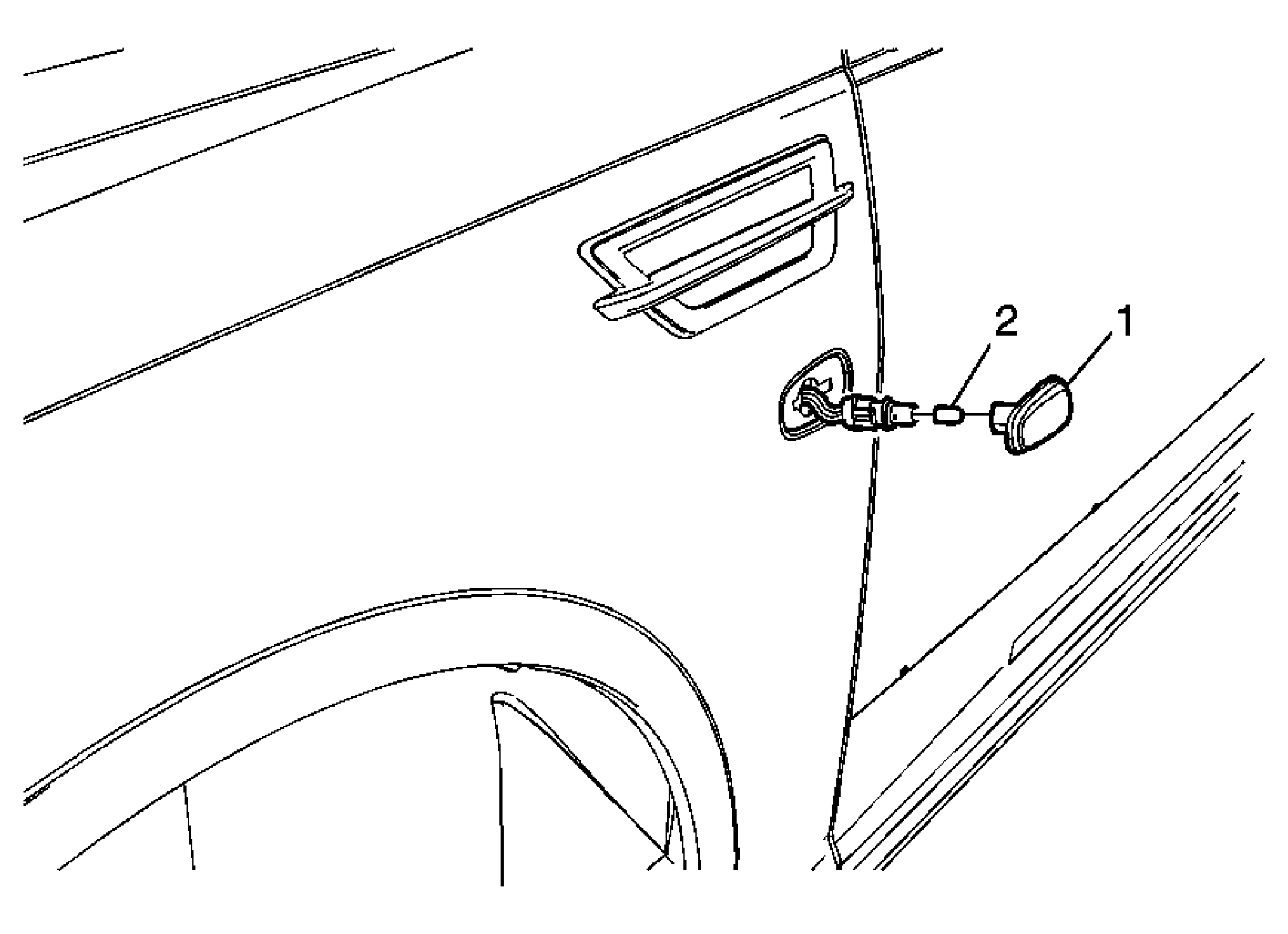

Fig 1: Front Side Turn Signal Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Exterior Trim Emblem Removal Caution . Preliminary Procedure Apply masking tape to the rear edge of the front side turn signal lamp. Using a small flat-bladed tool, gently pry at the rear edge of the lamp assembly. Carefully rotate the lamp forward in order to remove the lamp from the fender opening.
1	Front Side Turn Signal Lamp Tip: Rotate the bulb socket and remove the socket from the lamp assembly.
2	Front Side Turn Signal Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Tip: Remove the bulb from the lamp socket, if applicable.

Callout

Component Name

CAUTION: Refer to Exterior Trim Emblem Removal Caution .

Preliminary Procedure

Apply masking tape to the rear edge of the front side turn signal lamp.
Using a small flat-bladed tool, gently pry at the rear edge of the lamp assembly.
Carefully rotate the lamp forward in order to remove the lamp from the fender opening.

Front Side Turn Signal Lamp
Tip: Rotate the bulb socket and remove the socket from the lamp assembly.

Front Side Turn Signal Lamp Bulb

WARNING: Refer to Halogen Bulb Warning .

Tip: Remove the bulb from the lamp socket, if applicable.
