Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

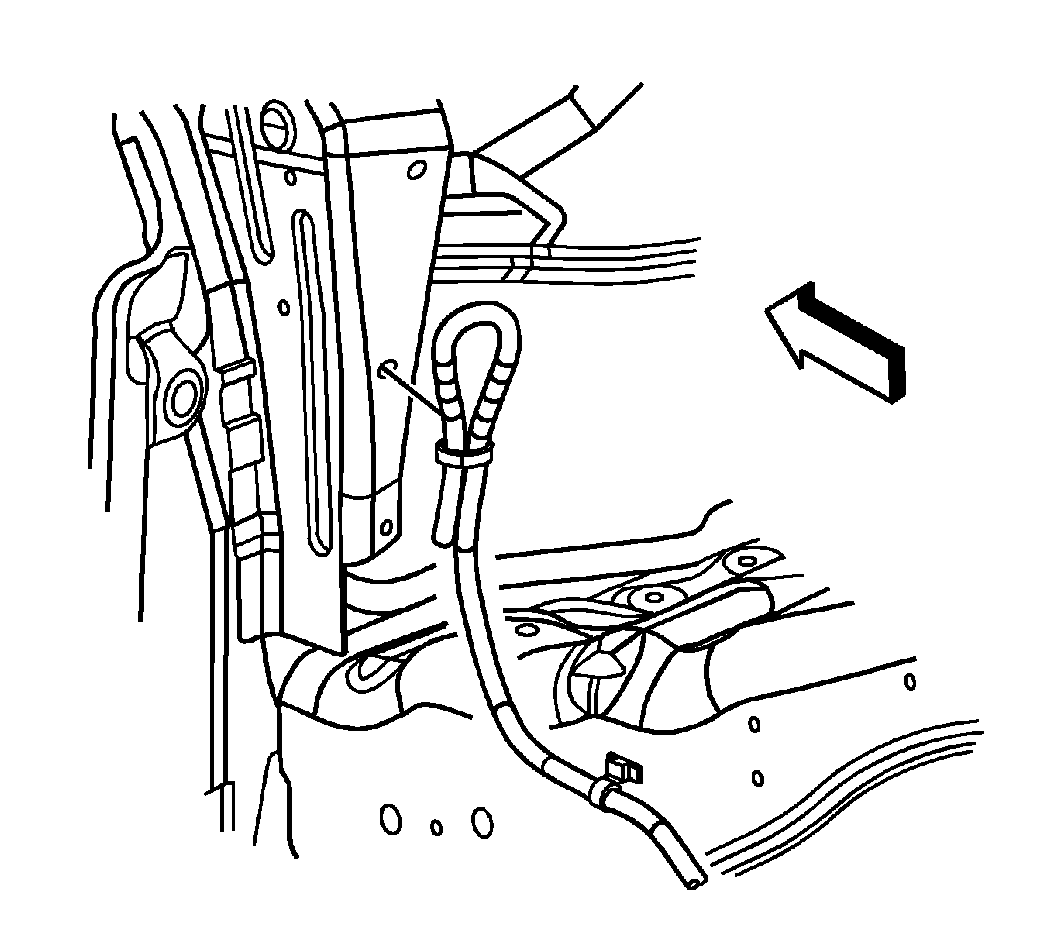

    Fig 1: View Of Vent Hose At Radiator Core Support
    GM1305846Courtesy of GENERAL MOTORS CORP.
  1. Install the vent hose to the retainers on the radiator core support.
  2. Raise the vehicle.
    3. Fig 2: View Of Vent Hose At Front Differential Housing
    GM1305845Courtesy of GENERAL MOTORS CORP.
  3. Install the vent hose to the vent tube on the front differential housing.
    4. IMPORTANT: When installing the vent hose for the front differential, loop the vent hose so that foreign objects and debris are restricted from falling into the vent hose and blocking it.
  4. Loop the vent hose about 3 inches and install in the upper retainer.
    5. Fig 3: View Of Engine Protection Shield
    GM1253074Courtesy of GENERAL MOTORS CORP.
  5. Install the EPS, if equipped. Refer to Engine Protection Shield Replacement .
  6. Lower the vehicle.
