Installation Procedure

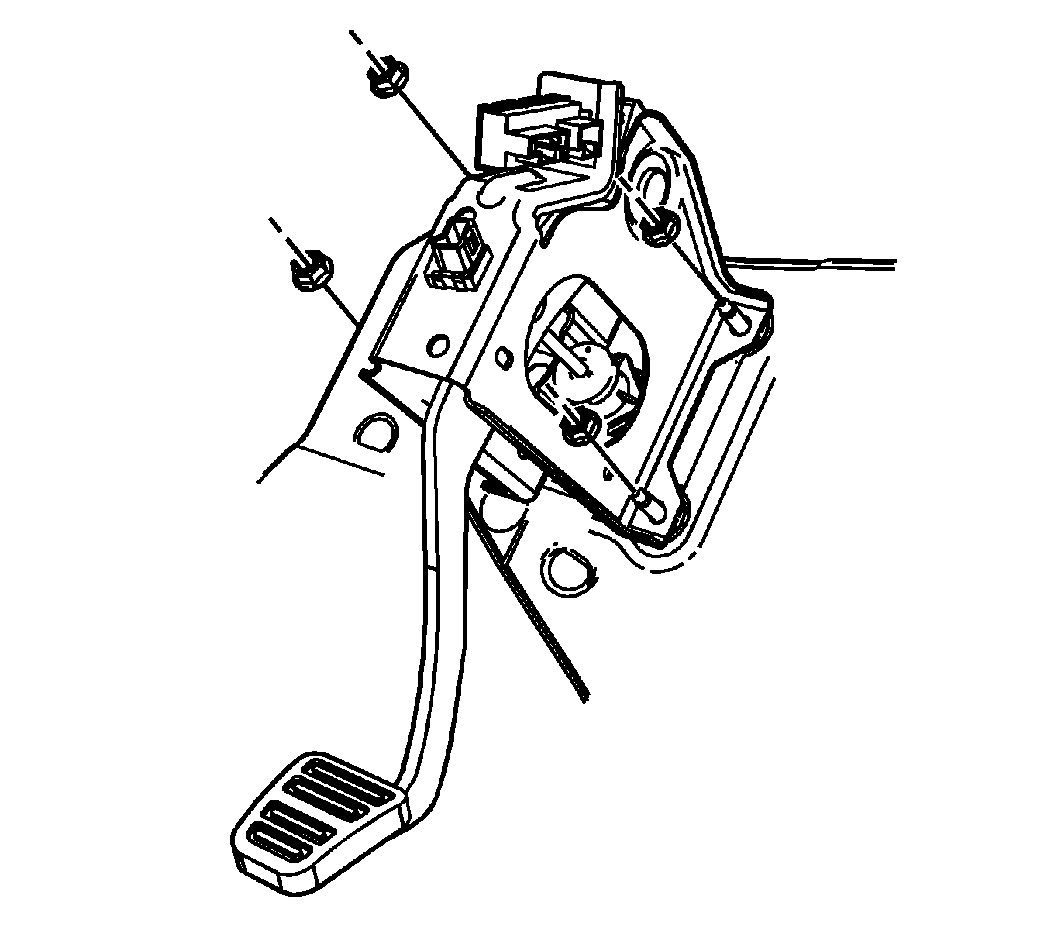

    Fig 1: View Of Clutch Pedal Assembly
    GM1302122Courtesy of GENERAL MOTORS CORP.
  1. Position the clutch pedal assembly over the studs.
    2. NOTE: Refer to Fastener Notice .
  2. Install the clutch pedal assembly nuts.

    Tighten:  Tighten the clutch pedal assembly nuts to 20 N.m (15 lb ft).

    3. Fig 2: Retainer & Clutch Master Cylinder Push Rod
    GM1396381Courtesy of GENERAL MOTORS CORP.
  3. Insert a new retainer (3) into the clutch master cylinder push rod (1).
  4. Push the clutch master cylinder push rod (1) onto the clutch pedal pin to secure.
    5. Fig 3: Clutch Release Switch Electrical Connector
    GM1302119Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connectors (2, 4) to the following components:
    • The clutch pedal position switch (1)
    • The cruise control release switch (3)
  6. Adjust the clutch release switch. Refer to Clutch Pedal Cruise Control Release Switch Adjustment .
  7. Adjust the clutch pedal position switch. Refer to Clutch Pedal Position Switch Replacement .
  8. Check for proper clutch pedal movement and operation.
    9. WARNING: Replacement or reprogramming of the ECM, or replacement of the clutch pedal position sensor (CPPS) or clutch pedal requires that a CPPS learn procedure be performed. Failure to perform the CPPS learn procedure may result in personal injury or damage to the vehicle or its components if the vehicle is in gear and the starter motor is accidentally engaged.
  9. Perform the clutch pedal position sensor learn procedure. Refer to Clutch Pedal Position Sensor Learn .
