Shift Lever Assembly Replacement

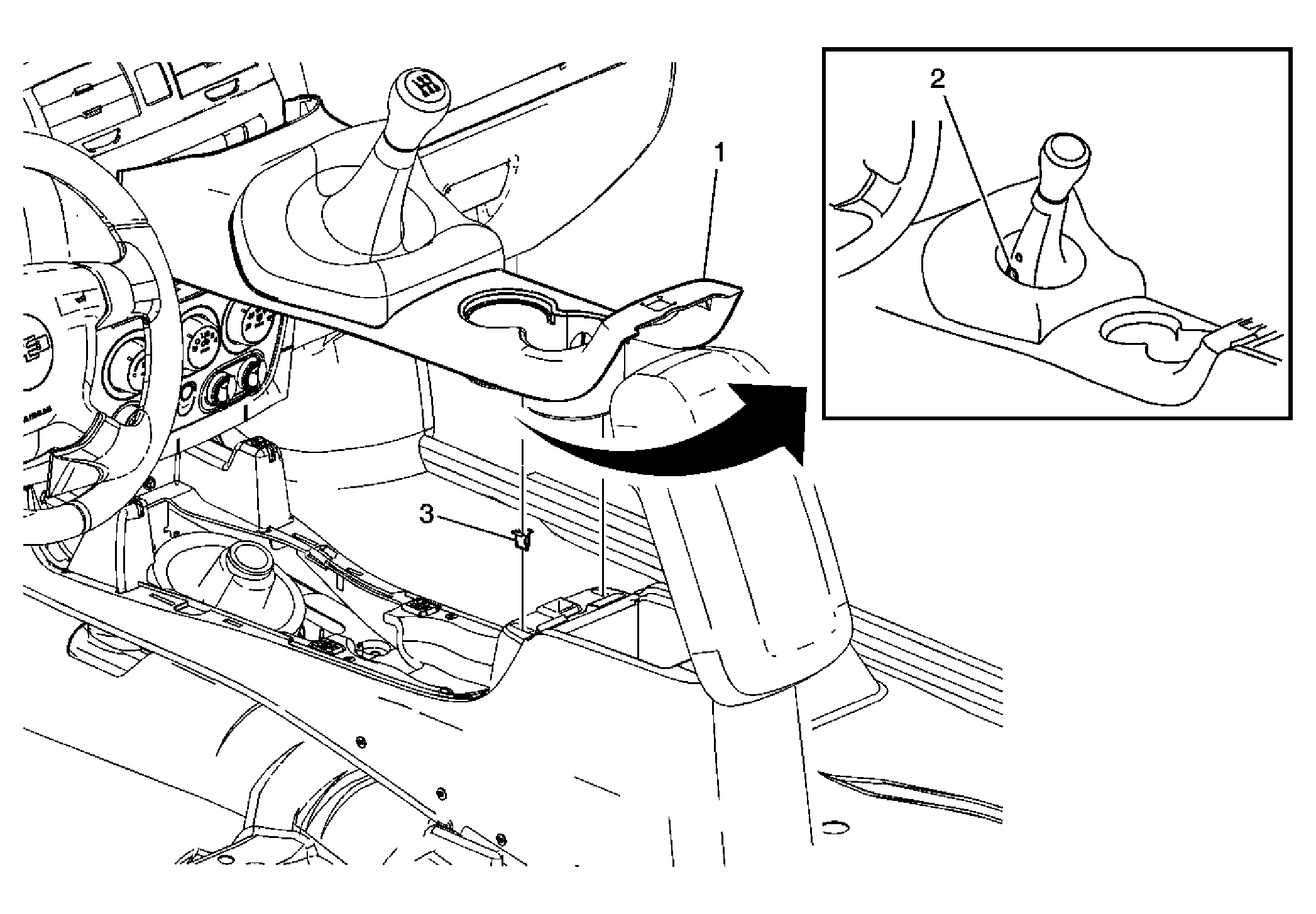

Fig 1: Shift Lever Assembly Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Plate, Console Upper Trim NOTE: Do NOT pull or pry on the shift boot. This action may damage the shift boot retainers. Tip: Shifter bezel and console upper trim plate must be removed as one assembly. For removal of the bezel from the trim plate, refer to Console Shift Lever Bezel Replacement (Automatic Transmission) or Console Shift Lever Bezel Replacement (Manual Transmission) .
2	Screw, Manual Shift Handle Tip: Lift the console upper trim plate enough to access the shift handle retaining screw. Apply threadlock GM P/N 1234593 (Canadian P/N 10953488) to the shift lever set screw threads before reinstalling. Tighten: 25 N.m 18 lb ft)
3	Retainer, Trim Clip (Qty 6)
