Object Detection Schematics

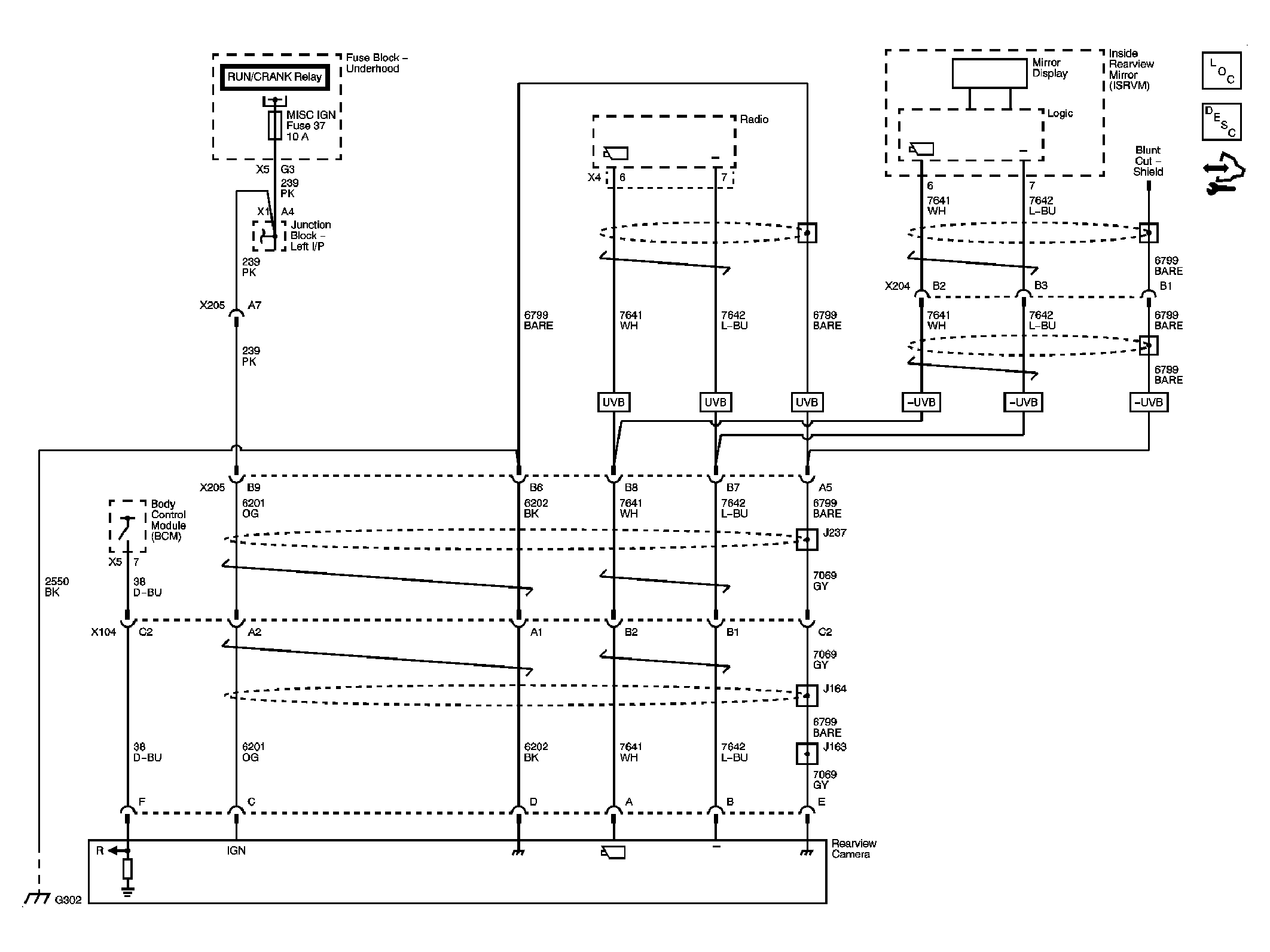

Fig 1: Rear Vision Camera (UVC)
GM2097251Courtesy of GENERAL MOTORS CORP.
