Body Control System Schematics

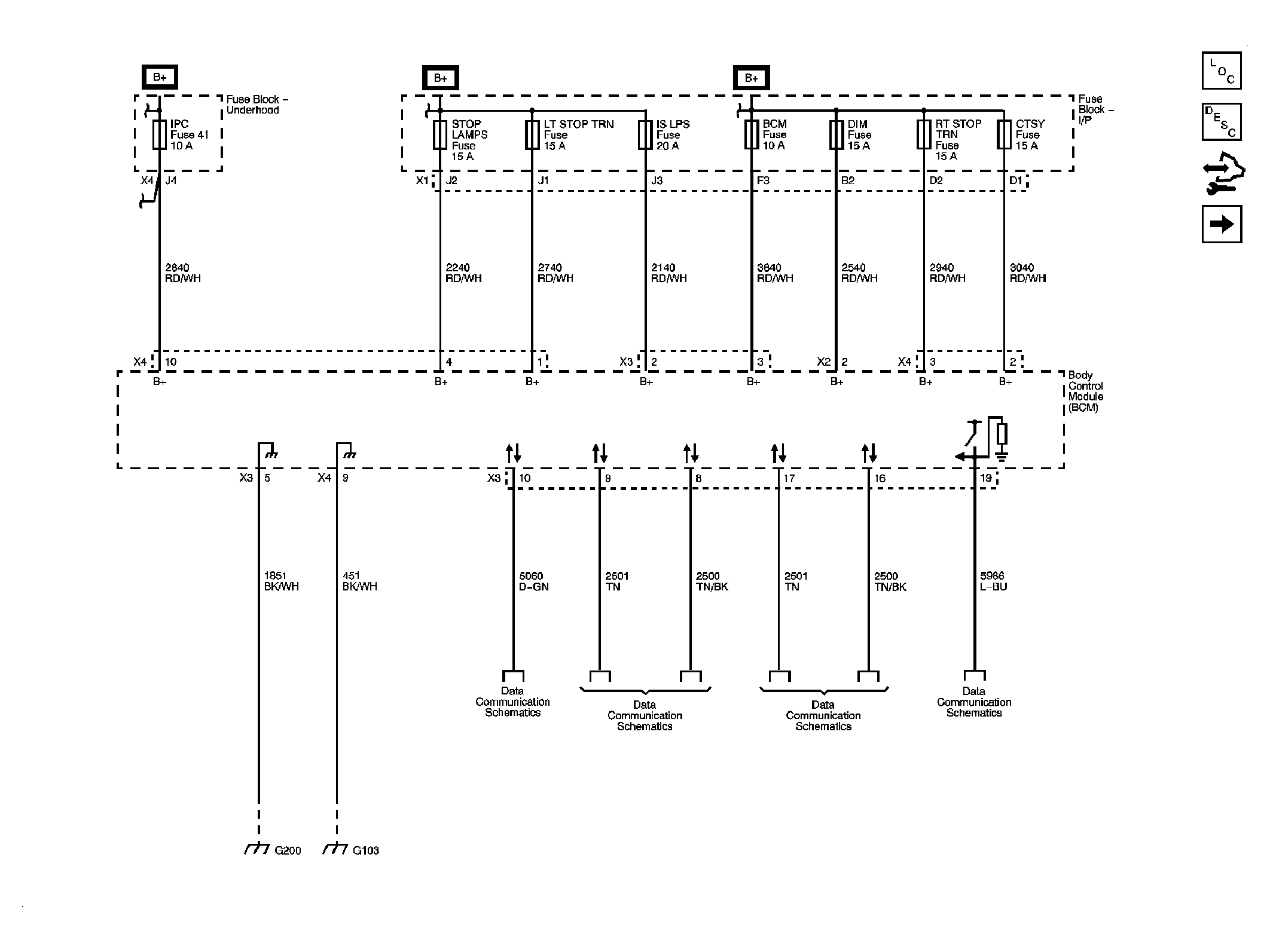

Fig 1: Module Power, Ground & Serial Data References

Courtesy of GENERAL MOTORS CORP.

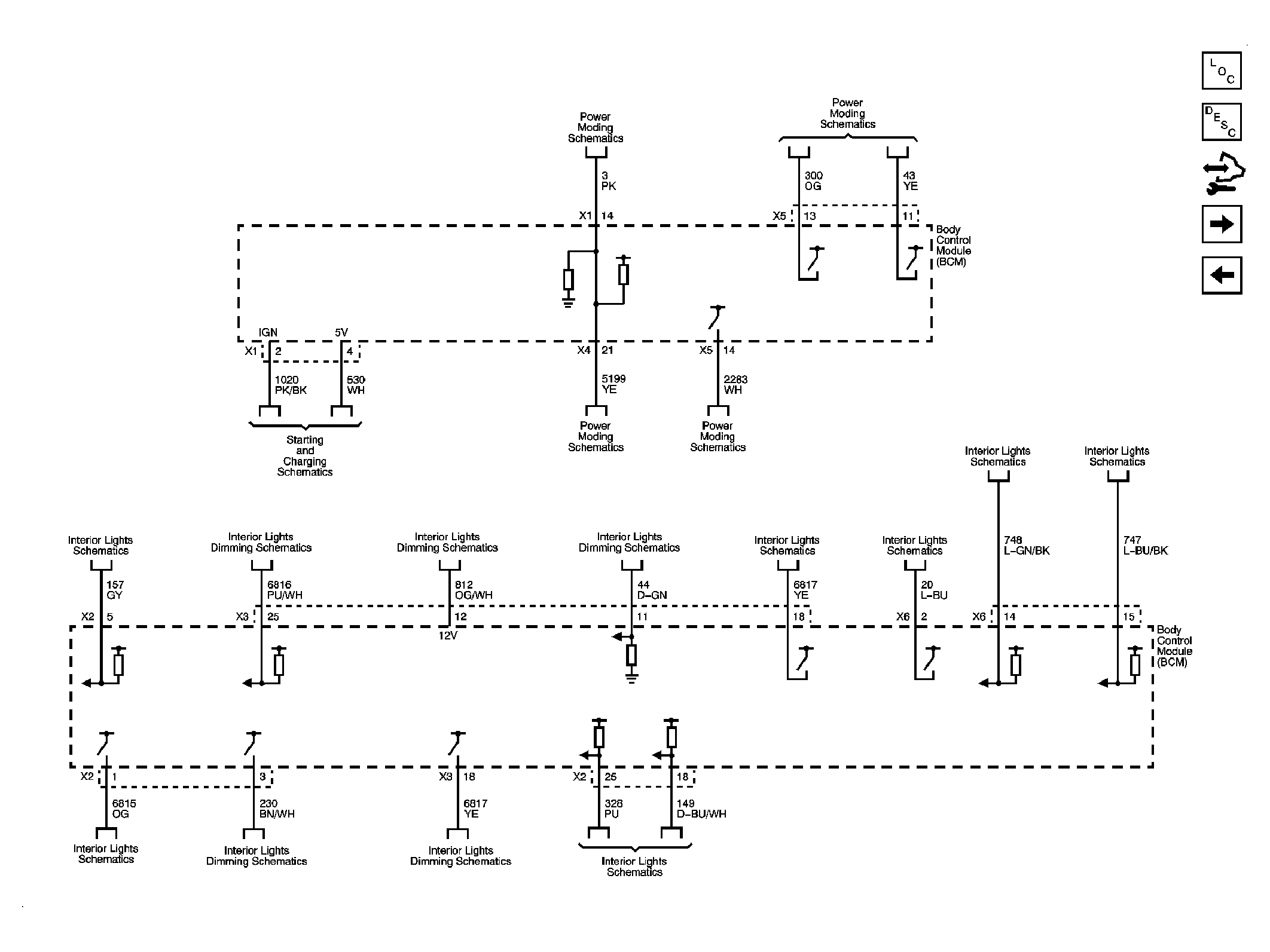

Fig 2: Power Moding & Interior Light References

Courtesy of GENERAL MOTORS CORP.

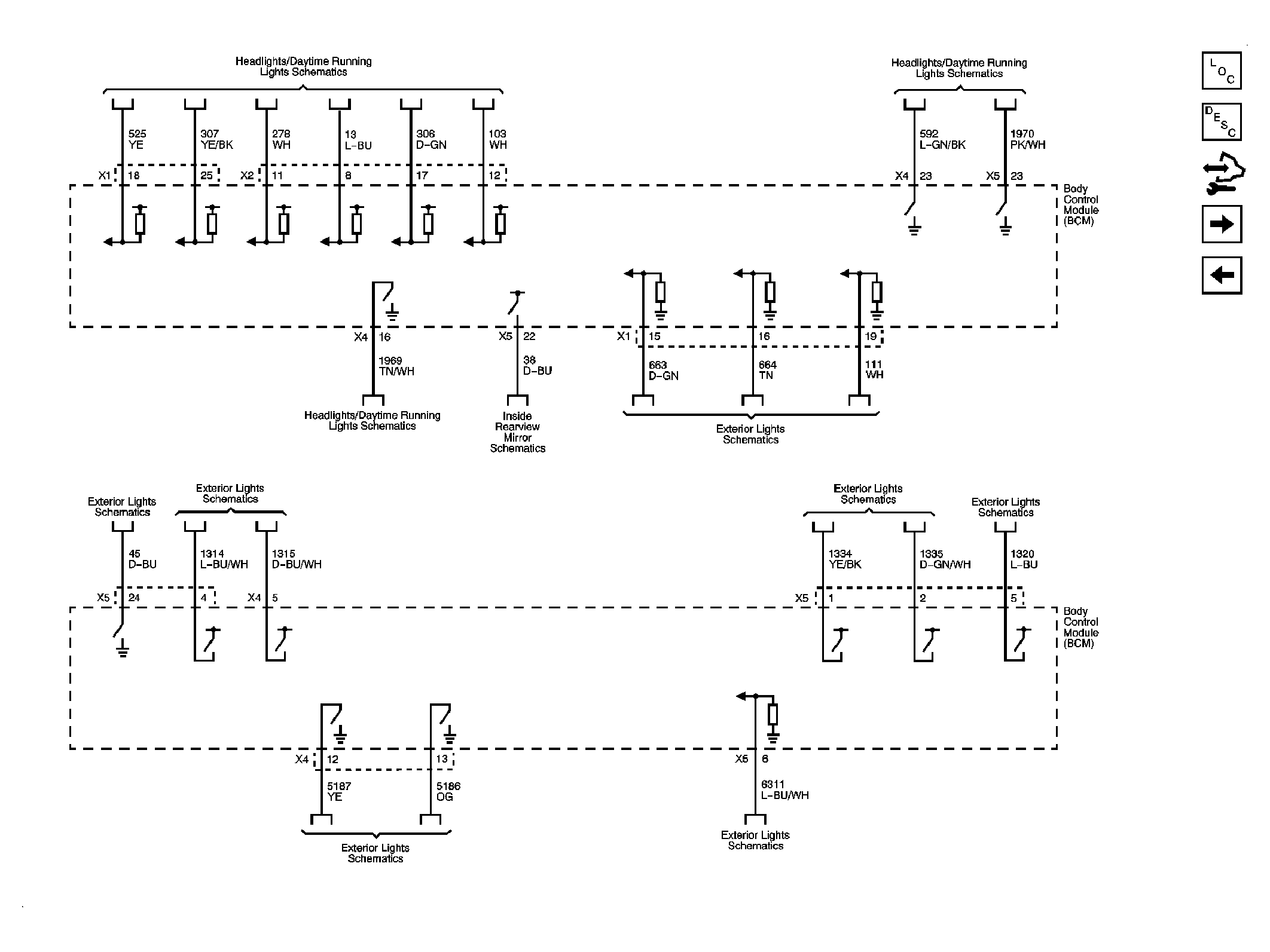

Fig 3: Exterior Light References

Courtesy of GENERAL MOTORS CORP.

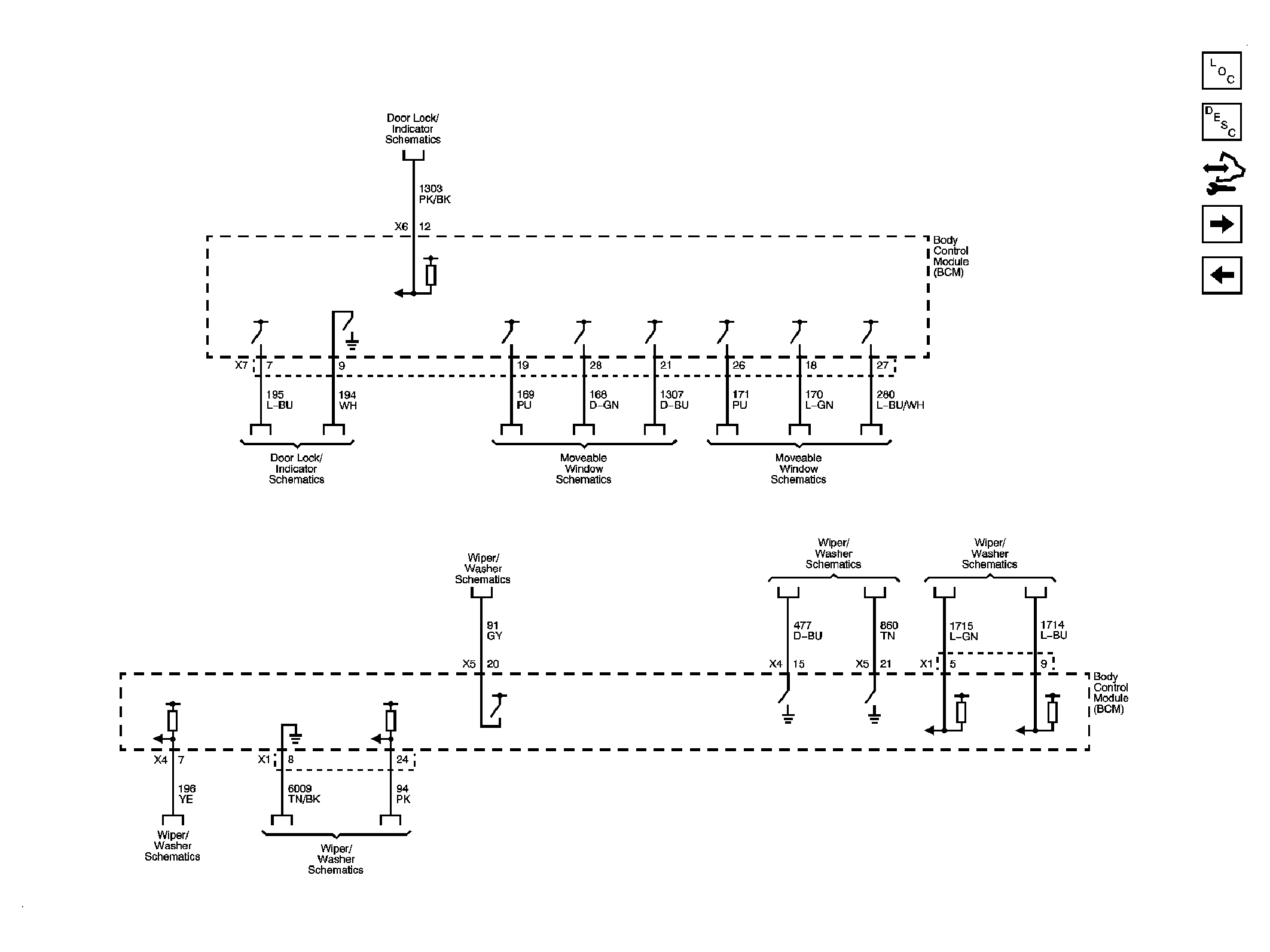

Fig 4: Vehicle Access & Wiper References

Courtesy of GENERAL MOTORS CORP.

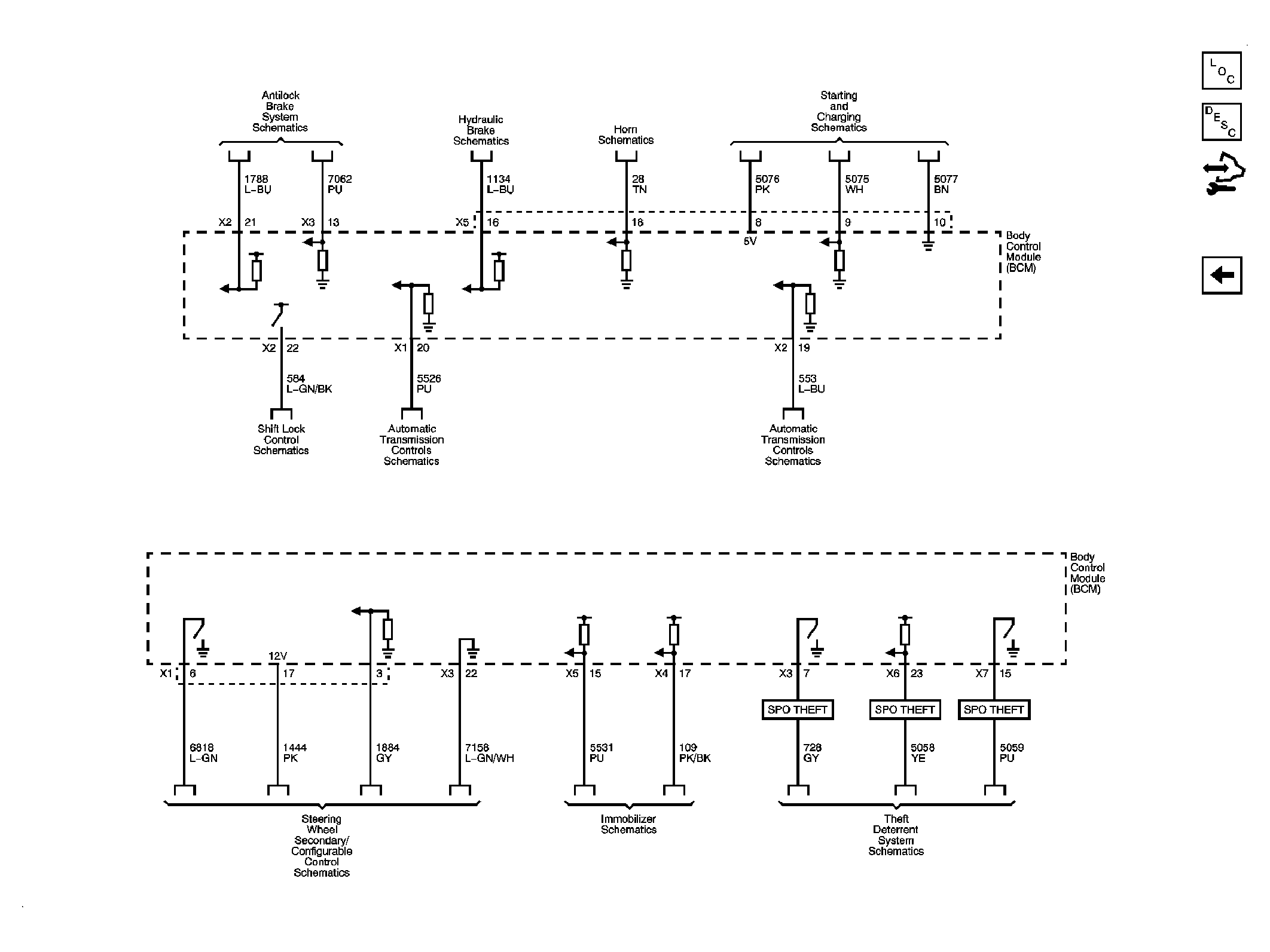

Fig 5: Brake, Horn, Transmission, Theft & Secondary/Configurable References

Courtesy of GENERAL MOTORS CORP.
