Steering Wheel Secondary/Configurable Control Schematics

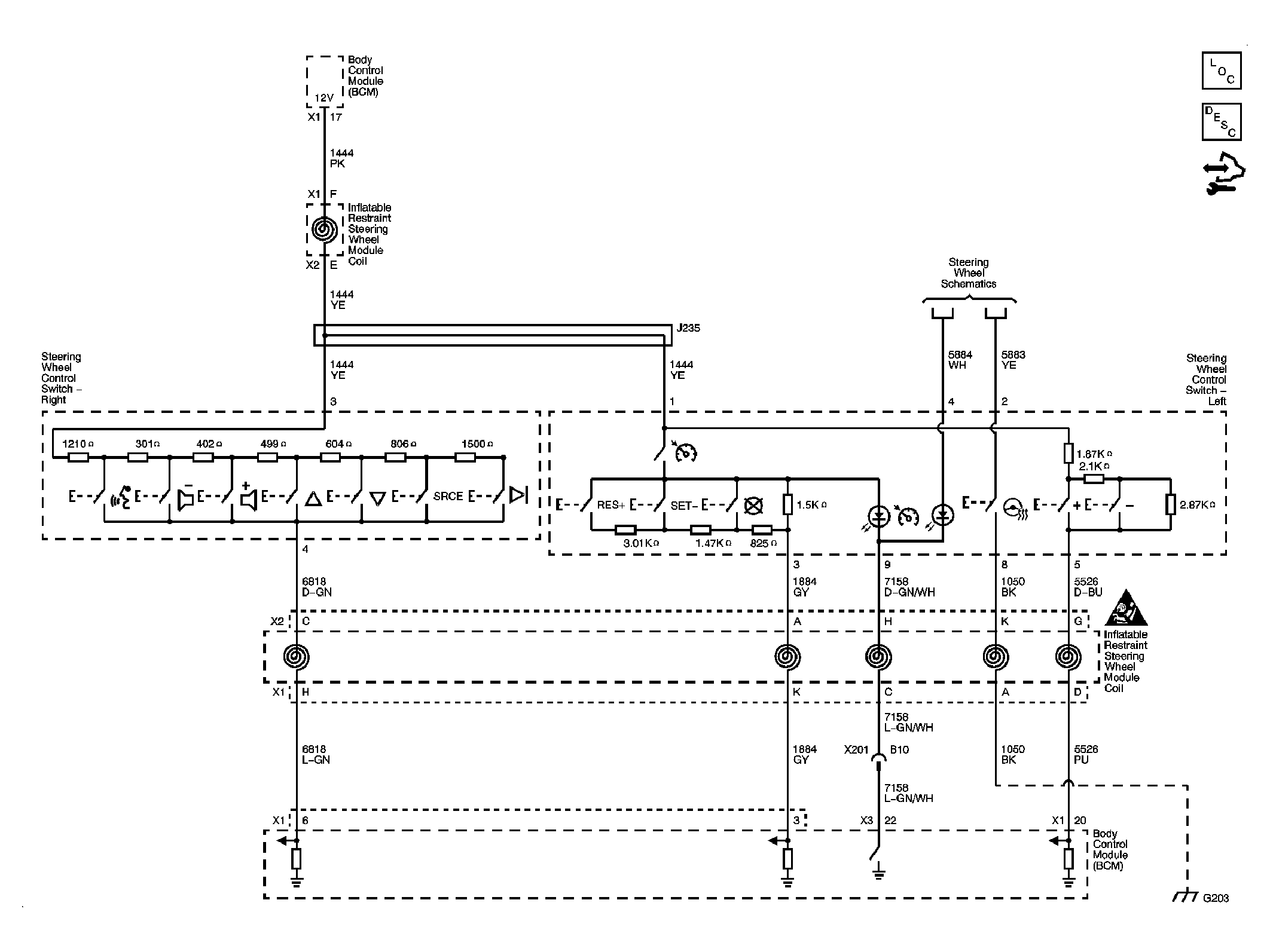

Fig 1: Steering Wheel Secondary/Configurable Control

Courtesy of GENERAL MOTORS CORP.

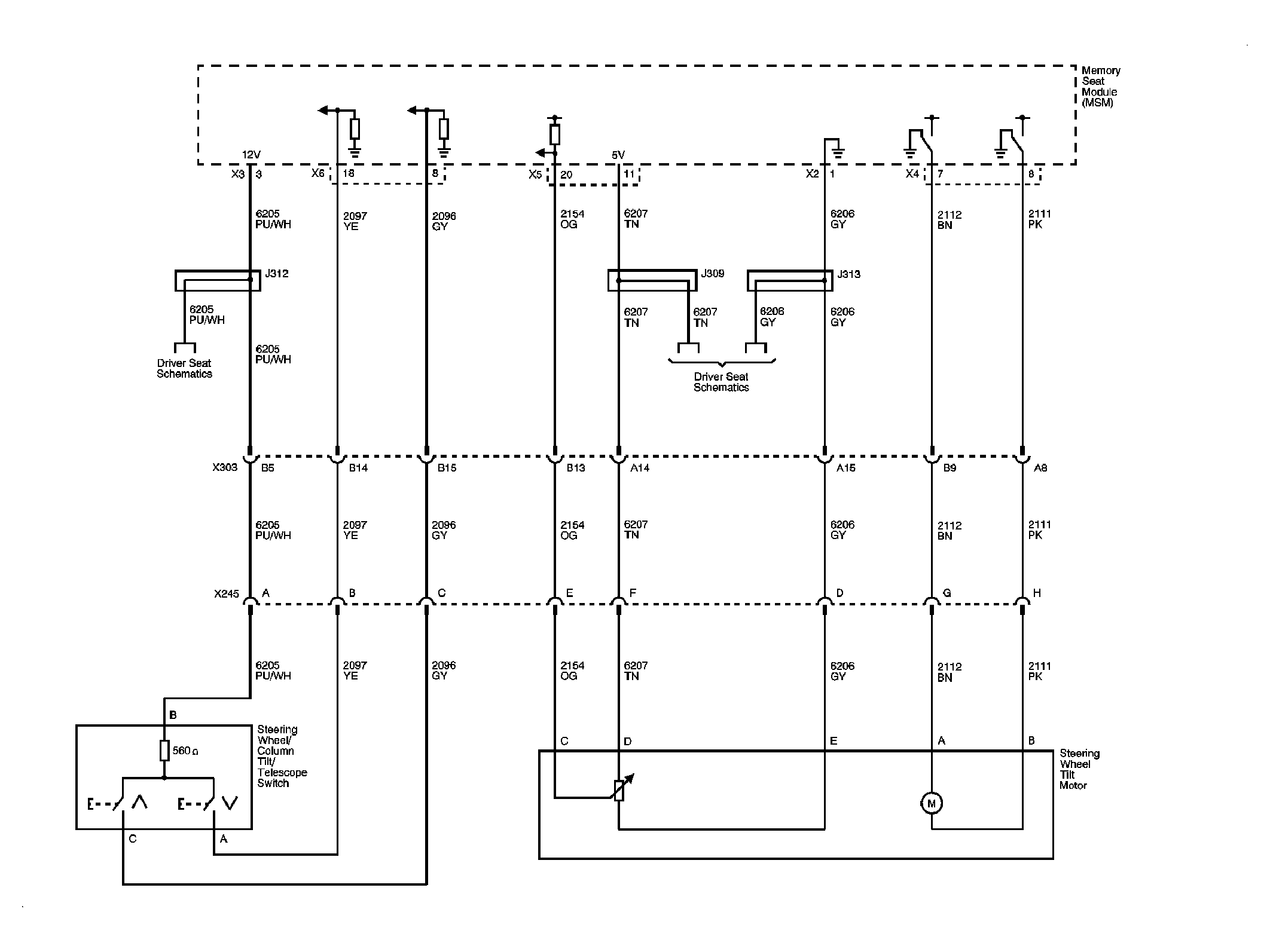

Fig 2: Power Tile and Telescope Steering Column

Courtesy of GENERAL MOTORS CORP.

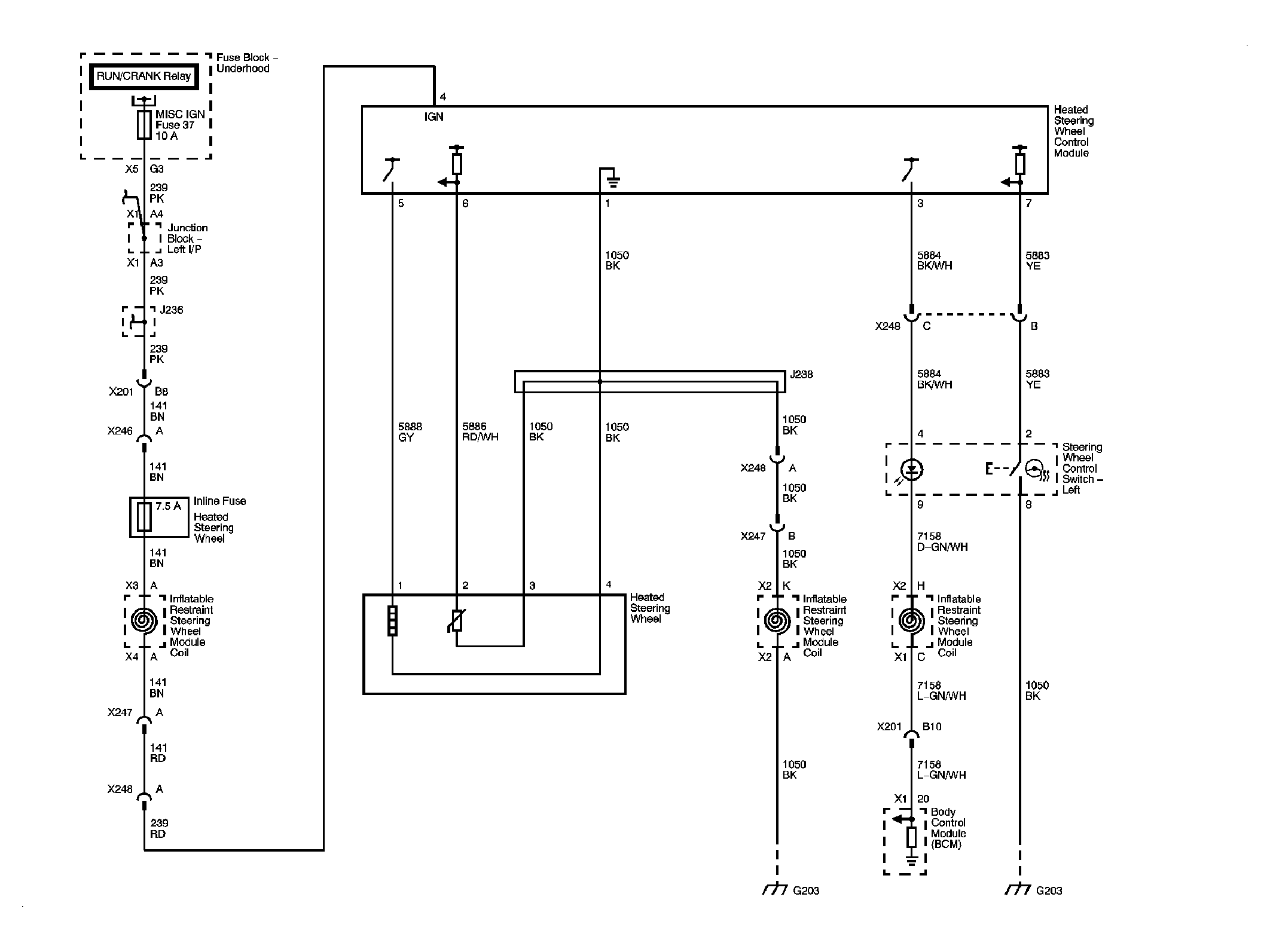

Fig 3: Heated Steering Wheel

Courtesy of GENERAL MOTORS CORP.
