Door Control Module Schematics

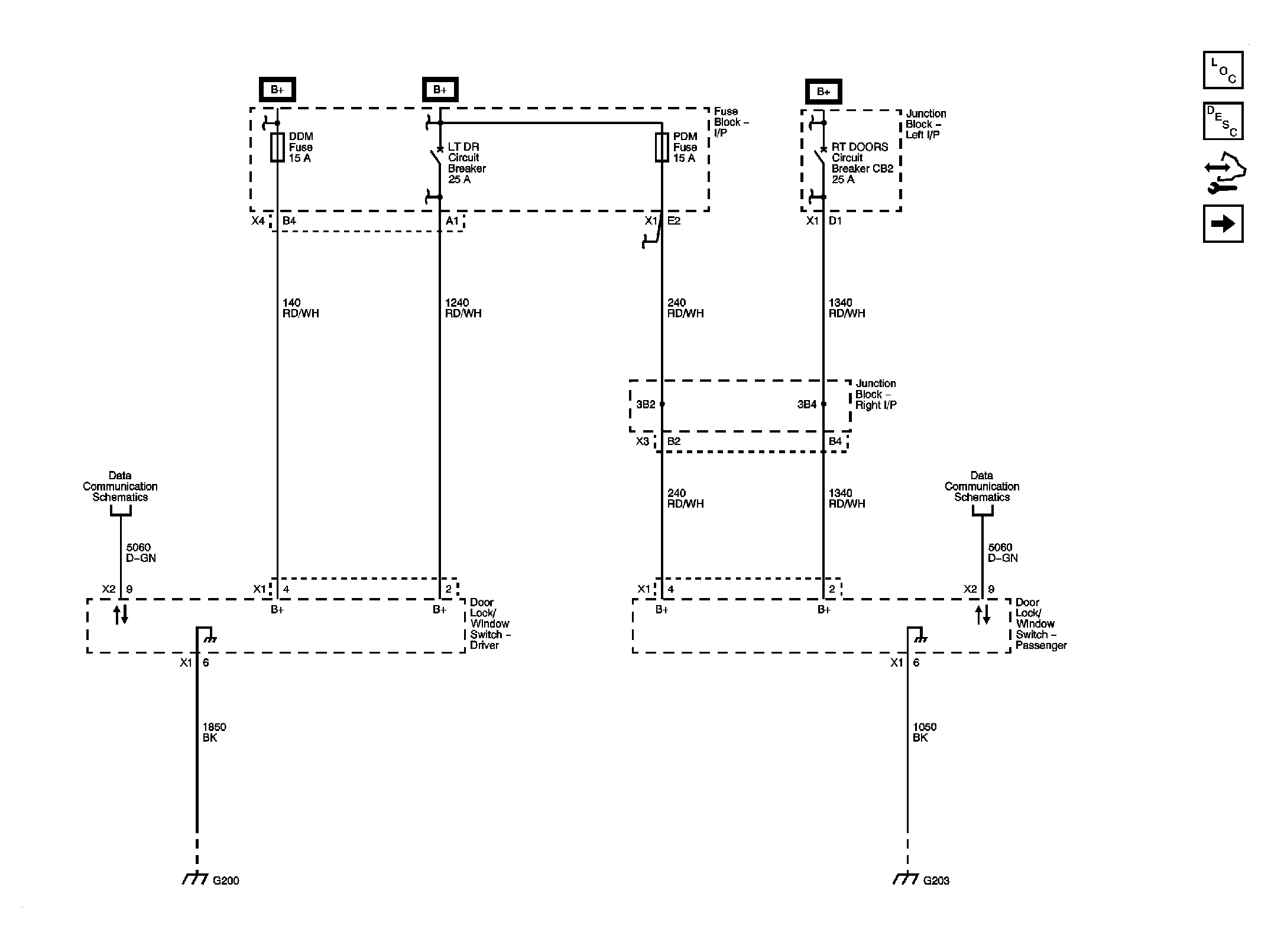

Fig 1: Power, Ground & Serial Data

Courtesy of GENERAL MOTORS CORP.

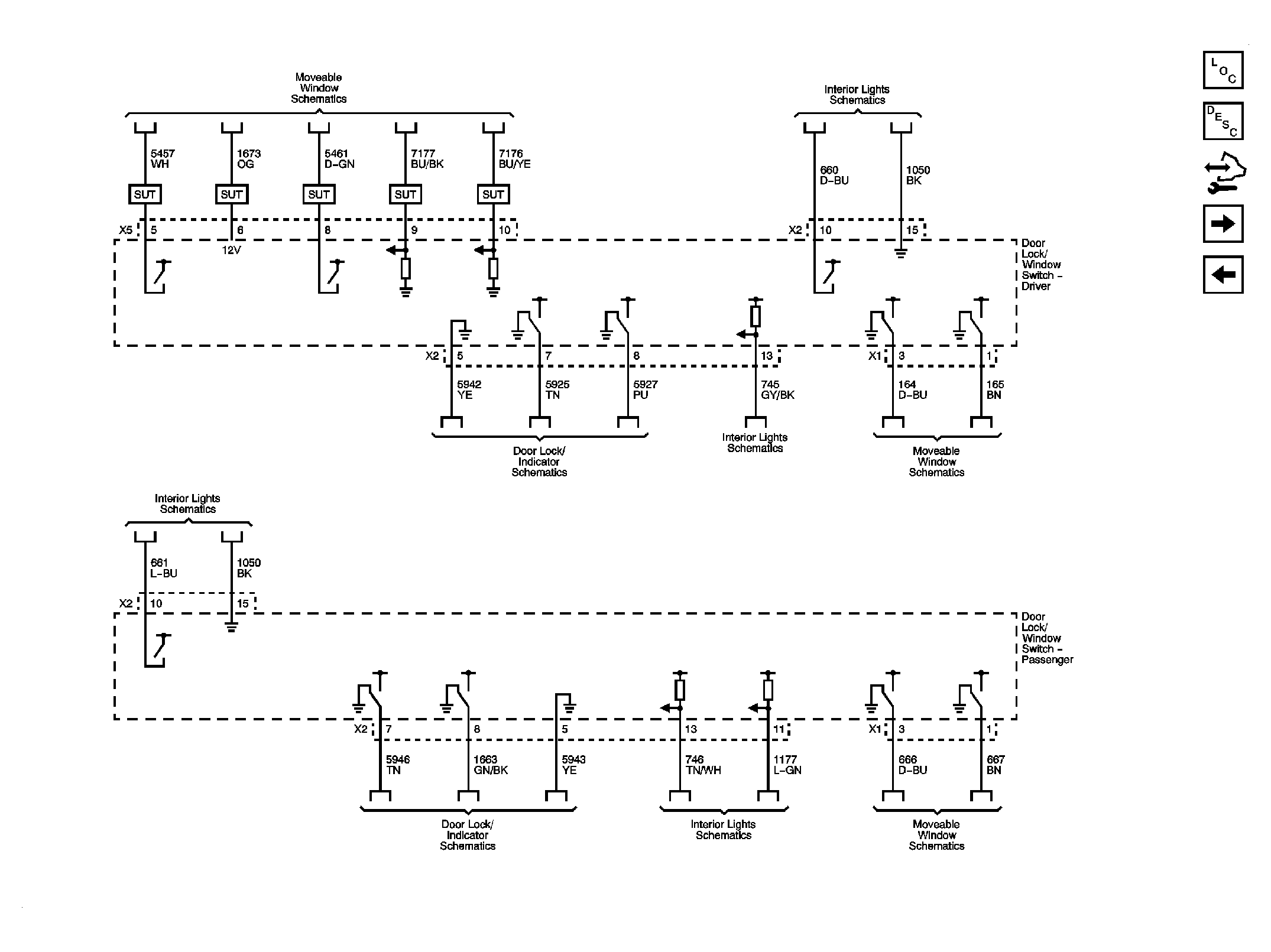

Fig 2: Exterior Lights, Interior Lights, Door Lock & Power Window References

Courtesy of GENERAL MOTORS CORP.

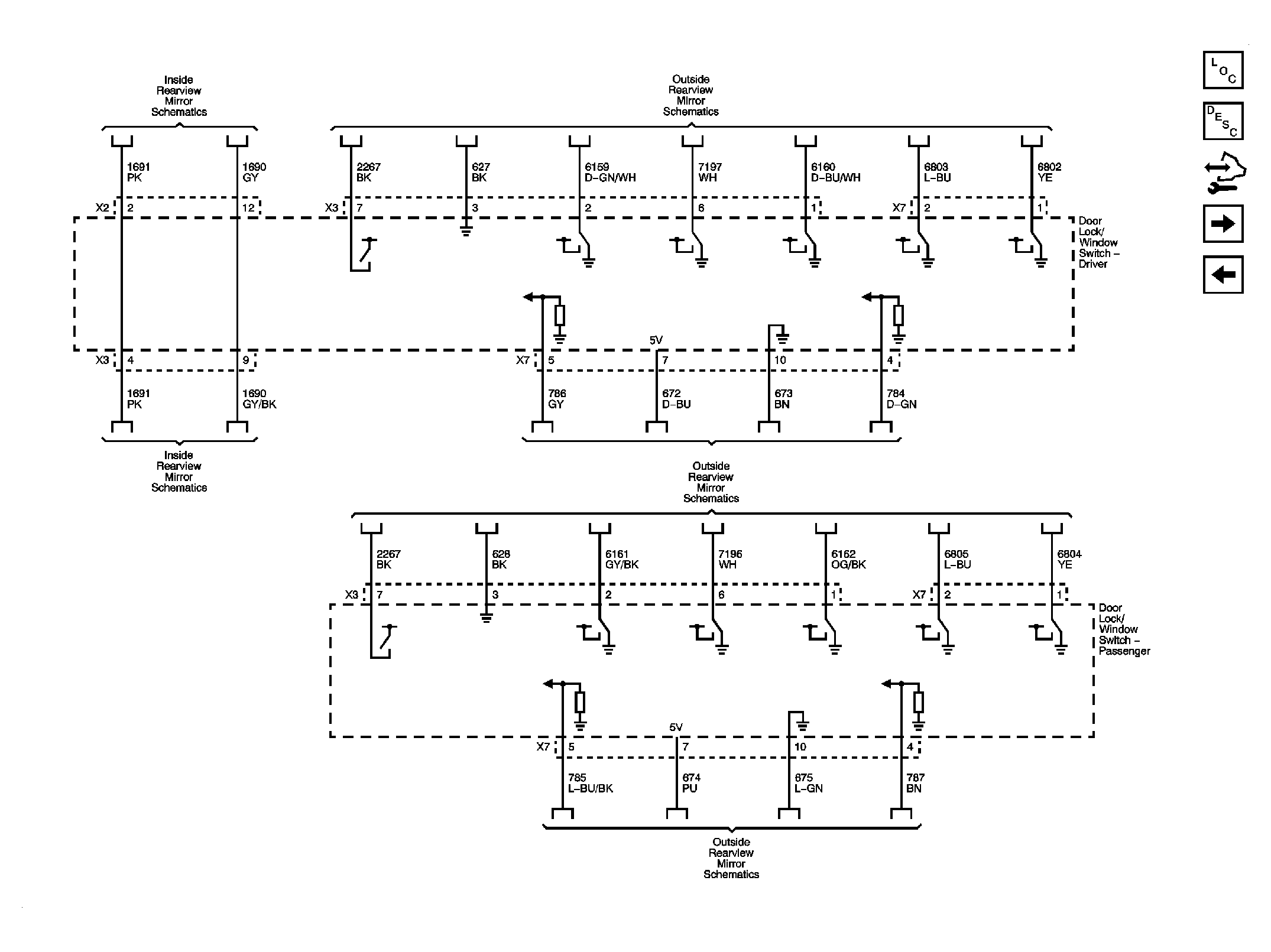

Fig 3: Inside & Outside Rearview Mirror References

Courtesy of GENERAL MOTORS CORP.

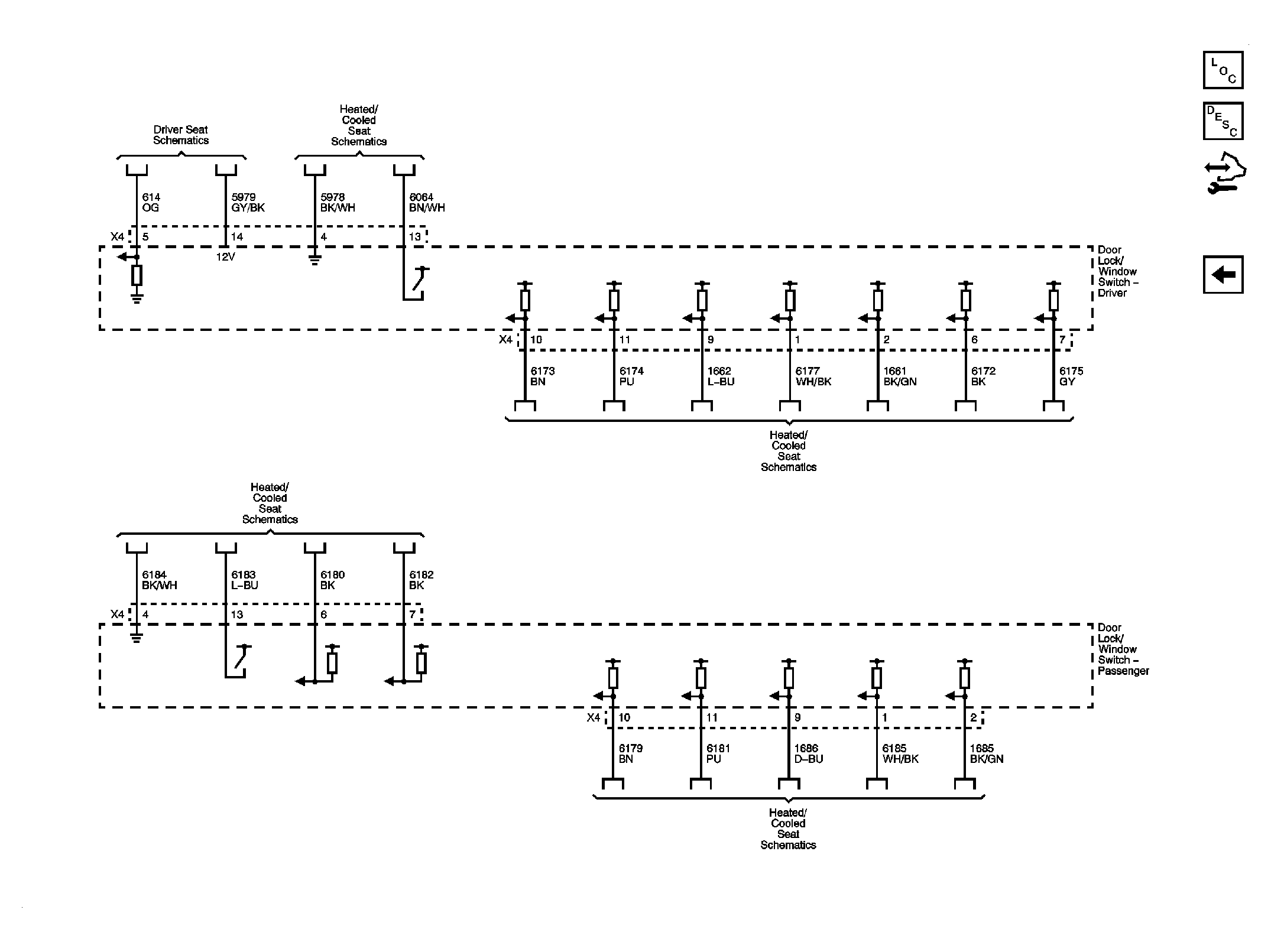

Fig 4: Seat References

Courtesy of GENERAL MOTORS CORP.
