Remote Control Door Lock Receiver Antenna Replacement

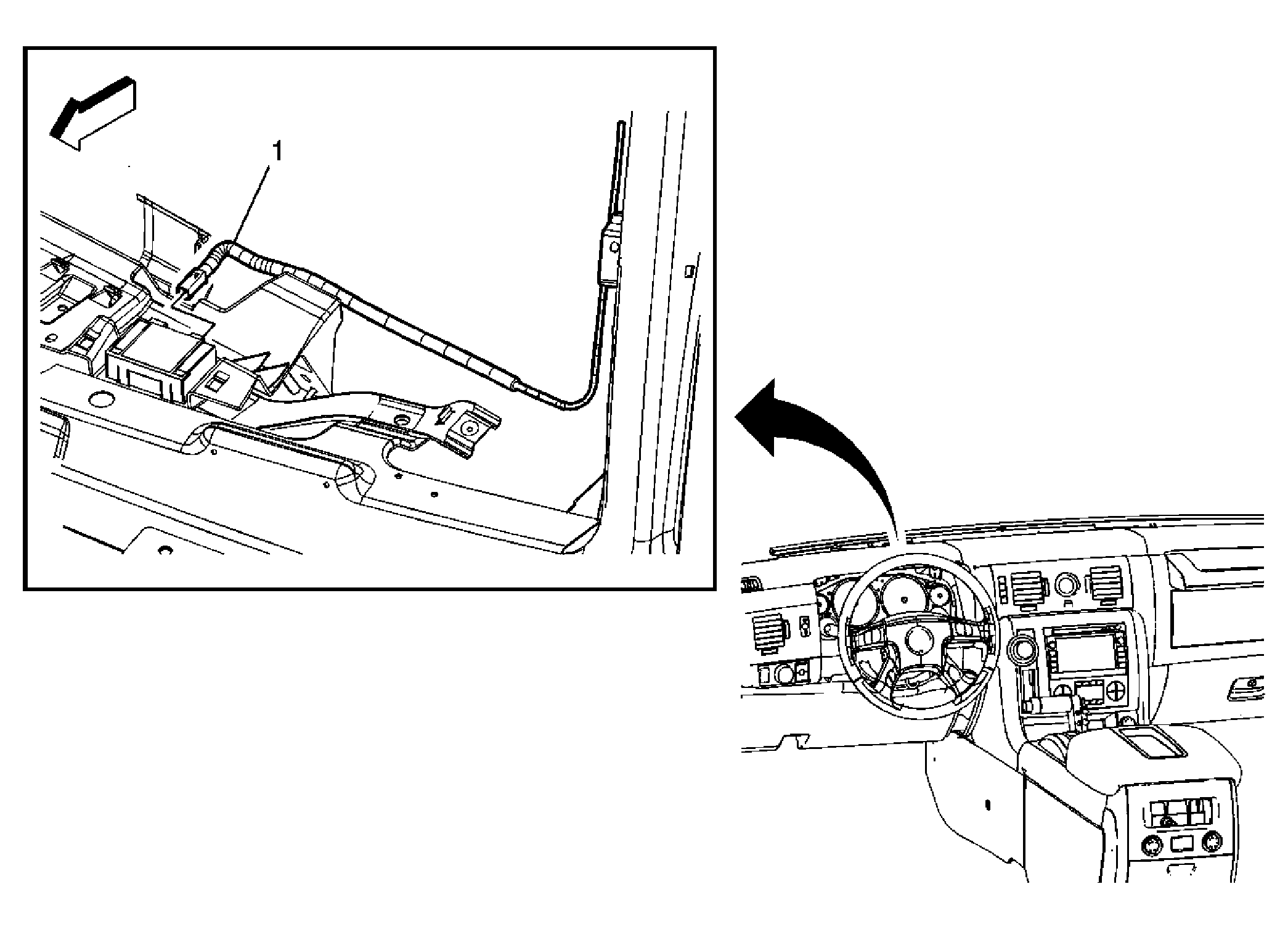

Fig 1: Identifying Remote Control Door Lock Receiver Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement .
1	Remote Control Door Lock Receiver Antenna Procedure Disconnect the antenna from the module. Connect mechanics wire to antenna before removal. Pull antenna and mechanics wire through IP assembly. Connect new antenna to mechanics wire using wire to guide antenna to ensure proper routing through IP assembly.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement .

Remote Control Door Lock Receiver Antenna

Procedure

Disconnect the antenna from the module.
Connect mechanics wire to antenna before removal.
Pull antenna and mechanics wire through IP assembly.
Connect new antenna to mechanics wire using wire to guide antenna to ensure proper routing through IP assembly.
